Front Speed Sensor
REMOVALHINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER LINER LH
4. REMOVE FRONT SPEED SENSOR LH

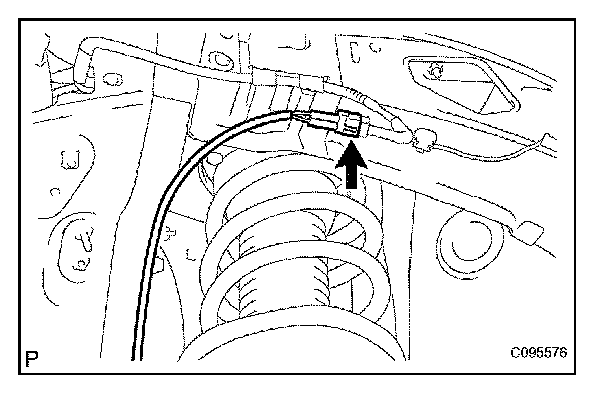

a. Detach the clamp and disconnect the connector.

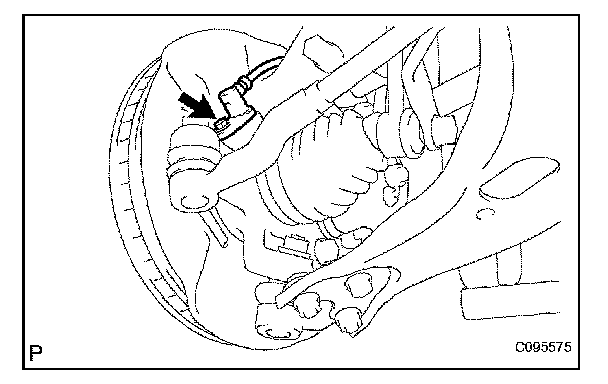

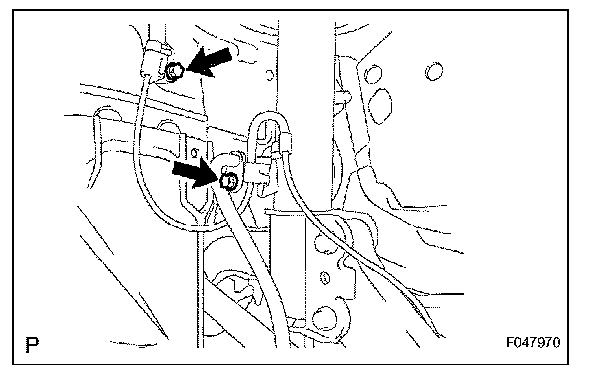

b. Remove the bolts and separate the speed sensor from the body.
c. Remove the bolt and speed sensor.
NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.
INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. INSTALL FRONT SPEED SENSOR LH

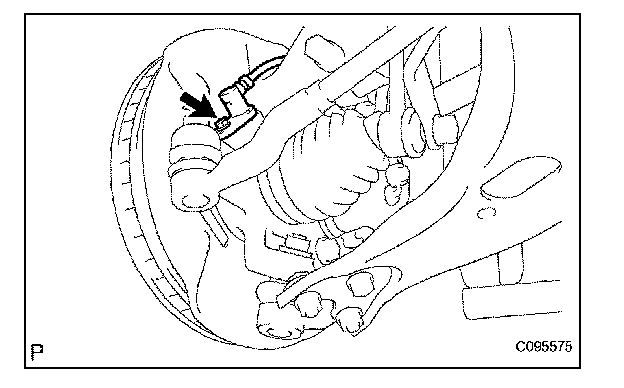

a. Install the speed sensor with the bolt.
Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

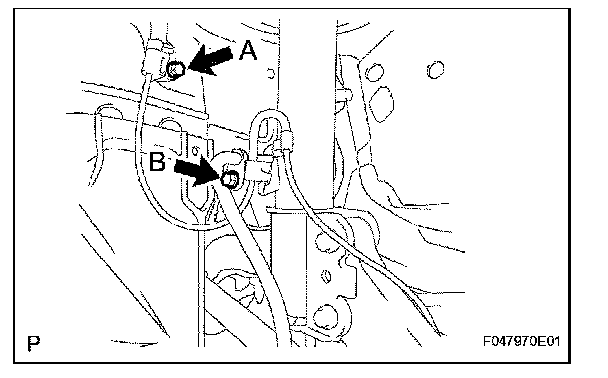

b. Install the speed sensor to the body with the 2 bolts.
Torque:
9.0 N.m (92 kgf.cm, 80in.lbf) for bolt A
29 N.m (296 kgf.cm, 21 ft.lbf) for bolt B

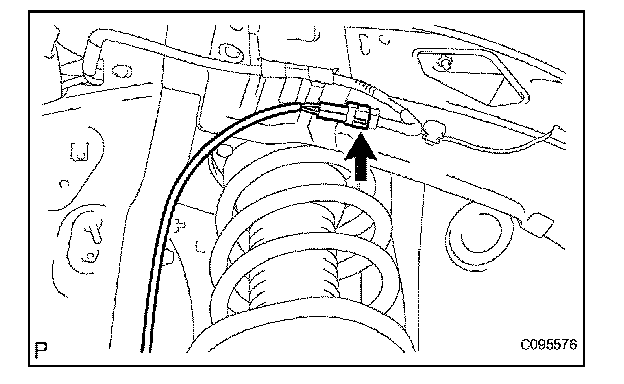

c. Connect the connector and attach the clamp.
2. INSTALL FRONT FENDER LINER LH
3. INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
6. CHECK ABS SPEED SENSOR SIGNAL
a. Check the ABS speed sensor signal
