Remote Switch: Service and Repair

Steering Pad Switch:

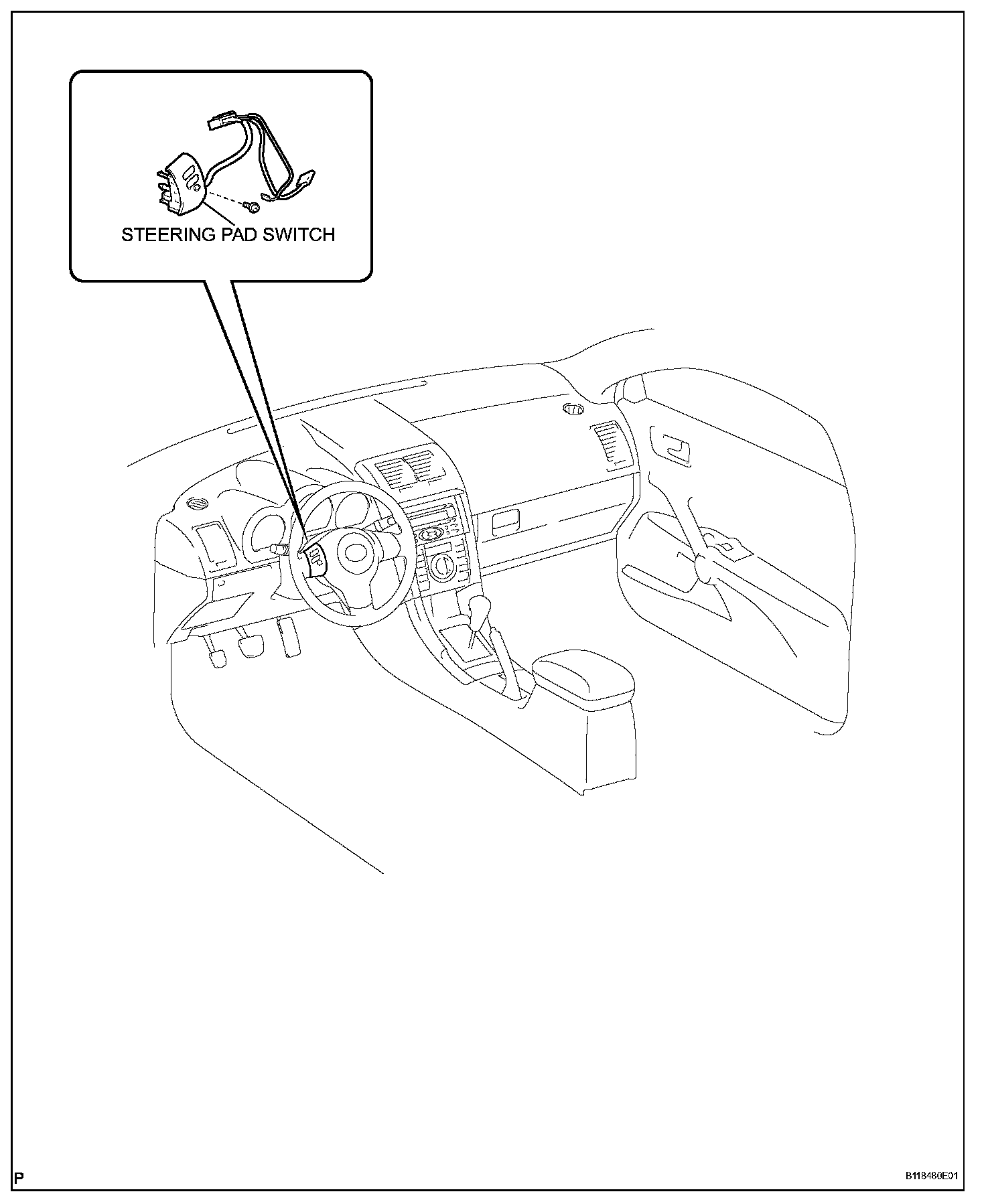

STEERING PAD SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STEERING PAD ASSEMBLY

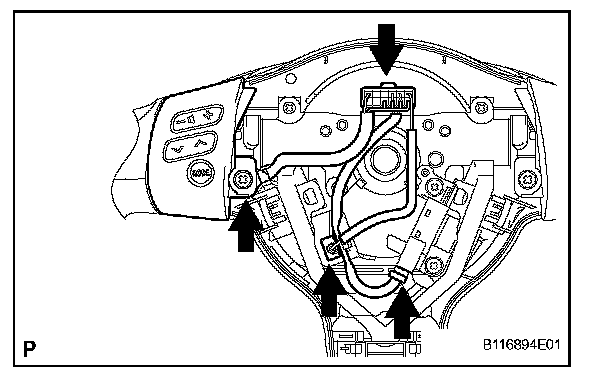

3. REMOVE STEERING PAD SWITCH




a. Disconnect all connectors.
b. Remove the screw.
c. Remove the steering pad switch.

INSTALLATION

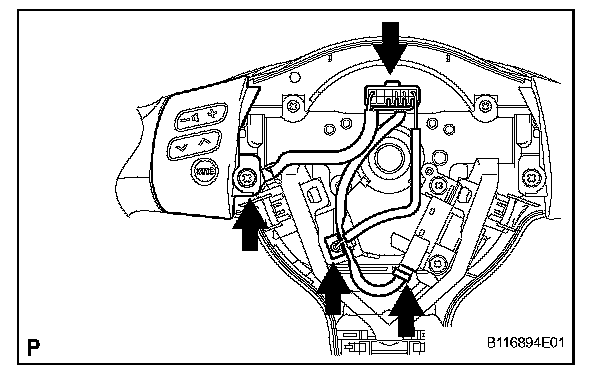

1. INSTALL STEERING PAD SWITCH




a. Install the steering pad switch.
b. Install the screw.
c. Connect all connectors.

2. INSTALL STEERING PAD ASSEMBLY
3. INSPECT STEERING PAD ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
