Seat Belt Systems: Service and Repair

Front Seat Inner Belt Assembly:

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT SEAT ASSEMBLY LH

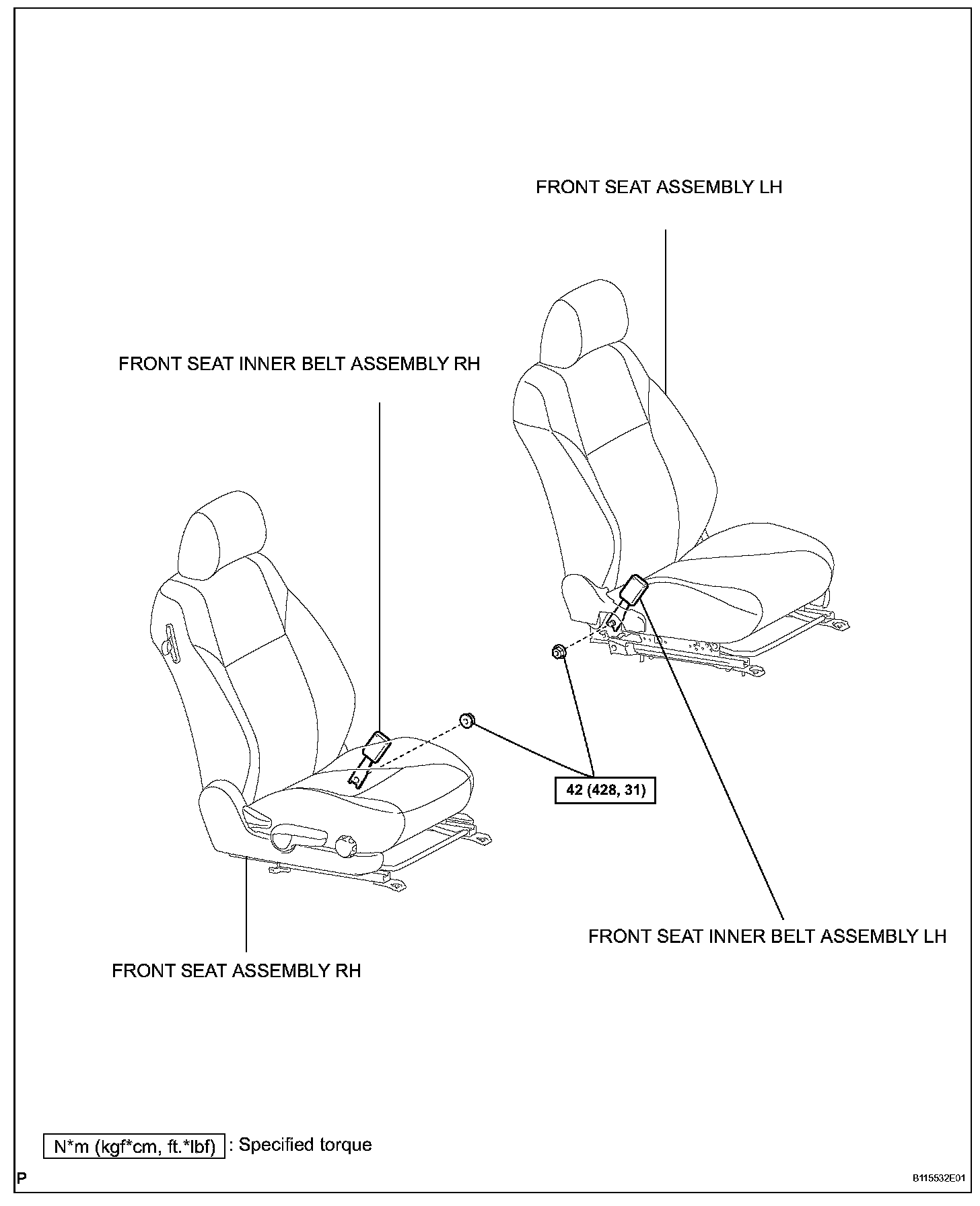

3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH
a. Disconnect the 3 connectors and then detach the 5 claws.
b. Remove the nut and inner belt.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
a. Install the inner belt with the nut.
Torque:42 N.m (428 kgf.cm, 31 ft.lbf)

b. Attach the 5 claws.
c. Connect the 3 connectors.

2. INSTALL FRONT SEAT ASSEMBLY LH
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
