Driver Side Knee Airbag Assembly

Driver Side Knee Airbag Assembly:

DRIVER SIDE KNEE AIRBAG ASSEMBLY

REMOVAL

CAUTION: Refer to Restraint Systems; Service Precautions before servicing the SRS system or related components.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

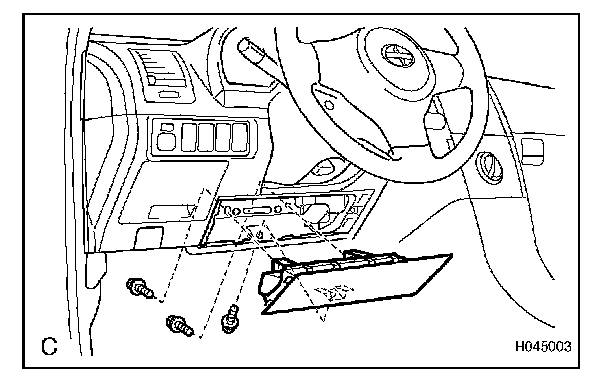

2. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY




a. Remove the 4 bolts and driver side knee airbag.
b. Disconnect the connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

INSTALLATION

CAUTION: Refer to Restraint Systems; Service Precautions before servicing the SRS system or related components.

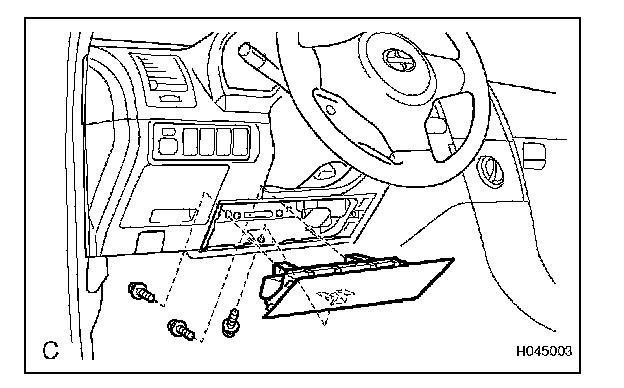

1. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY




a. Connect the connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

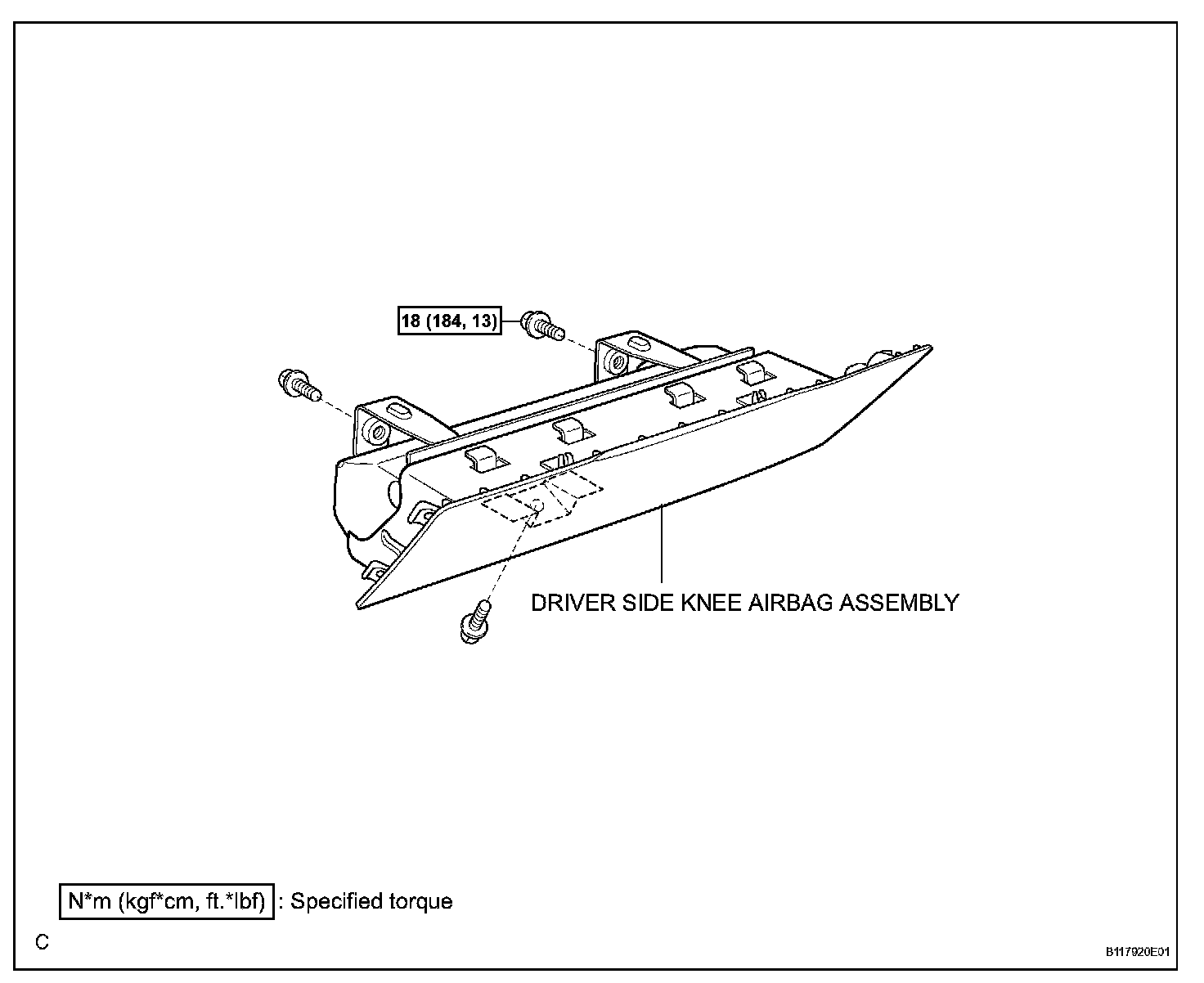

b. Install the front passenger side knee airbag with the 3 bolts.

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

4. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
