CURTAIN SHIELD AIRBAG ASSEMBLY

REMOVAL

CAUTION: Refer to Restraint Systems; Service Precautions before servicing the SRS system or related components.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOF HEADLINING ASSEMBLY
a. Remove the roof headlining.

3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH




a. Disconnect the connector.

NOTE: When handling the airbag connector, take not to damage the airbag wire harness.

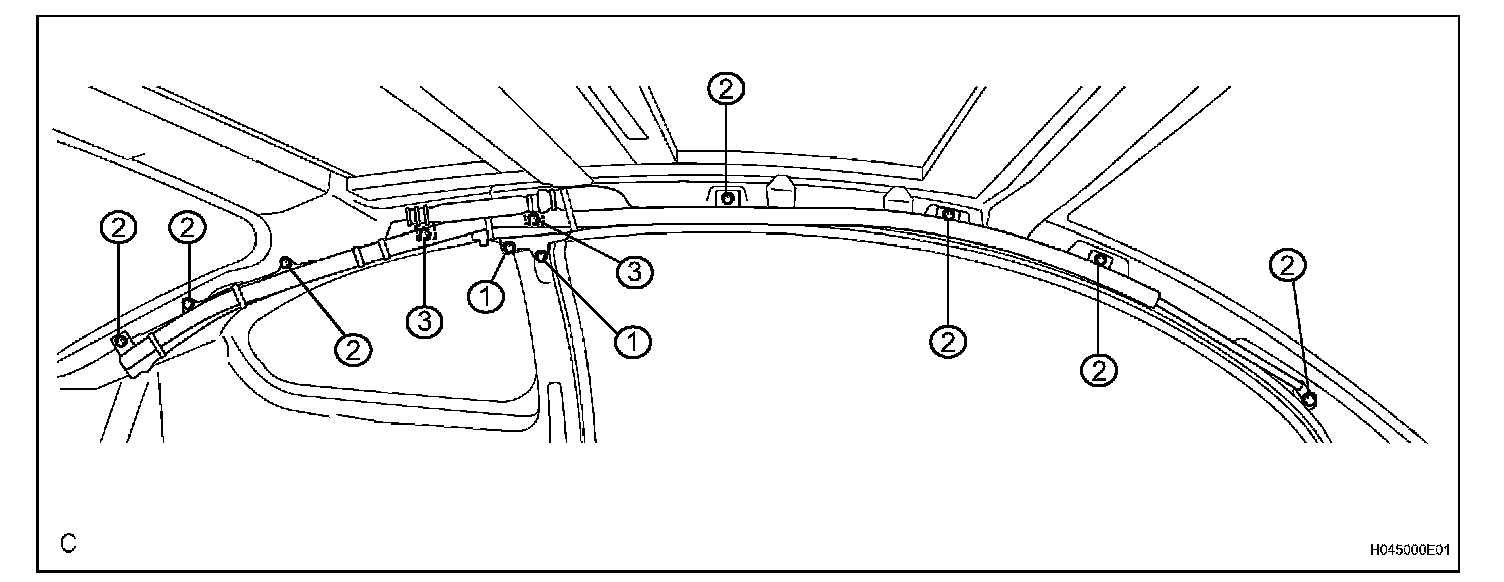

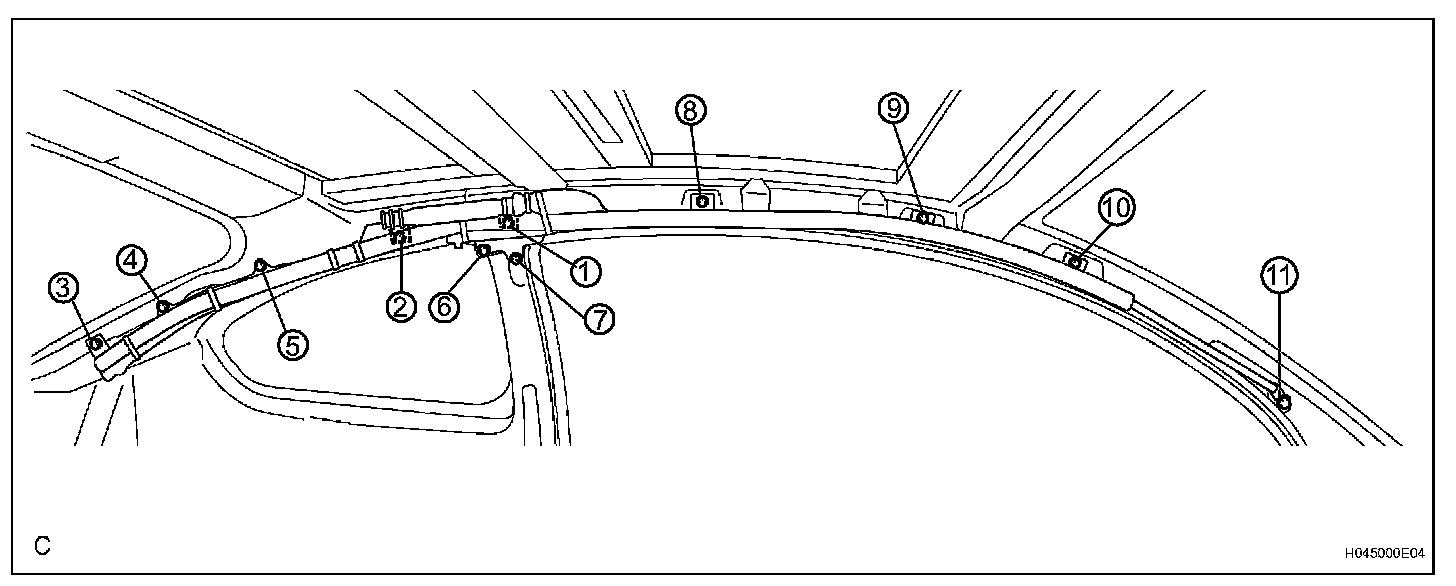

b. Remove the 11 bolts and the curtain shield assembly.

INSTALLATION

CAUTION: Refer to Restraint Systems; Service Precautions before servicing the SRS system or related components.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

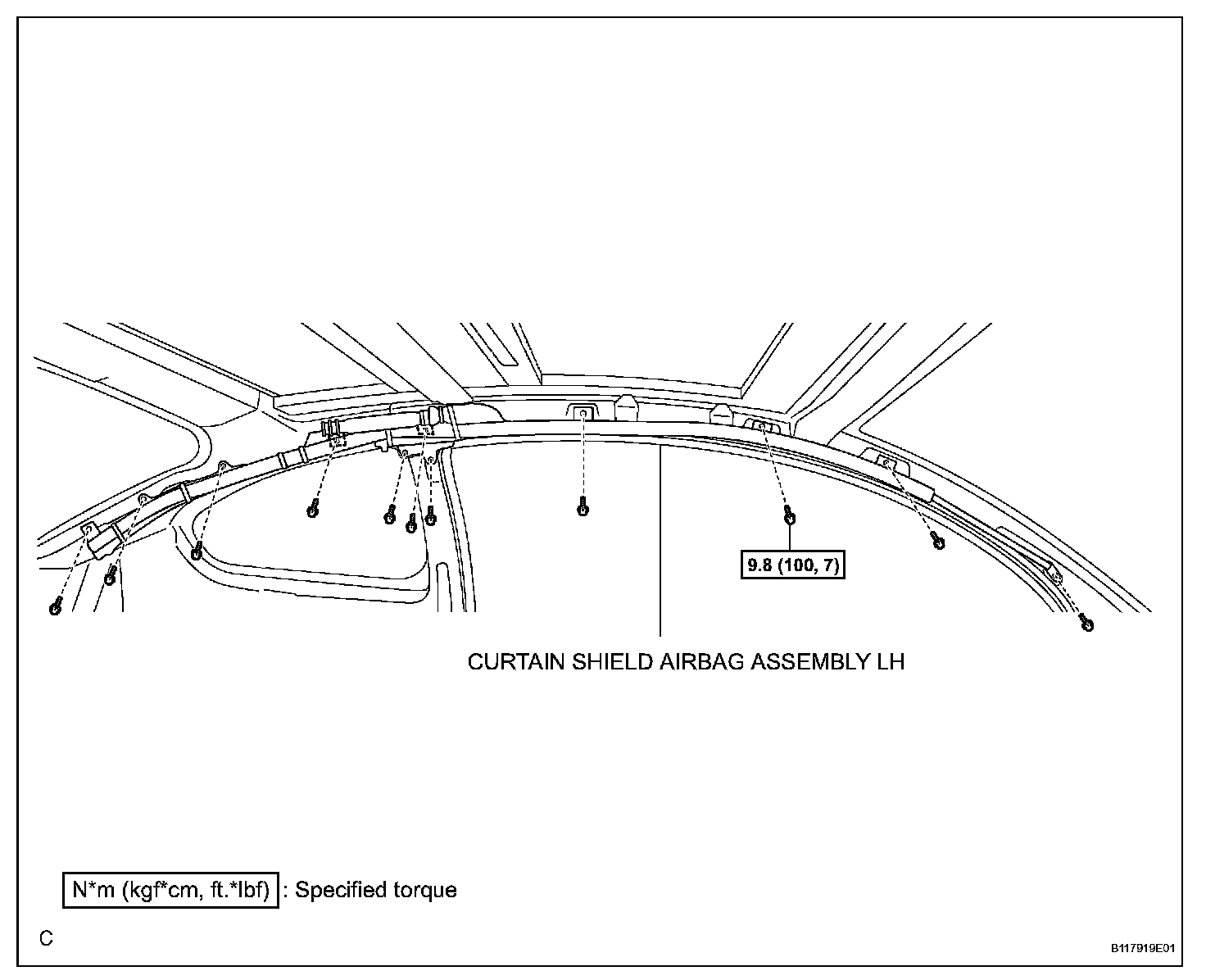

a. Install the curtain shield airbag assembly with the 11 bolts.

Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

NOTE: Do not twist the curtain shield airbag assembly when installing it.

b. Connect the connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL ROOF HEADLINING ASSEMBLY
a. Install the roof headlining assembly.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.

CAUTION: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
