Starter Relay: Testing and Inspection

STARTER RELAY

ON-VEHICLE INSPECTION

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STARTER RELAY (Marking: ST)
a. Remove the engine room No. 2 relay box cover.
b. Remove the starter relay.

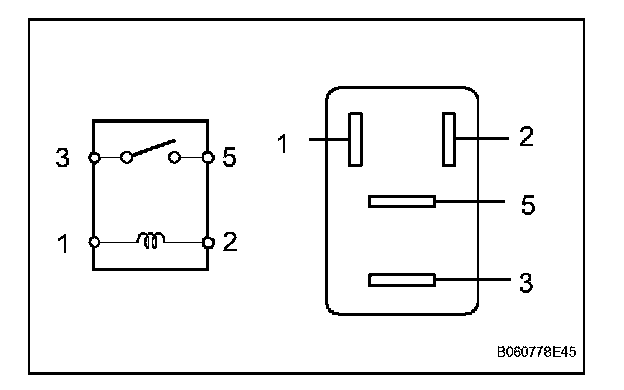

3. INSPECT STARTER RELAY

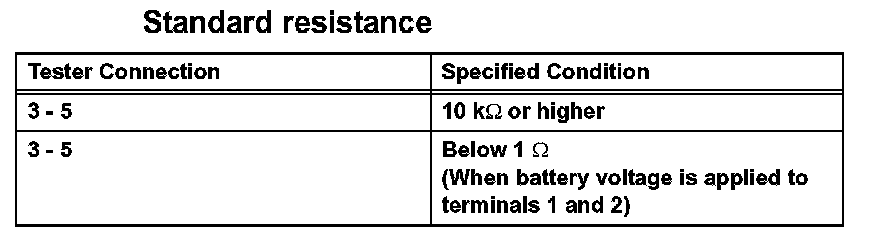

a. Measure the resistance of the relay.

If the resistance is not as specified, replace the relay.

4. INSTALL STARTER RELAY (Marking: ST)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
