Transmission Speed Sensor: Service and Repair

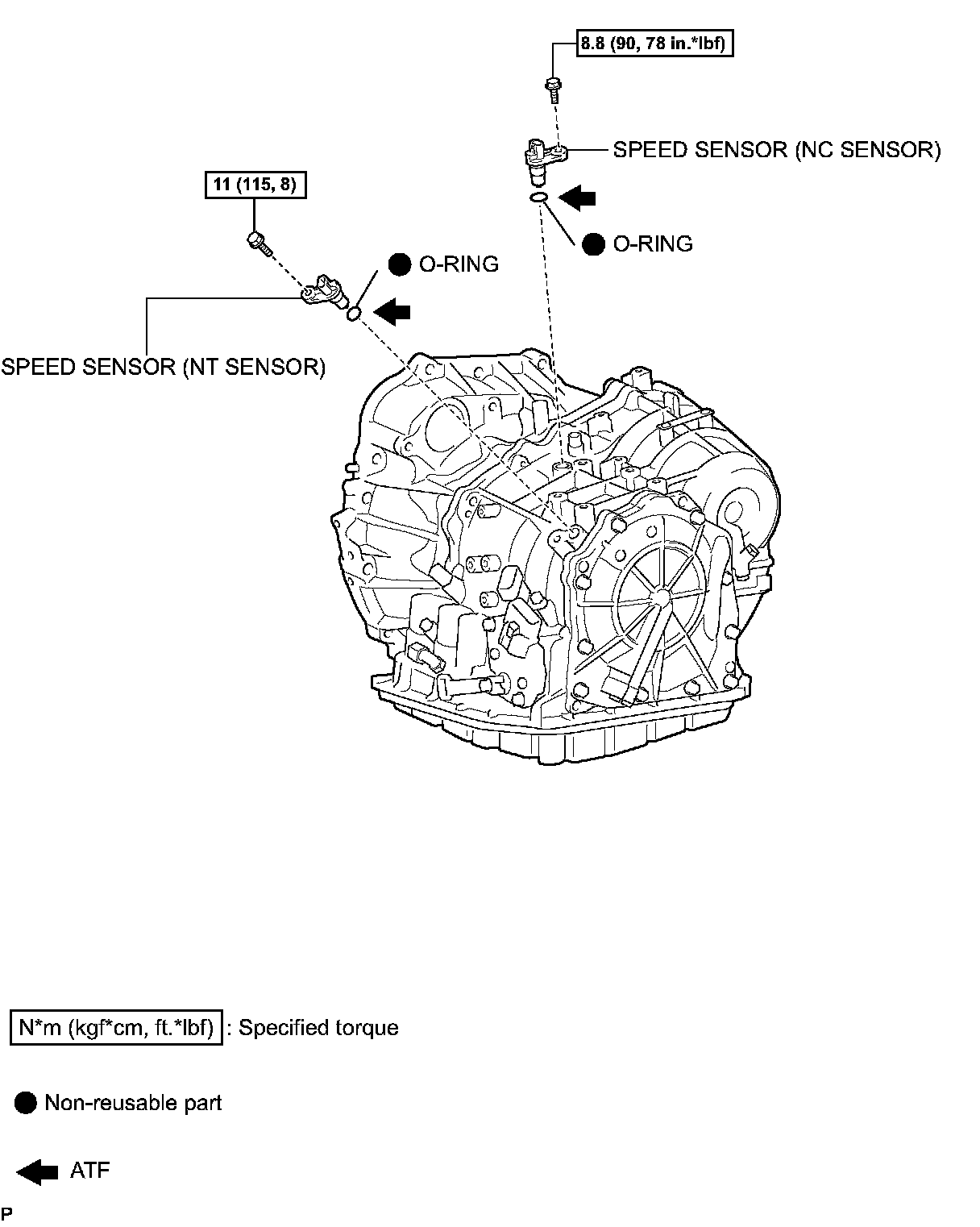

TRANSMISSION REVOLUTION SENSORCOMPONENTS:
REMOVAL
1. REMOVE BATTERY
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE BATTERY CARRIER
3. REMOVE AIR CLEANER ASSEMBLY

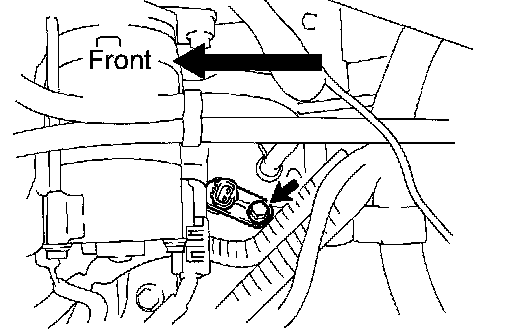

4. REMOVE SPEED SENSOR (NT SENSOR)
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.

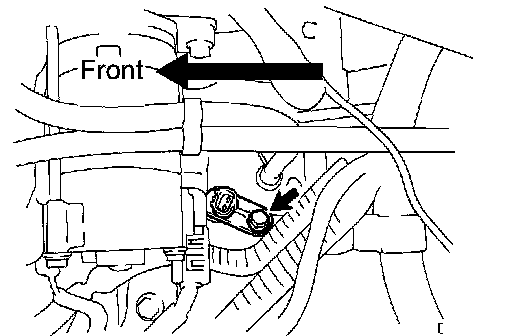

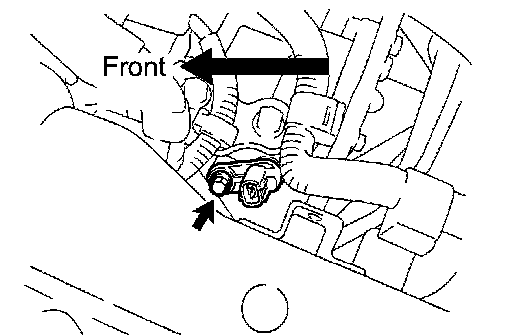

5. REMOVE SPEED SENSOR (NC SENSOR)
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.
INSTALLATION

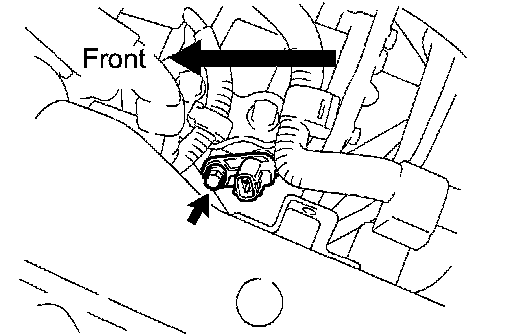

1. INSTALL SPEED SENSOR (NC SENSOR)
a. Coat a new O-ring with ATF and install it to the sensor.
b. Install the sensor with the bolt.
Torque: 8.8 Nm (90 kgf-cm, 78 inch lbs.)
c. Connect the sensor connector.
2. INSTALL SPEED SENSOR (NT SENSOR)
a. Coat a new O-ring with ATF and install it to the sensor.
b. Install the sensor with the bolt.
Torque: 11 Nm (115 kgf-cm, 8 ft. lbs.)
c. Connect the sensor connector.
3. INSTALL AIR CLEANER ASSEMBLY
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
4. INSTALL BATTERY CARRIER
5. INSTALL BATTERY
6. PERFORM INITIALIZATION
a. Perform initialization.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
