Ignition Coil: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE ENGINE COVER
3. REMOVE IGNITION COIL ASSEMBLY

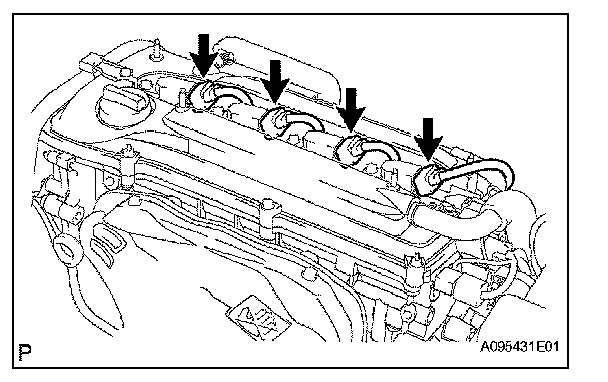

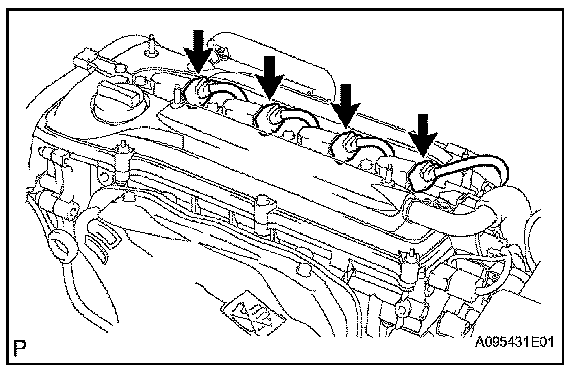

a. Disconnect the 4 ignition coil connectors.

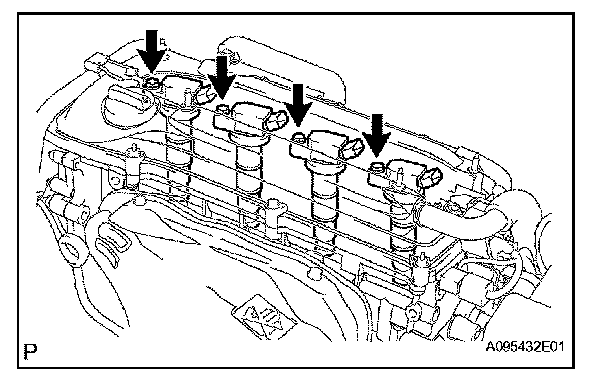

b. Remove the 4 bolts and 4 ignition coils.
INSTALLATION
1. INSTALL IGNITION COIL ASSEMBLY

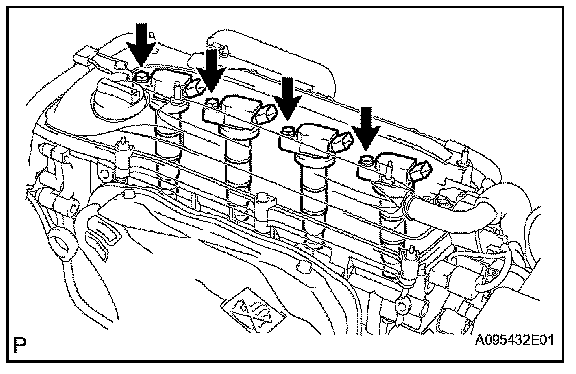

a. Install the 4 ignition coil with the 4 bolts.
Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
b. Connect the 4 ignition coil connectors.
2. INSTALL ENGINE COVER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
