Inspection

INSPECTION

INSPECT THROTTLE BODY

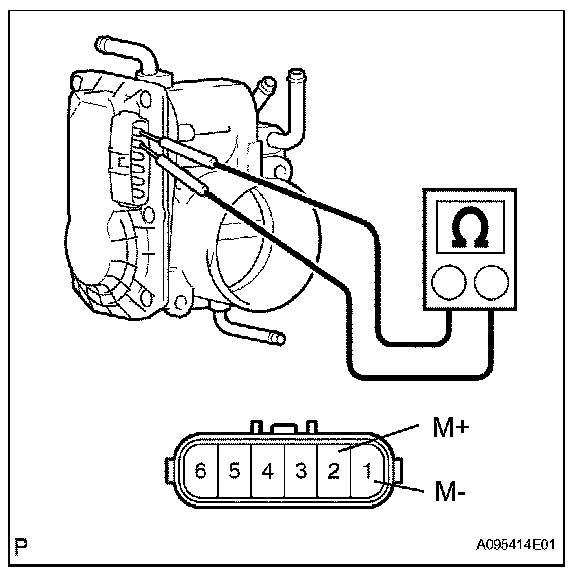

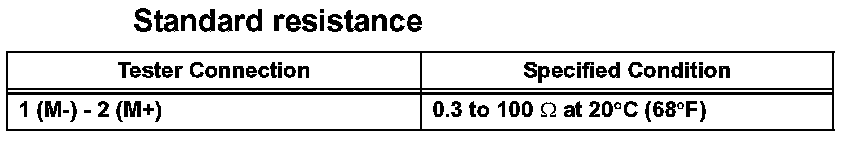

Measure the resistance of the throttle control motor.

If the result is not as specified, replace the throttle body.
