Fuel Injector: Testing and Inspection
INSPECTIONINSPECT FUEL INJECTOR ASSEMBLY

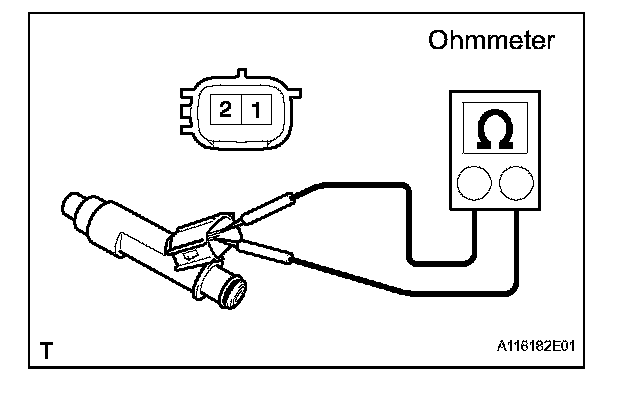

a. Measure the resistance between the injector terminals.
Standard resistance: 11.6 to 12.4 ohms at 20 °C (68 °F)
If the result is not as specified, replace the injector.
b. Inspect the injector injection volume.
CAUTION:
- This test involves high-pressure fuel and electricity.
- Take every precaution regarding safe handling of both the fuel and the electricity.
- Perform this test in a safe area, and avoid any sparks or flame.
- Do not smoke.

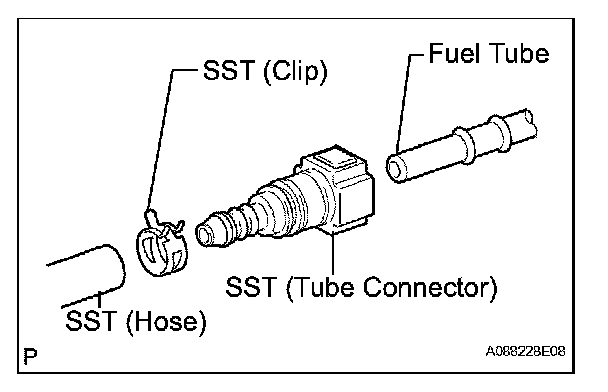

1. Connect SST (fuel tube connector) to SST (hose), then connect them to the fuel pipe (vehicle side).
SST 09268-31011 (09268-41500, 90467-13001, 95336-08070)
CAUTION: Always read the precautions before connecting the fuel tube connector (quick type).
2. Install the O-ring to the fuel injector.

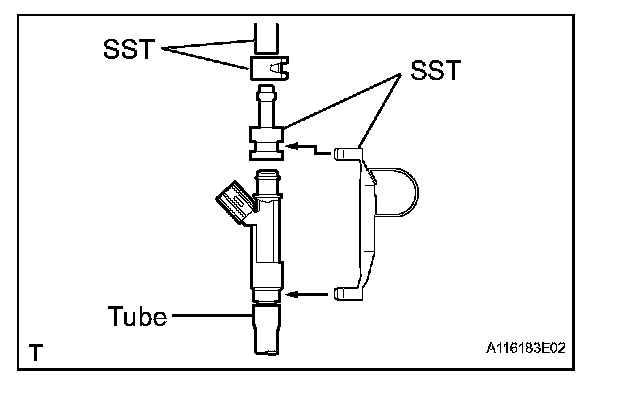

3. Connect SST (adapter and hose) to the injector, and hold the injector and union with SST (clamp).
SST 09268-31011 (09268-41110, 09268-41300, 90467-13001)
4. Put the injector into the graduated cylinder.
CAUTION: Install a suitable vinyl tube onto the injector to contain gasoline spray.
5. Operate the fuel pump
6. Connect SST (wire) to the injector and the battery for 15 seconds, and measure the injection volume with the graduated cylinder. Test each injector 2 or 3 times.
SST 09842-30080
Standard injection volume: 76 to 92 cu.cm (4.6 to 5.6 cu in.) per 15 seconds
Standard difference between each injector: 16 cu.cm (1.0 cu in.) or less
NOTE: Always turn on and off the voltage on the battery side, not the fuel pump side.

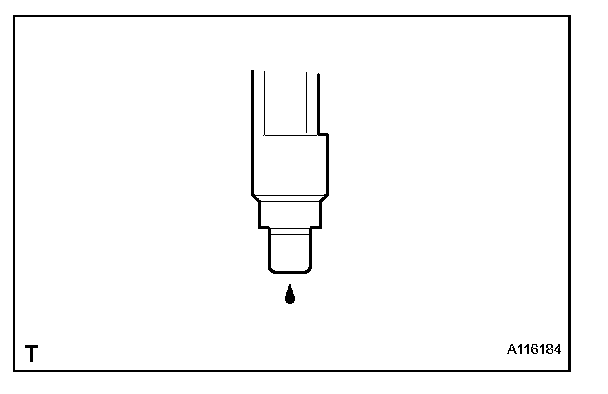

c. Inspect the fuel leakage.
1. Disconnect the SST (wire) tester probes from the battery and check the fuel leakage from the injector.
Standard fuel drop: 1 drop or less per 12 minutes
2. Turn the ignition switch off.
3. Disconnect the cable from the negative (-) battery terminal.
4. Remove the SST.
5. Disconnect the intelligent tester from the DLC3.
6. Reconnect the fuel inlet hose (rear fuel pipe) to the fuel main tube.
