Heated Oxygen Sensor

ON-VEHICLE INSPECTION

INSPECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

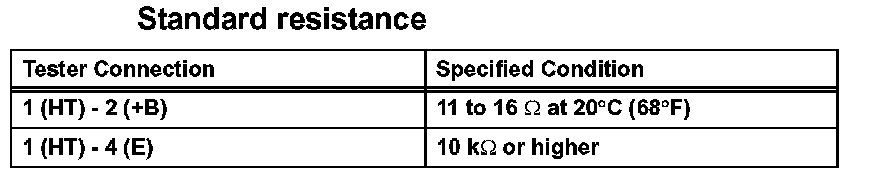

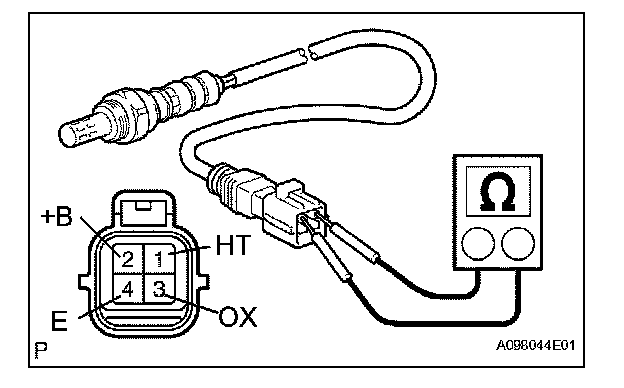

a. Measure the resistance of the sensor.

If the resistance is not as specified, replace the sensor.
