Pinout Values and Diagnostic Parameters

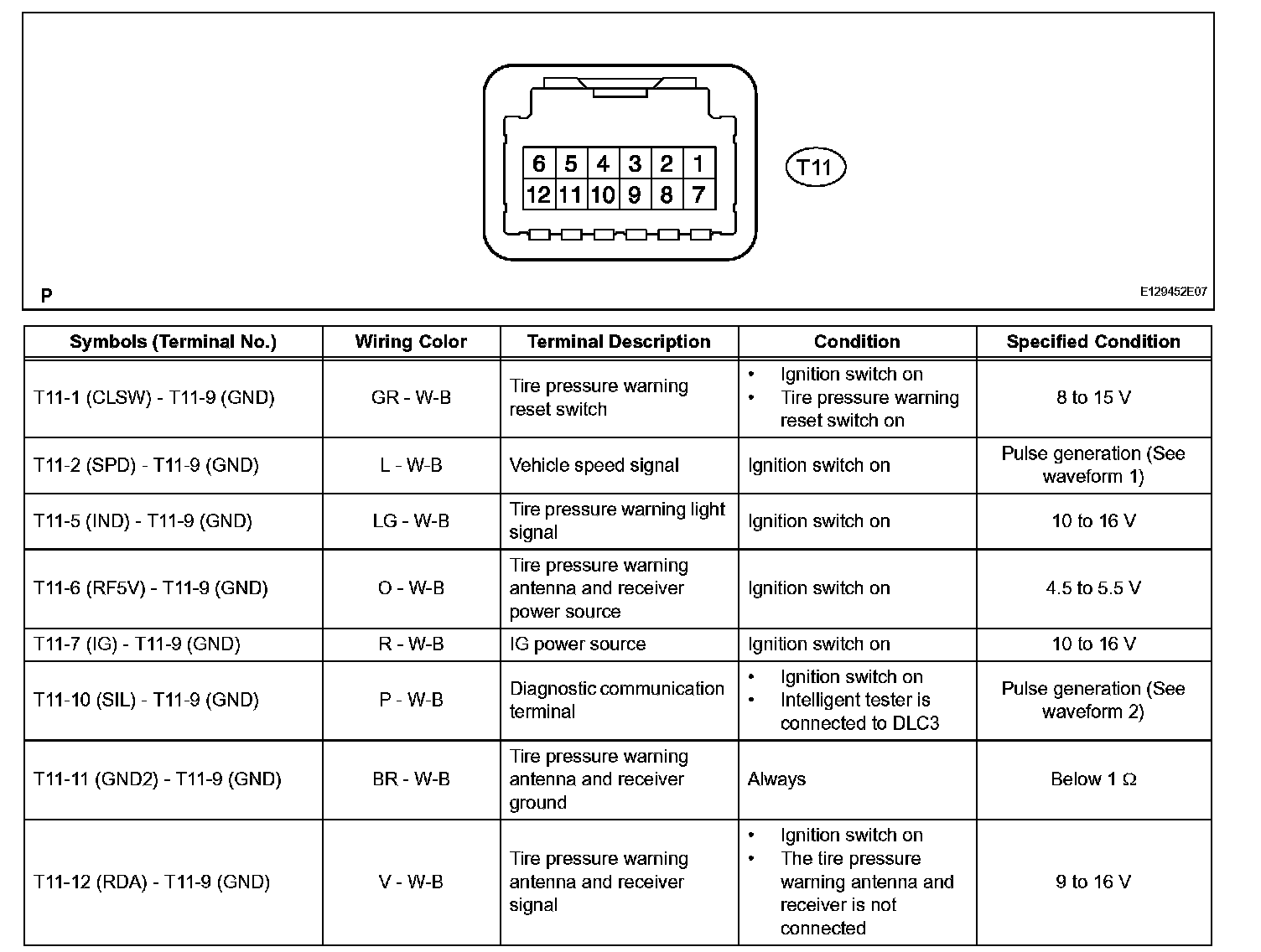

TERMINALS OF ECU
HINT:
Inspect the connectors from the back side while the connectors are connected.

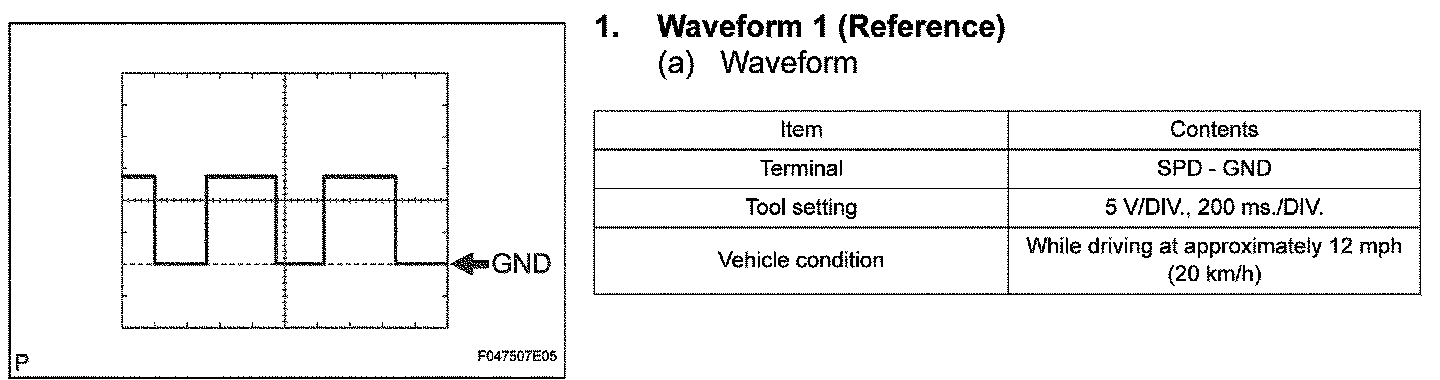

Waveform 1:

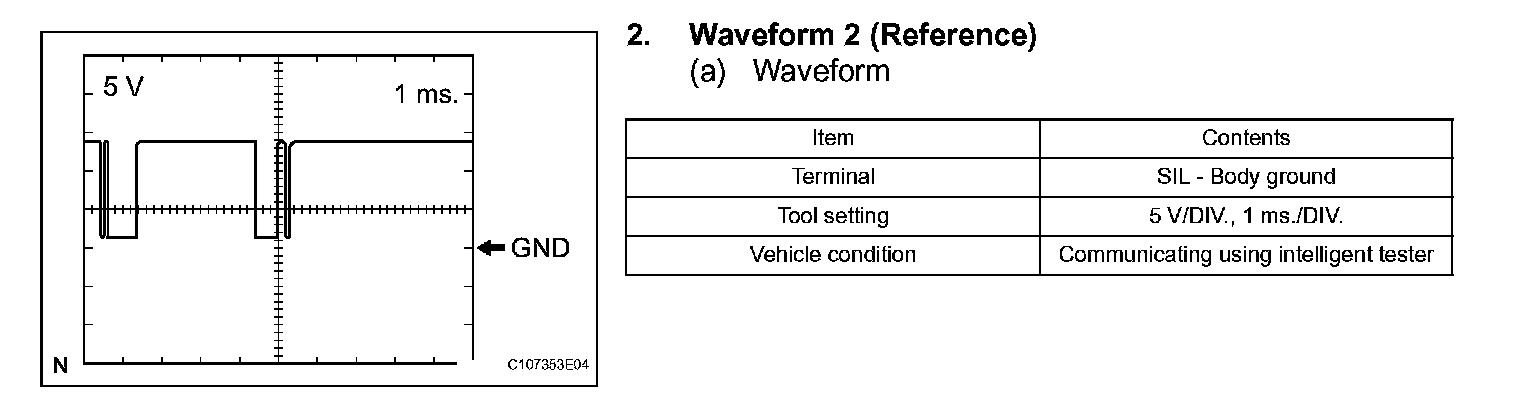

Waveform 2:
