Tire Pressure Warning Reset Switch Circuit
Tire Pressure Warning Reset Switch CircuitDESCRIPTION
Receiving a signal from the tire pressure warning reset switch, the tire pressure warning ECU and receiver indicate the initialization of the tire pressure warning system.

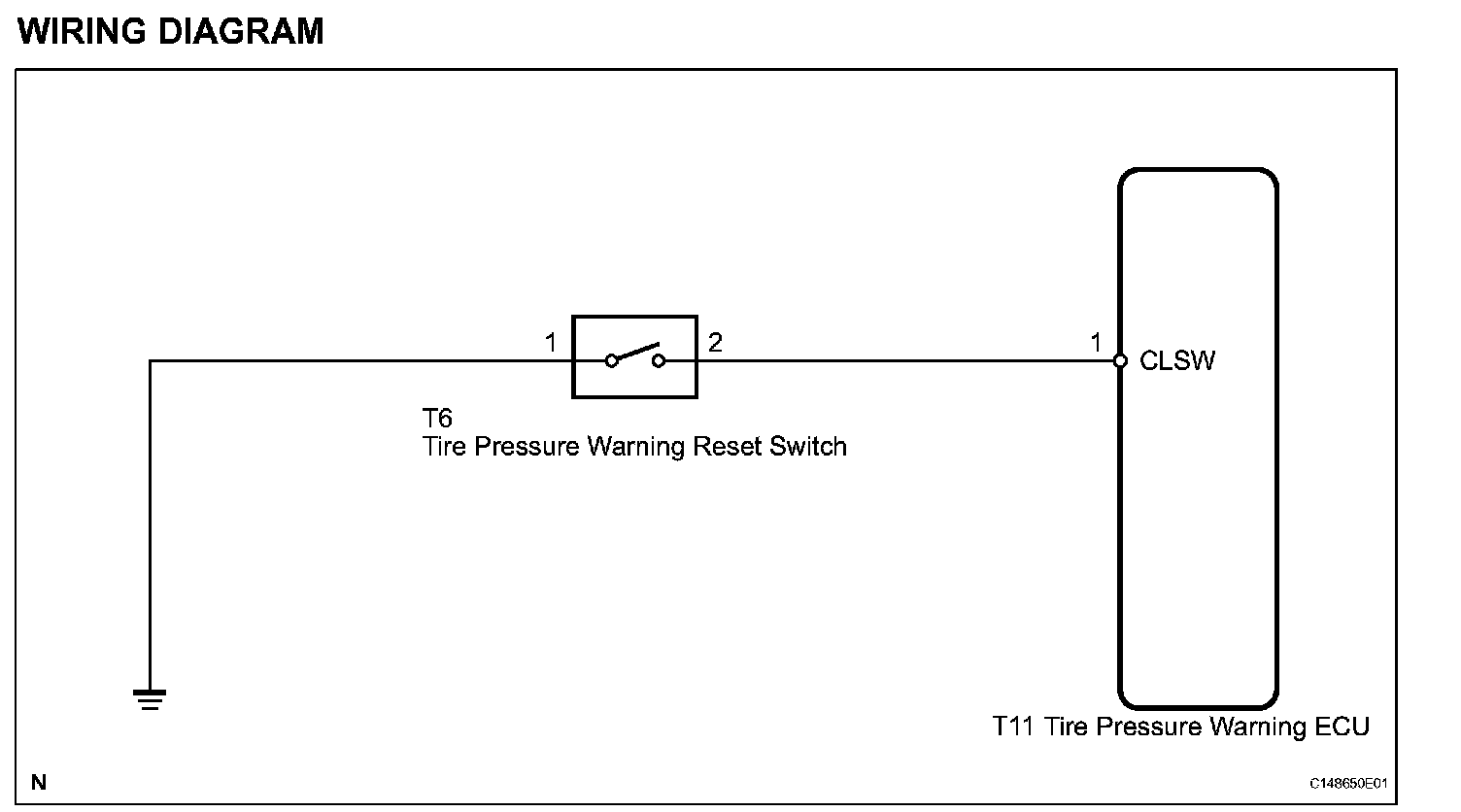

WIRING DIAGRAM:
INSPECTION PROCEDURE
NOTICE:
^ When replacing the tire pressure warning ECU, read the IDs stored in the ECU using the intelligent tester and write them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU after the ECU has been replaced. Initialization

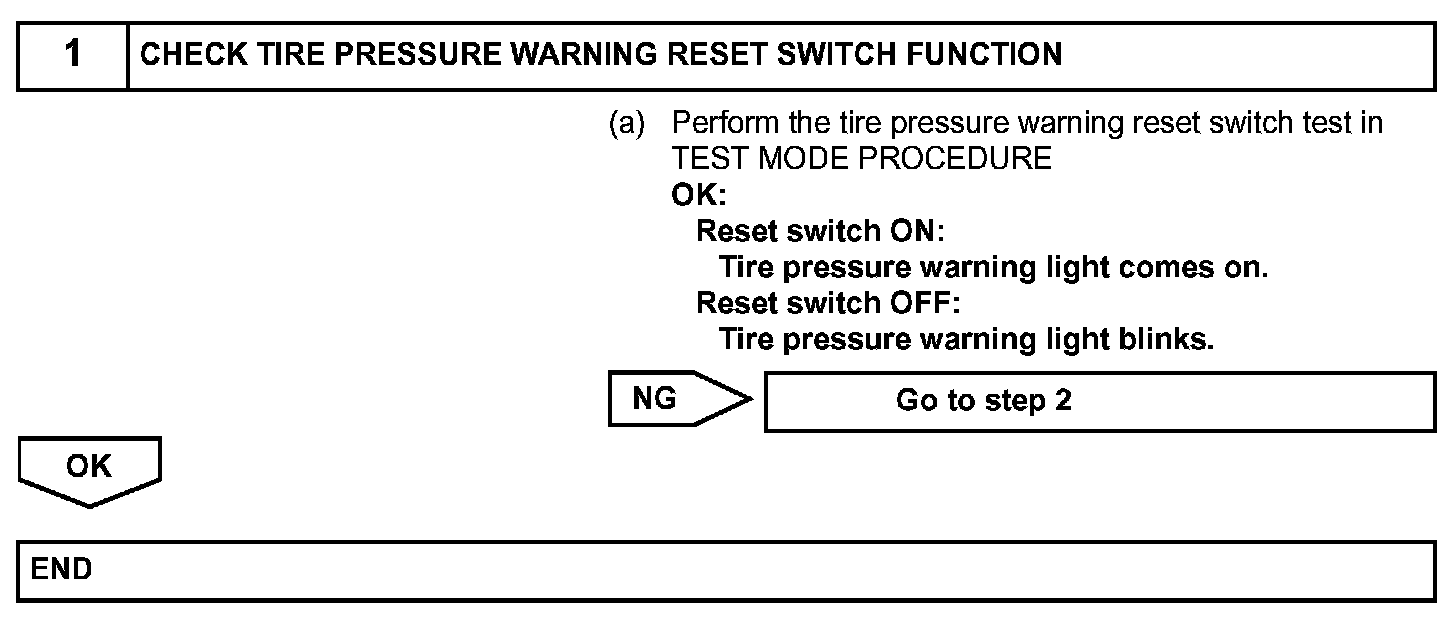

Step 1:

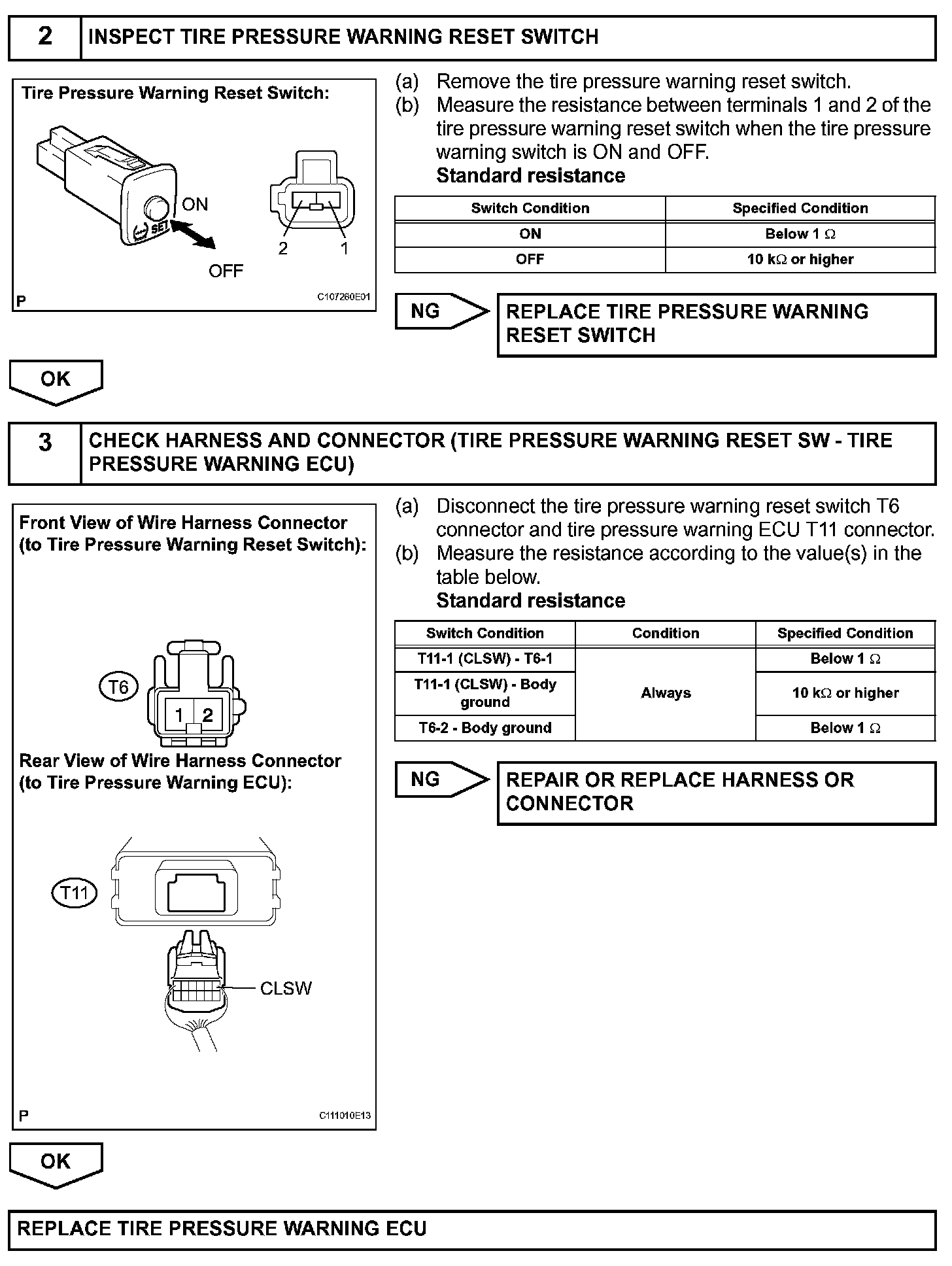

Steps 2-3:
