ECU Power Source Circuit
ECU Power Source CircuitDESCRIPTION
This is the power source for the tire pressure warning ECU.

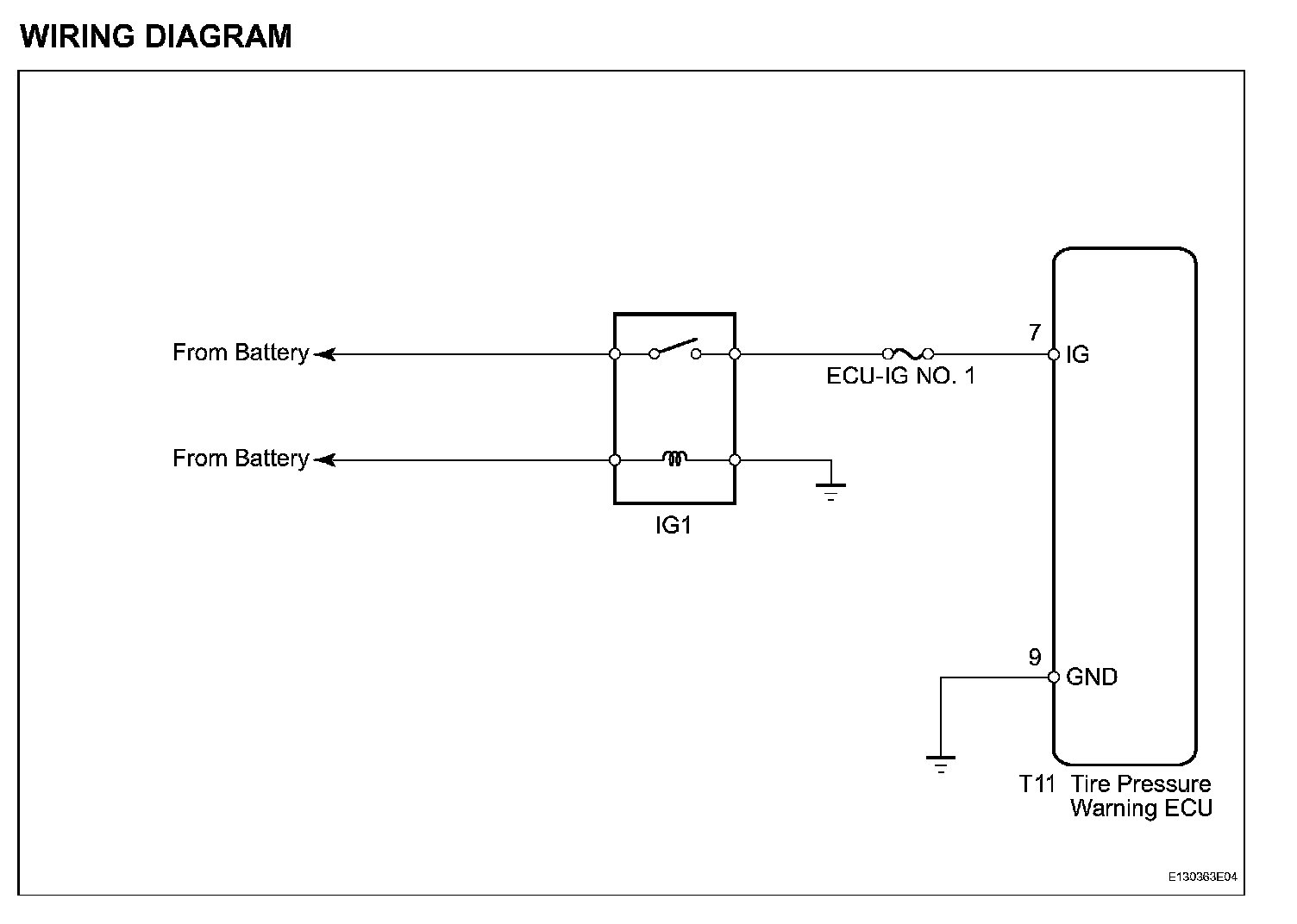

WIRING DIAGRAM:
INSPECTION PROCEDURE
NOTICE:
^ When replacing the tire pressure warning ECU, read the IDs stored in the ECU using the intelligent tester and write them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU after the ECU has been replaced. Initialization

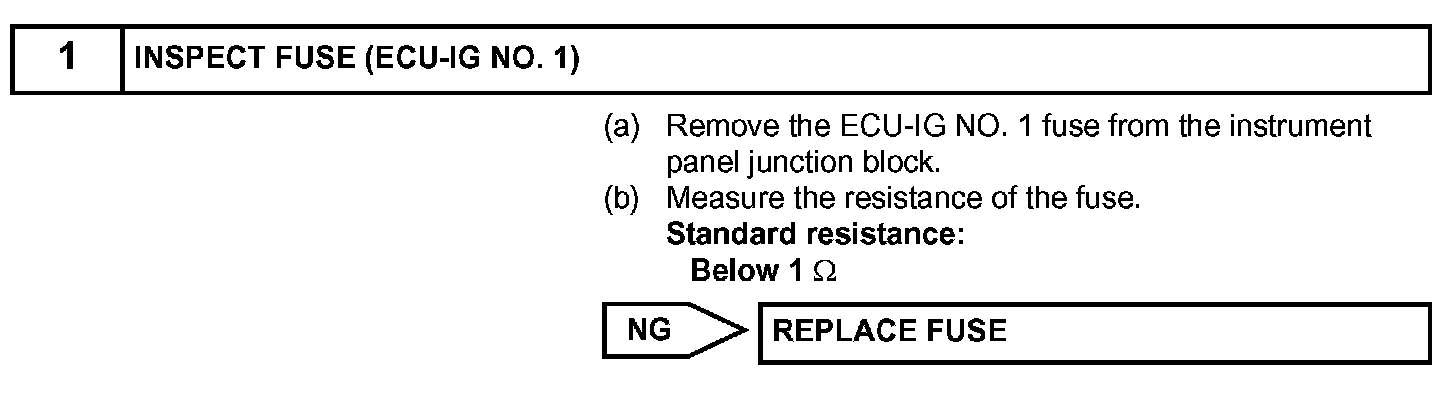

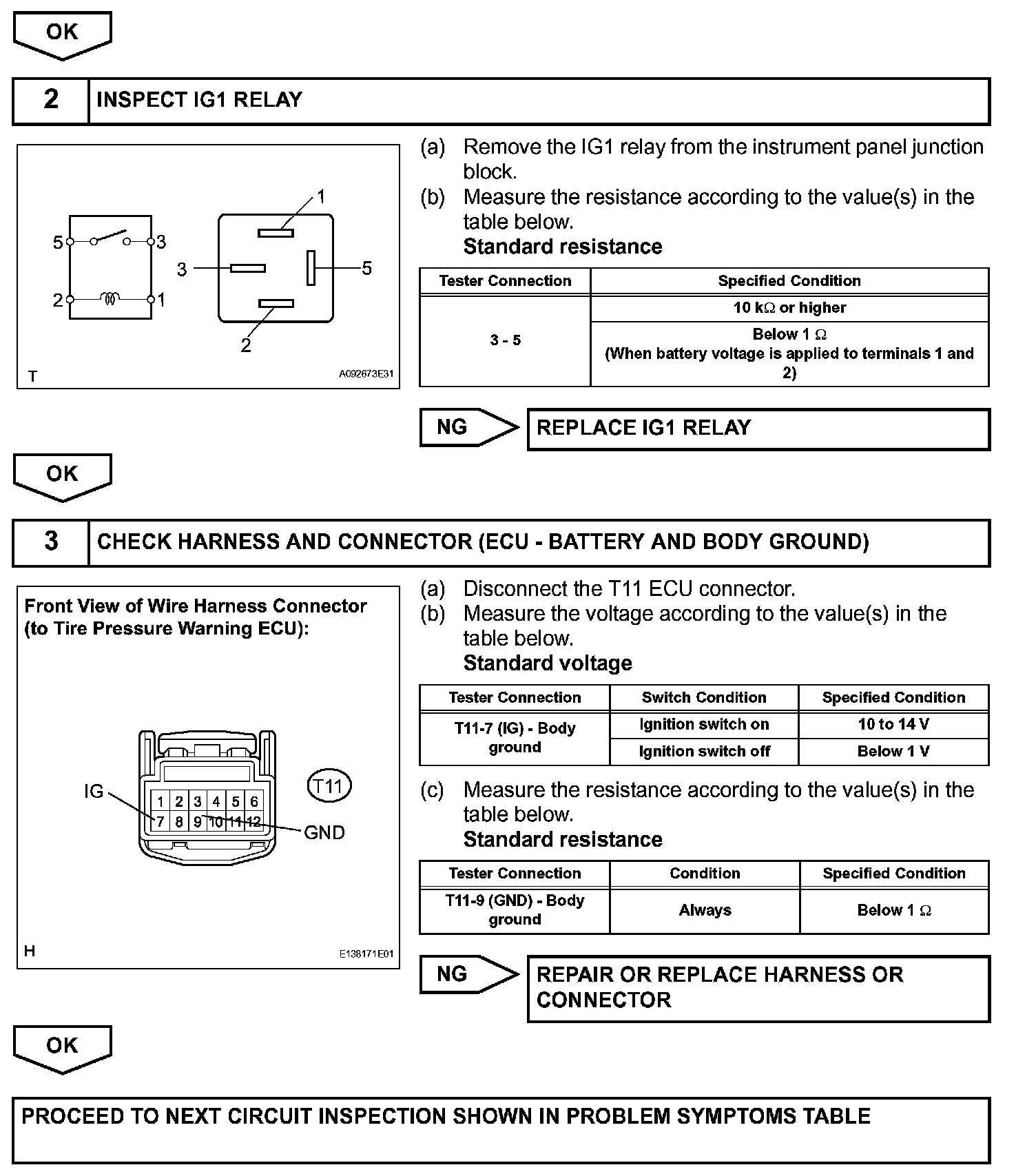

Step 1(Part 1):
