Turn Signal Flasher: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT TURN SIGNAL FLASHER OPERATION
a. Inspect the power source circuit and ground circuit

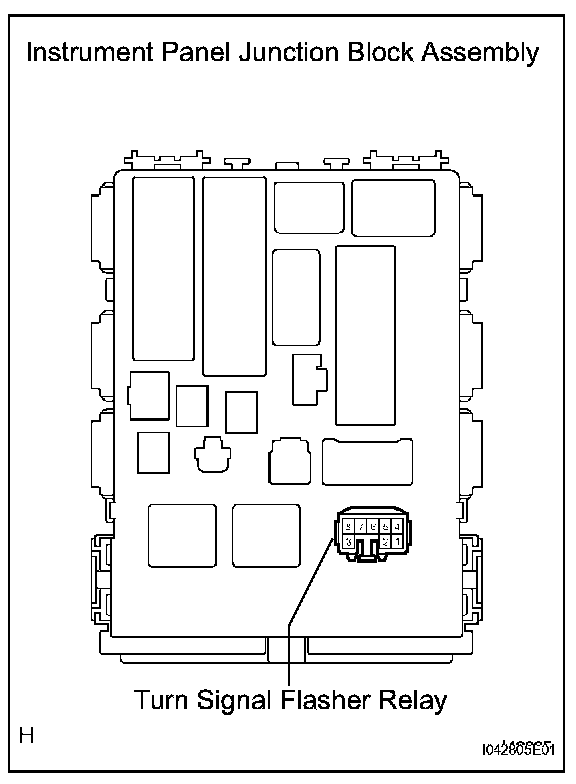

1. Remove the turn signal flasher relay from the instrument panel junction block assembly.

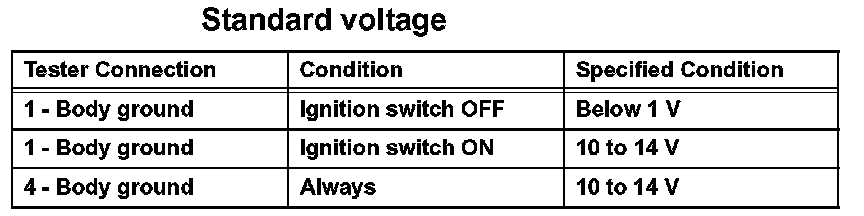

2. Measure the voltage according to the value(s) in the table.

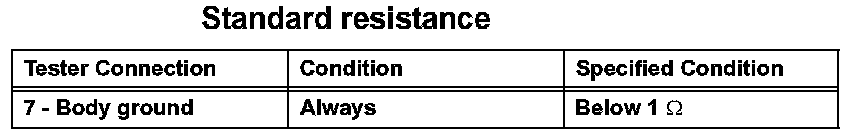

3. Measure the resistance according to the value(s) in the table.

b. Inspect the output operation signal.

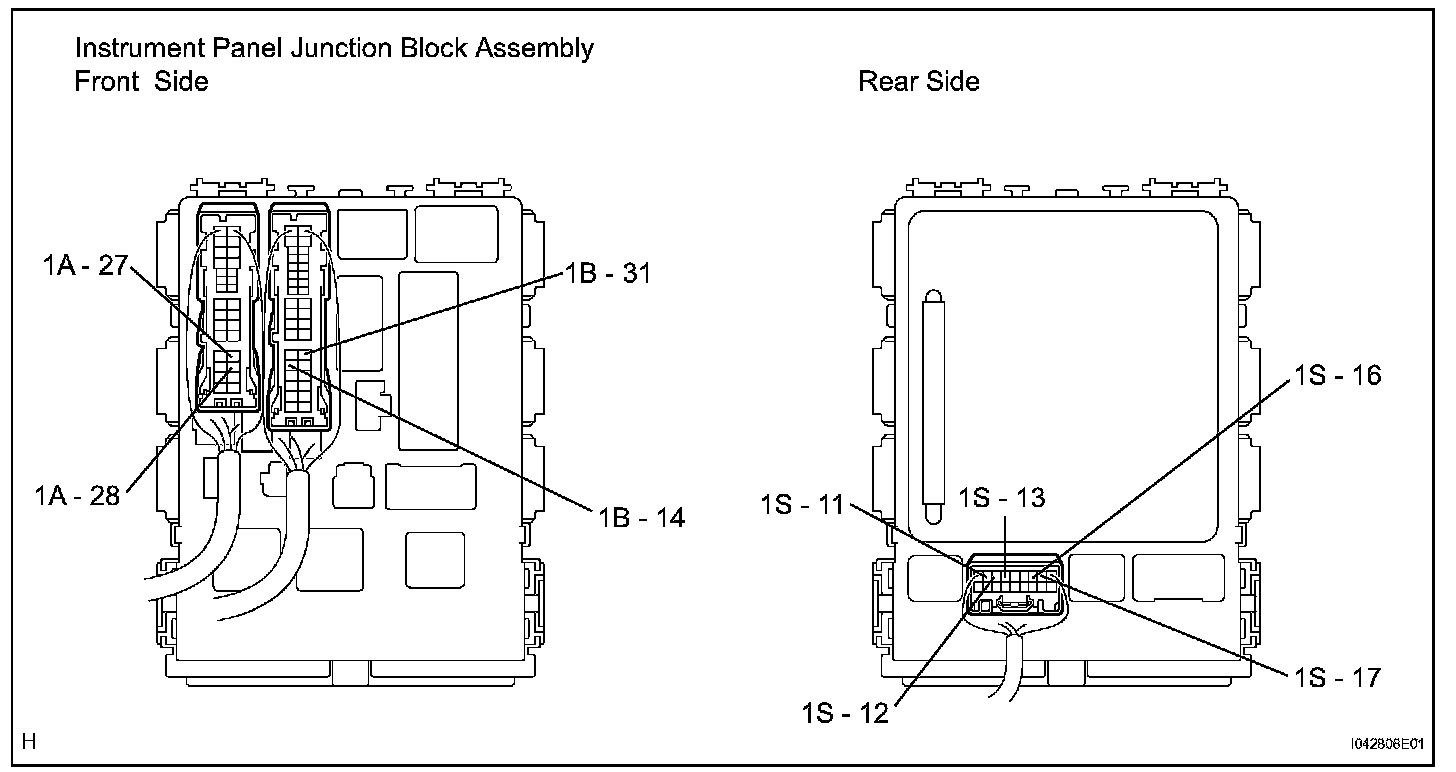

1. Install the turn signal flasher relay to the instrument panel junction block assembly.

Part 1:

Part 2:

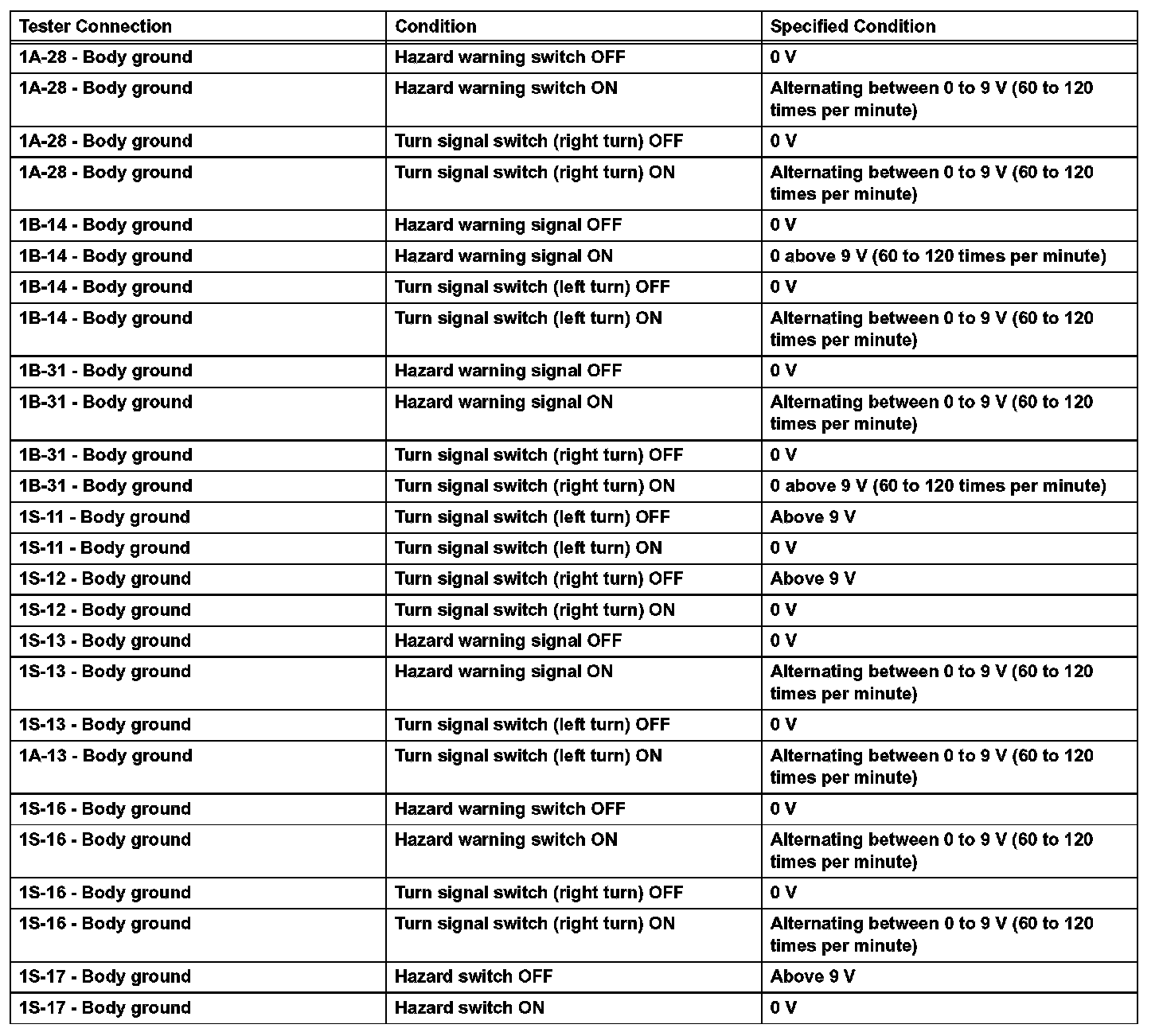

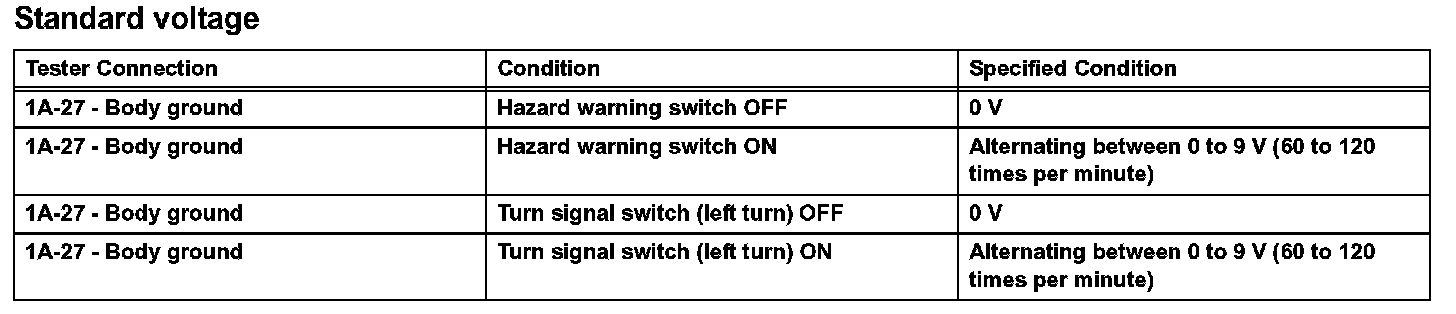

2. Measure the voltage according to the value(s) in the table.
