Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

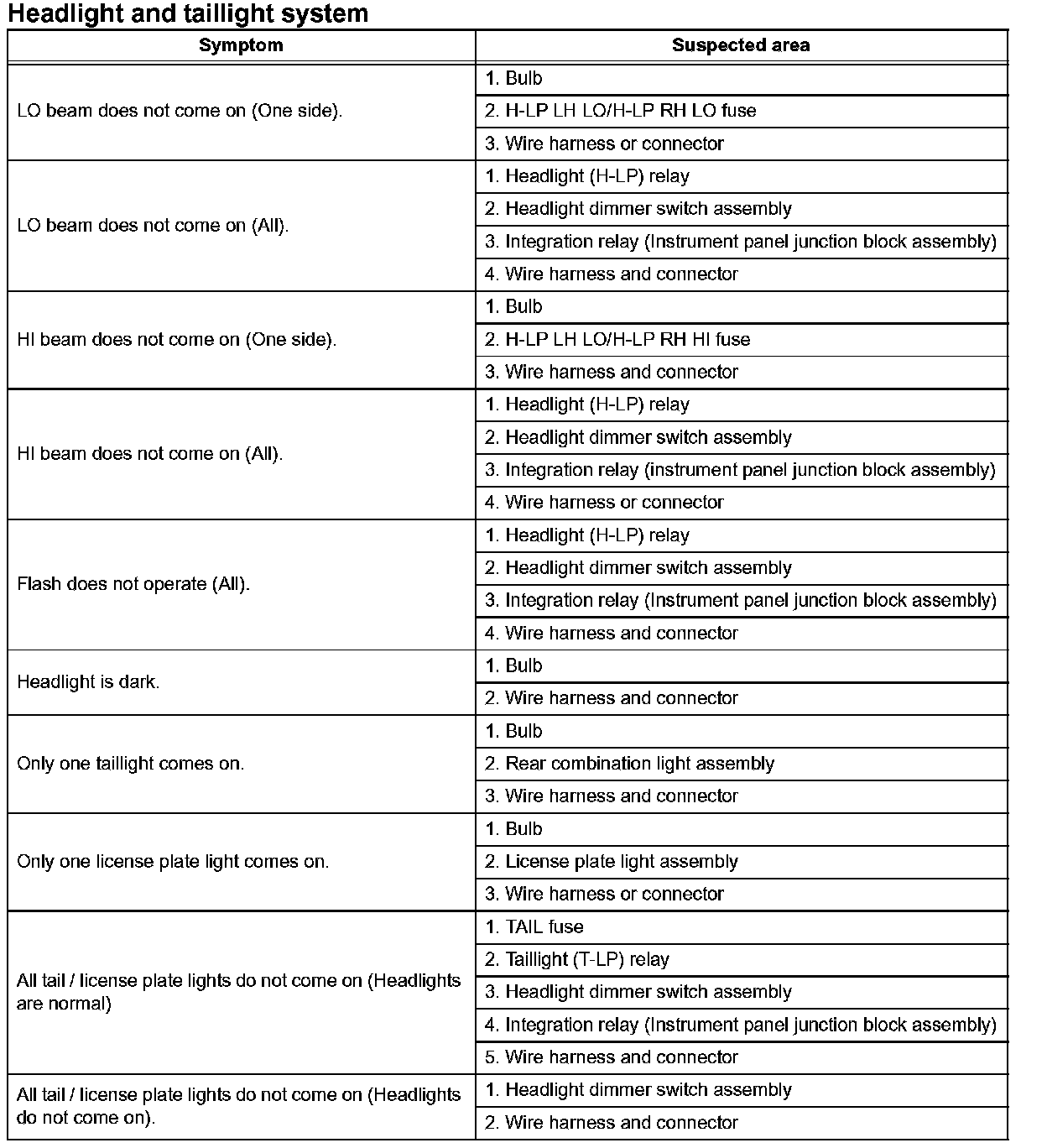

Problem Symptoms Table - Headlight And Taillight System:

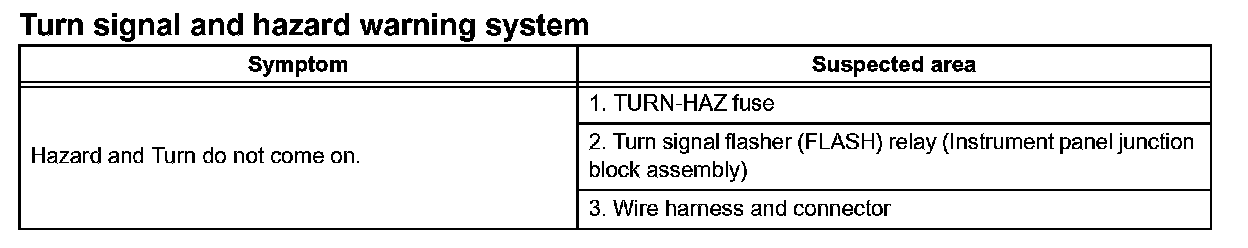

Problem Symptoms Table - Turn Signal And Hazard Warning System(Part 1):

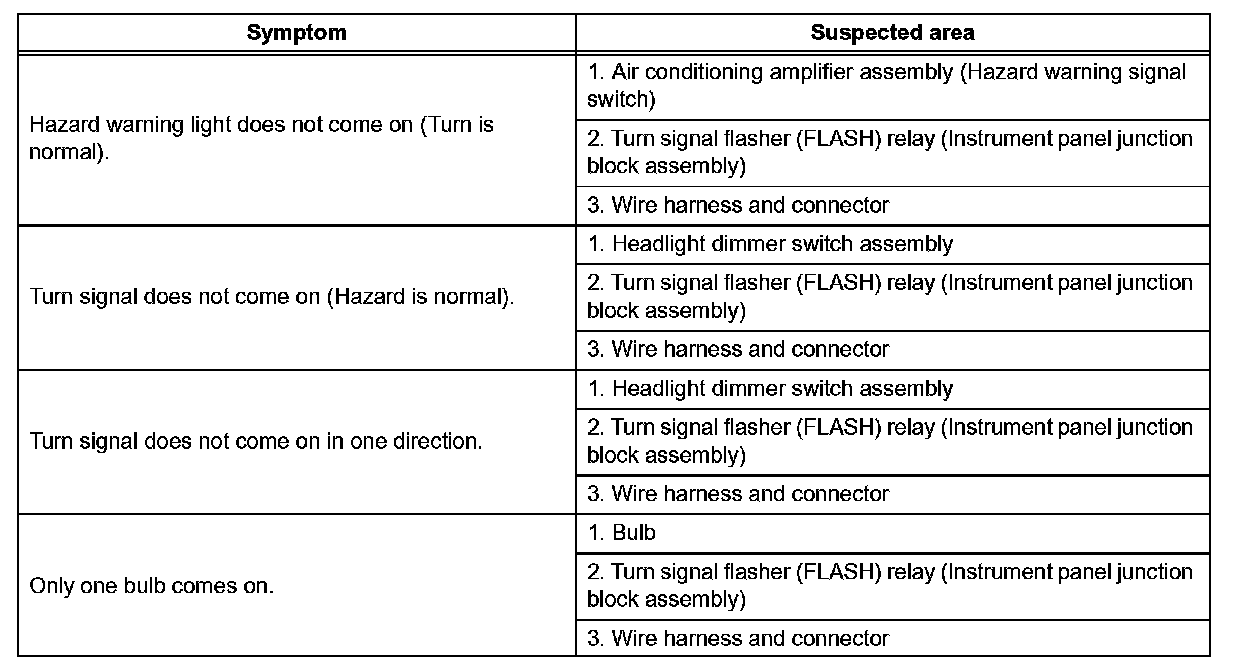

Problem Symptoms Table - Turn Signal And Hazard Warning System(Part 2):

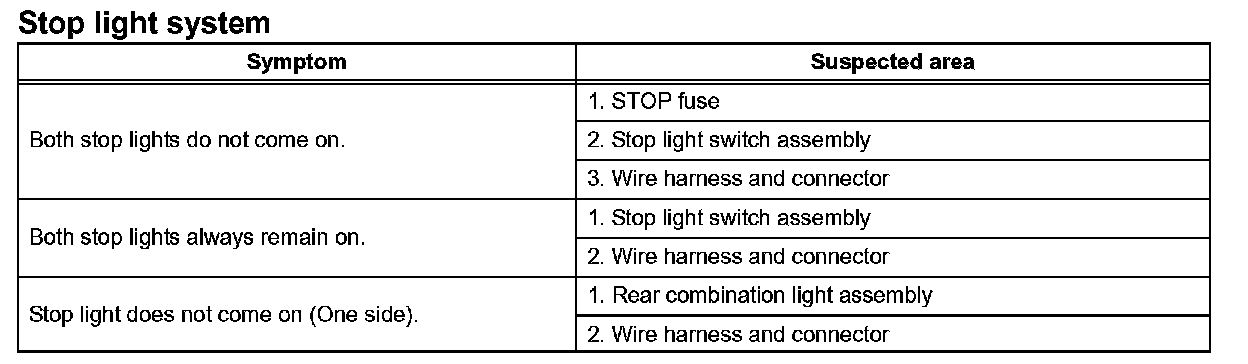

Problem Symptoms Table - Stop Light System:

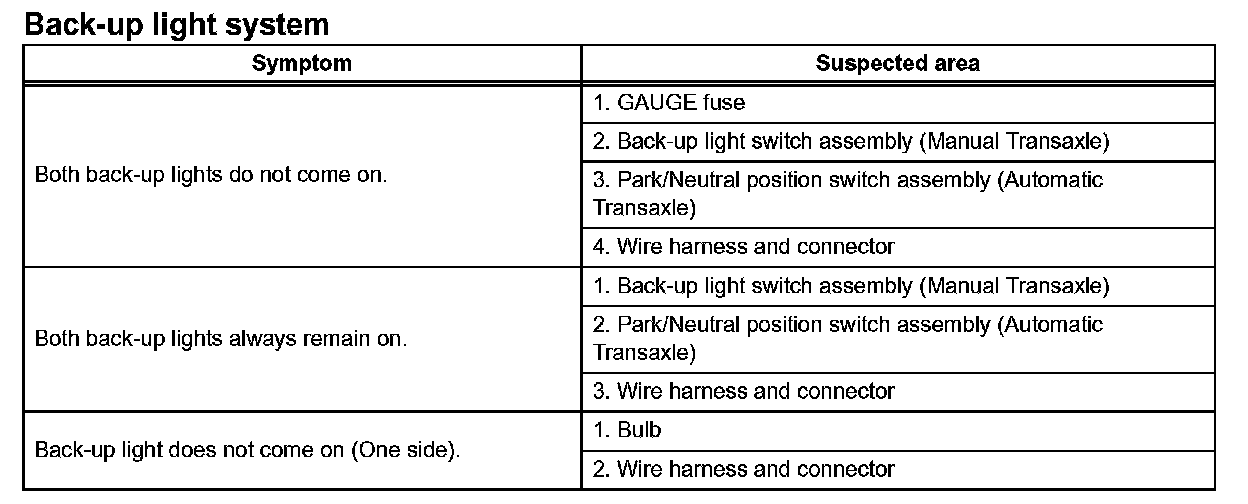

Problem Symptoms Table - Back-up Light System:

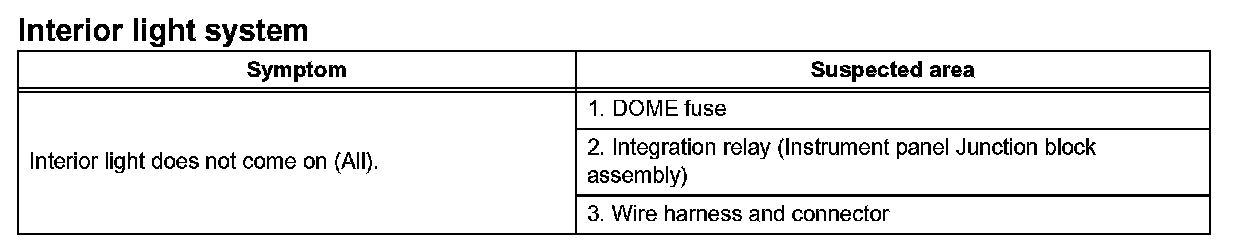

Problem Symptoms Table - Interior Light System(Part 1):

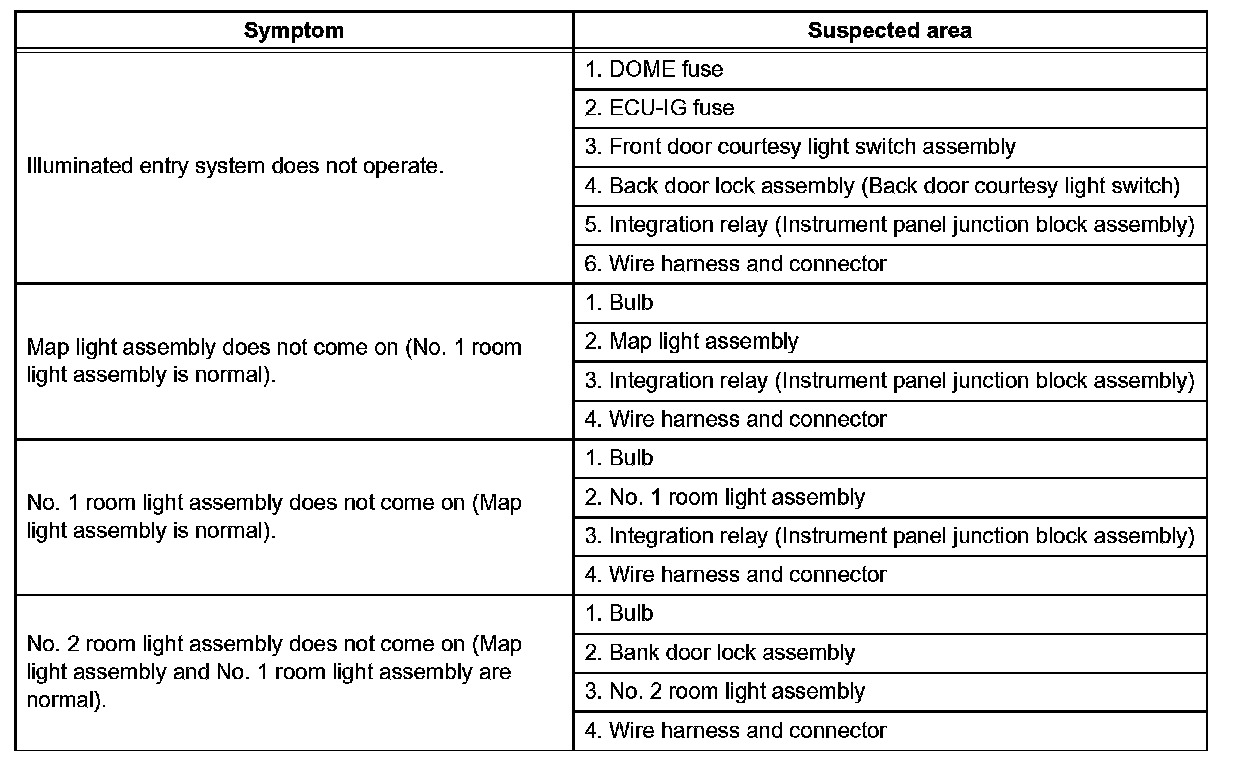

Problem Symptoms Table - Interior Light System(Part 2):

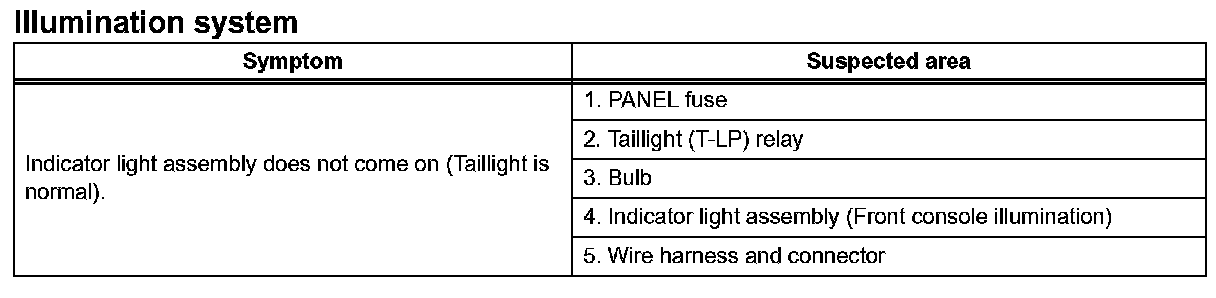

Problem Symptoms Table - Illumination System:

HINT: Use the table, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.
