Component Tests and General Diagnostics

ON-VEHICLE INSPECTION

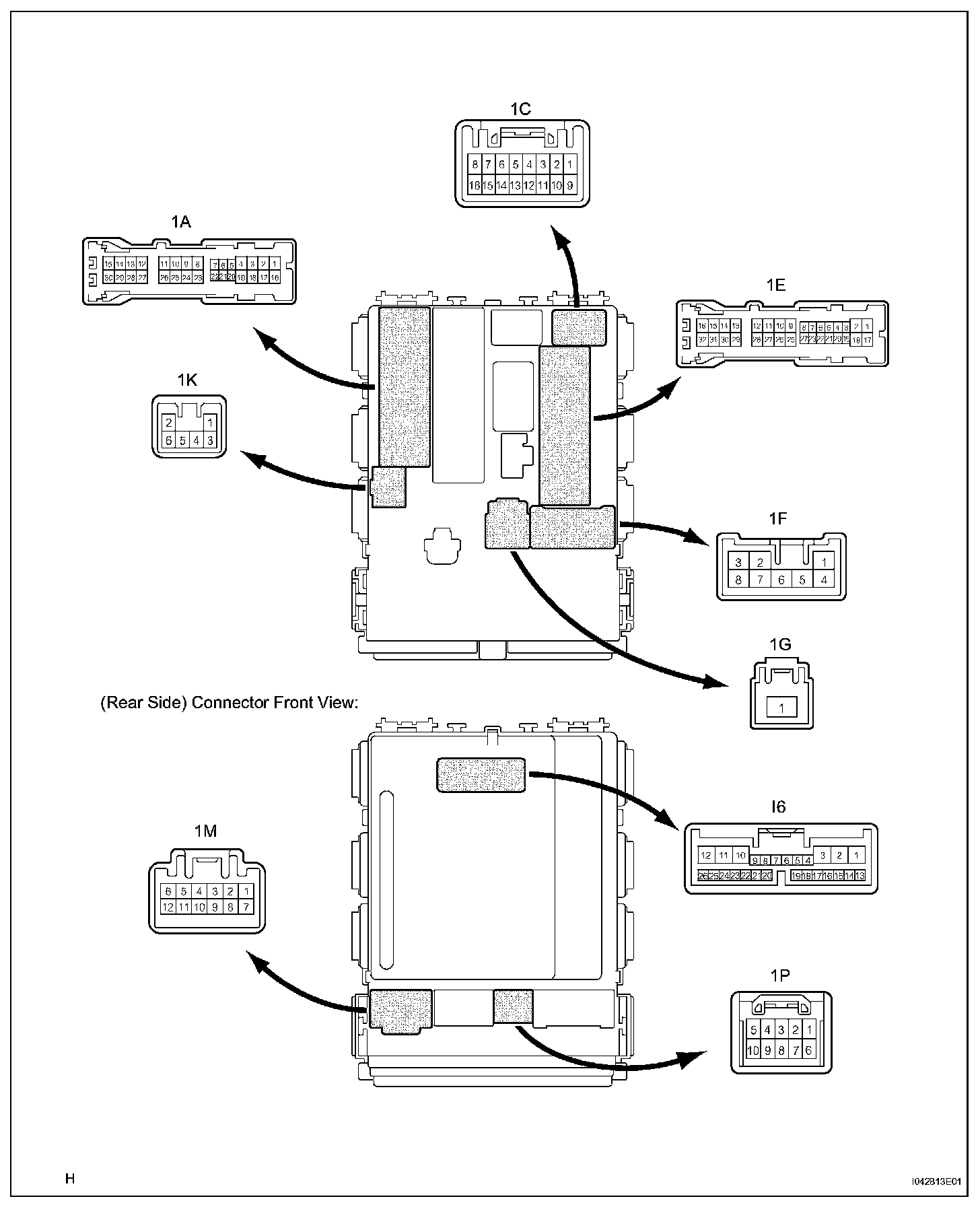

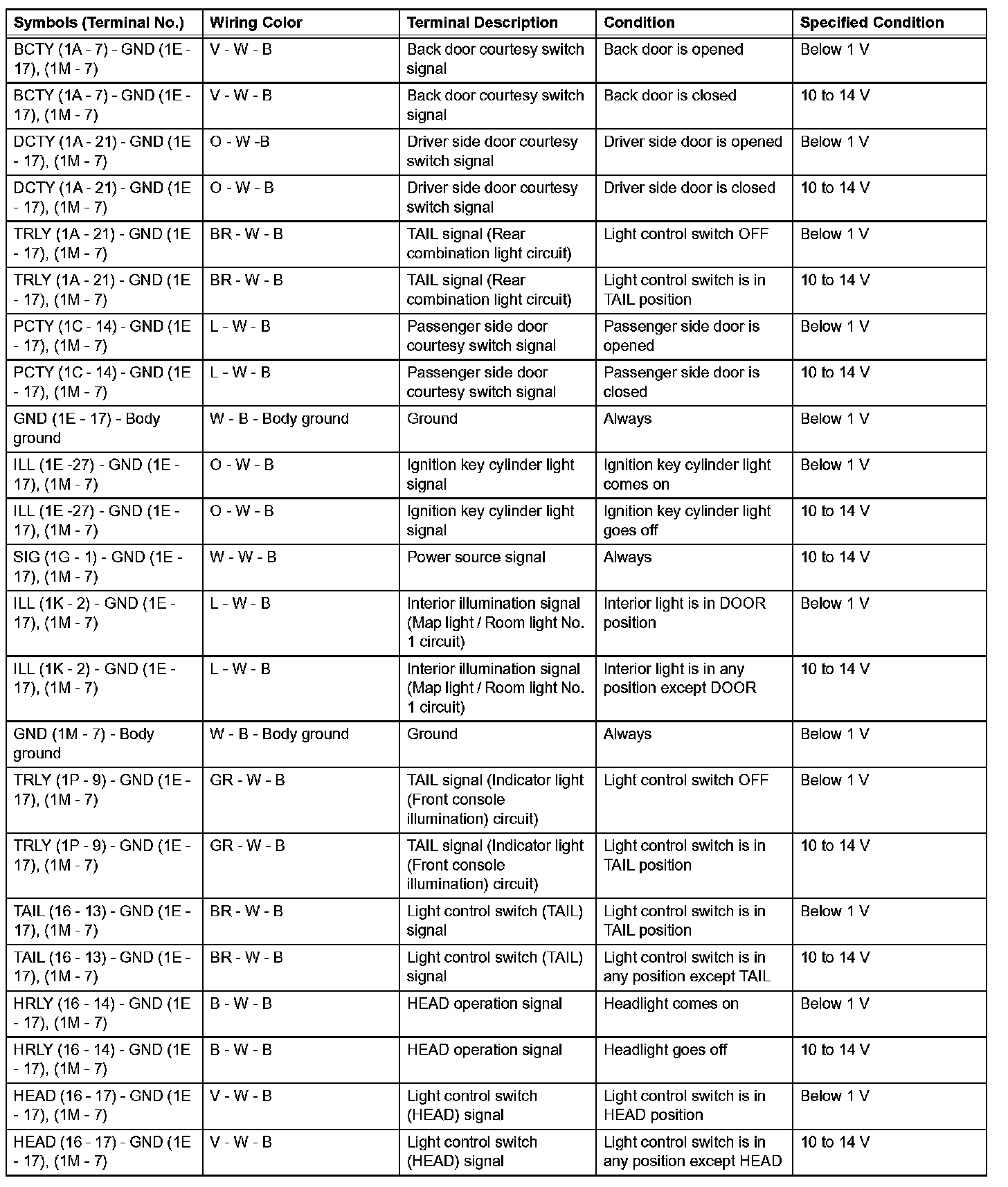

1. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
