Tail Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

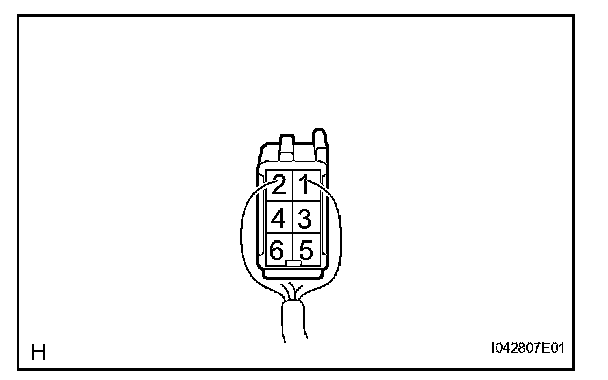

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

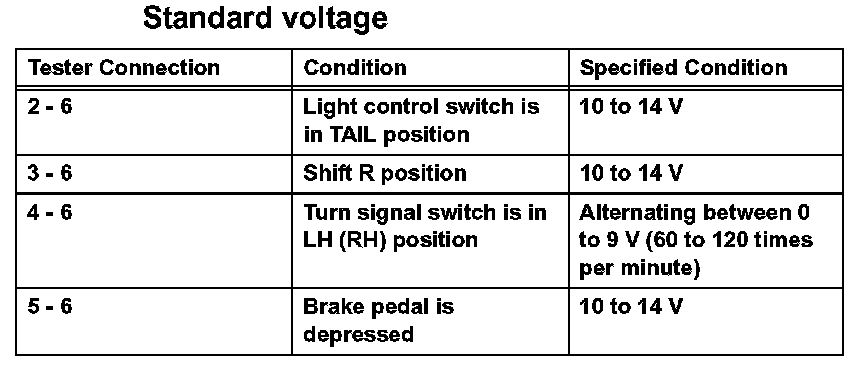

a. Measure the voltage according to the value(s) in the table.
