Overhaul

Rear Combination Light Assembly:

DISASSEMBLY

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

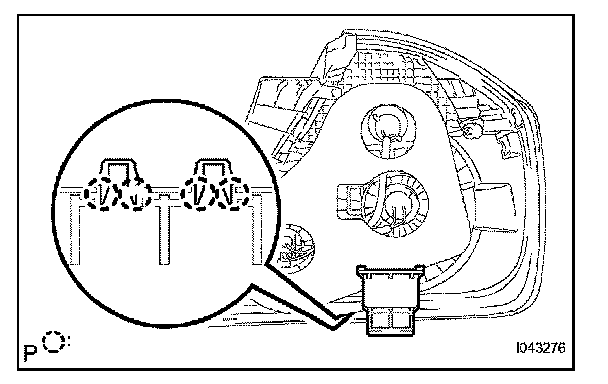

1. REMOVE REAR SIDE BRACKET LH
a. Using needle nose pliers, detach the claws and remove the rear bumper side bracket from the rear combination light assembly.

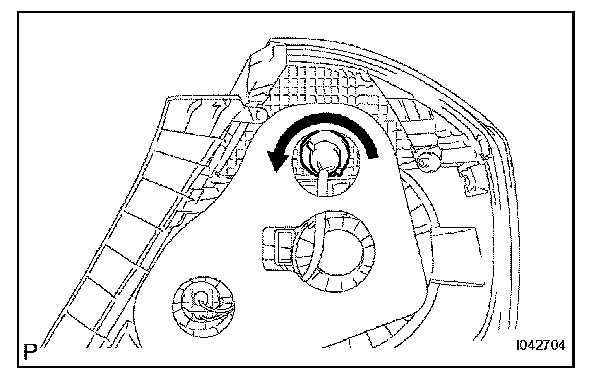

2. REMOVE TAIL AND STOP LIGHT BULB
a. Remove the light socket as shown in the illustration.
b. Remove the light bulb from the light socket.

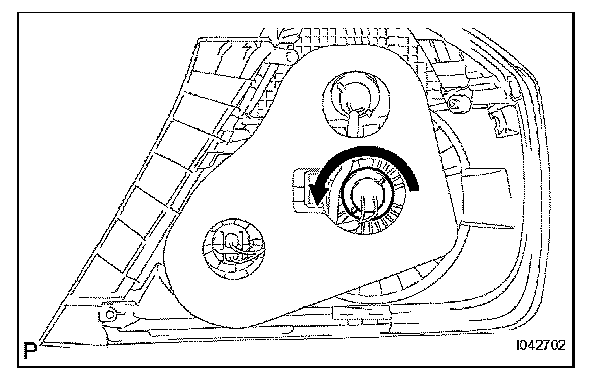

3. REMOVE BACK-UP LIGHT BULB
a. Remove the light socket as shown in the illustration.
b. Remove the rear combination light bulb from the light socket.

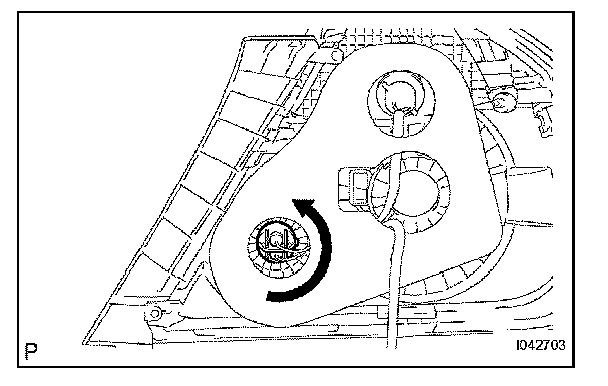

4. REMOVE REAR TURN SIGNAL LIGHT BULB
a. Remove the light socket as shown in the illustration.
b. Remove the rear combination light bulb from the light socket.

5. REMOVE REAR COMBINATION LIGHT BODY PACKING LH

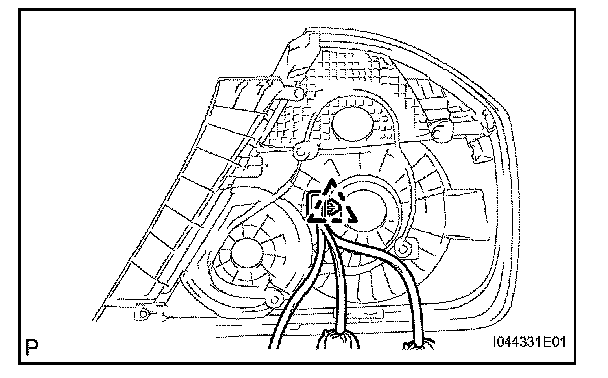

6. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
a. Detach the clamp and remove the rear combination light socket and wire

REASSEMBLY

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.




1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
a. Attach the clamp and install the rear combination light socket and wire.

2. INSTALL REAR COMBINATION LIGHT BODY GASKET LH
3. INSTALL REAR TURN SIGNAL LIGHT BULB
a. Install the light bulb to the light socket.
b. Install the light socket.

4. INSTALL BACK-UP LIGHT BULB
a. Install the light bulb to the light socket.
b. Install the light socket.

5. INSTALL TAIL AND STOP LIGHT BULB
a. Install the light bulb to the light socket.
b. Install the light socket.




6. INSTALL REAR BUMPER SIDE BRACKET LH
a. Install the rear bumper side bracket to the rear combination light.
