Headlamp Relay: Testing and Inspection
INSPECTION
1.

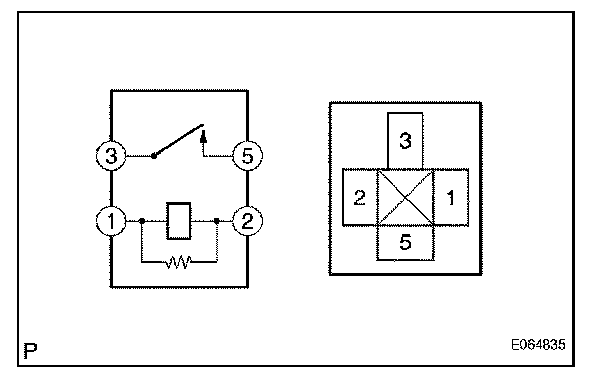

INSPECT HEADLIGHT RELAY
a.

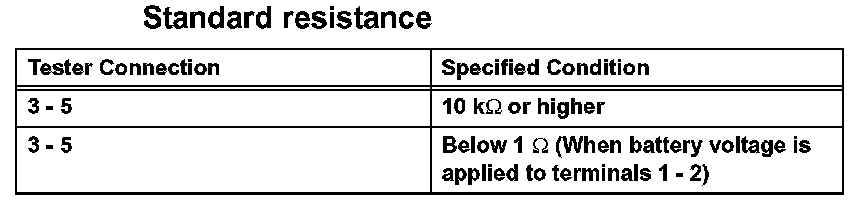

Measure the resistance according to the value(s) in the table.
