Map Light: Testing and Inspection

INSPECTION




1. INSPECT MAP LIGHT ASSEMBLY

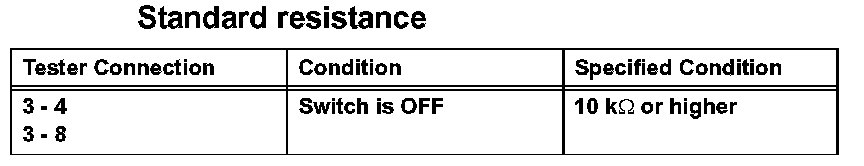

a. Measure the resistance according to the value(s) in the table.
