Overhaul

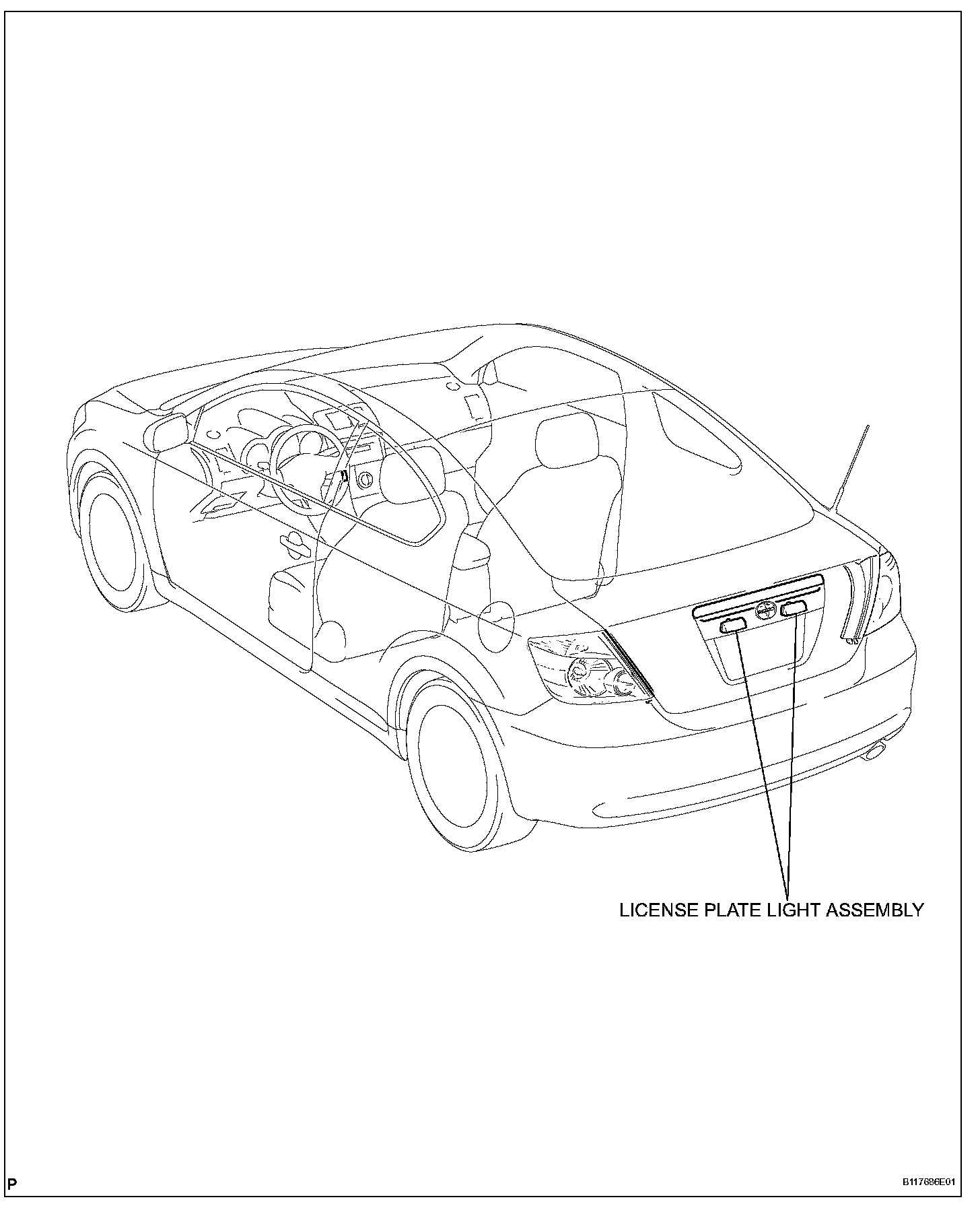

License Plate Light Assembly:

DISASSEMBLY

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.




1. REMOVE LICENSE PLATE LIGHT ASSEMBLY
a. Disconnect the connector.

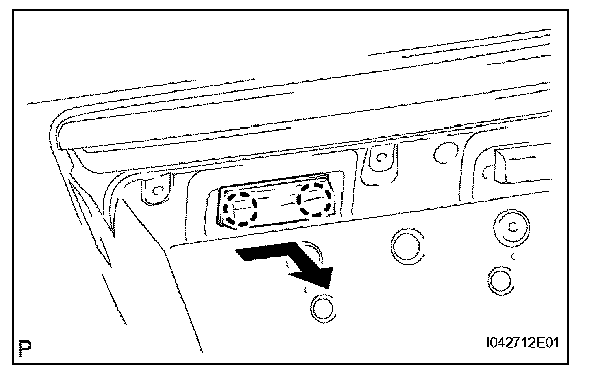

b. Detach the 2 claws and remove the license plate light as shown in the illustration.




2. REMOVE LICENSE PLATE LIGHT BULB

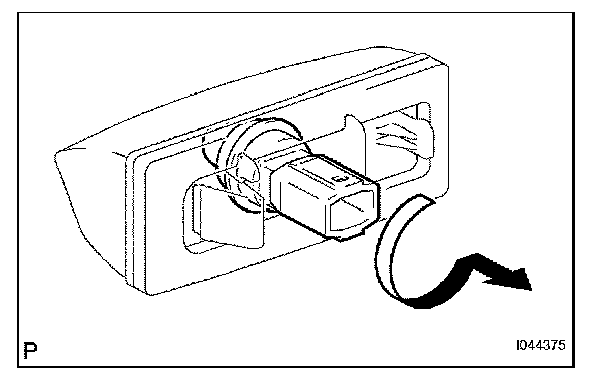

a. Turn in the direction indicated by the arrow and remove the license plate light bulb, and the license plate light socket and wire as a unit.
b. Remove the license plate light bulb from the license plate light socket and wire.

3. REMOVE LICENSE PLATE LIGHT LENS

REASSEMBLY

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. INSTALL LICENSE PLATE LIGHT LENS
2. INSTALL LICENSE PLATE LIGHT BULB
a. Install the license plate light bulb to the license plate light socket.
b. Install the light bulb, light socket and wire as a unit.
