Key Cylinder Lamp: Service and Repair

Ignition Key Cylinder Light:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STEERING COLUMN COVER

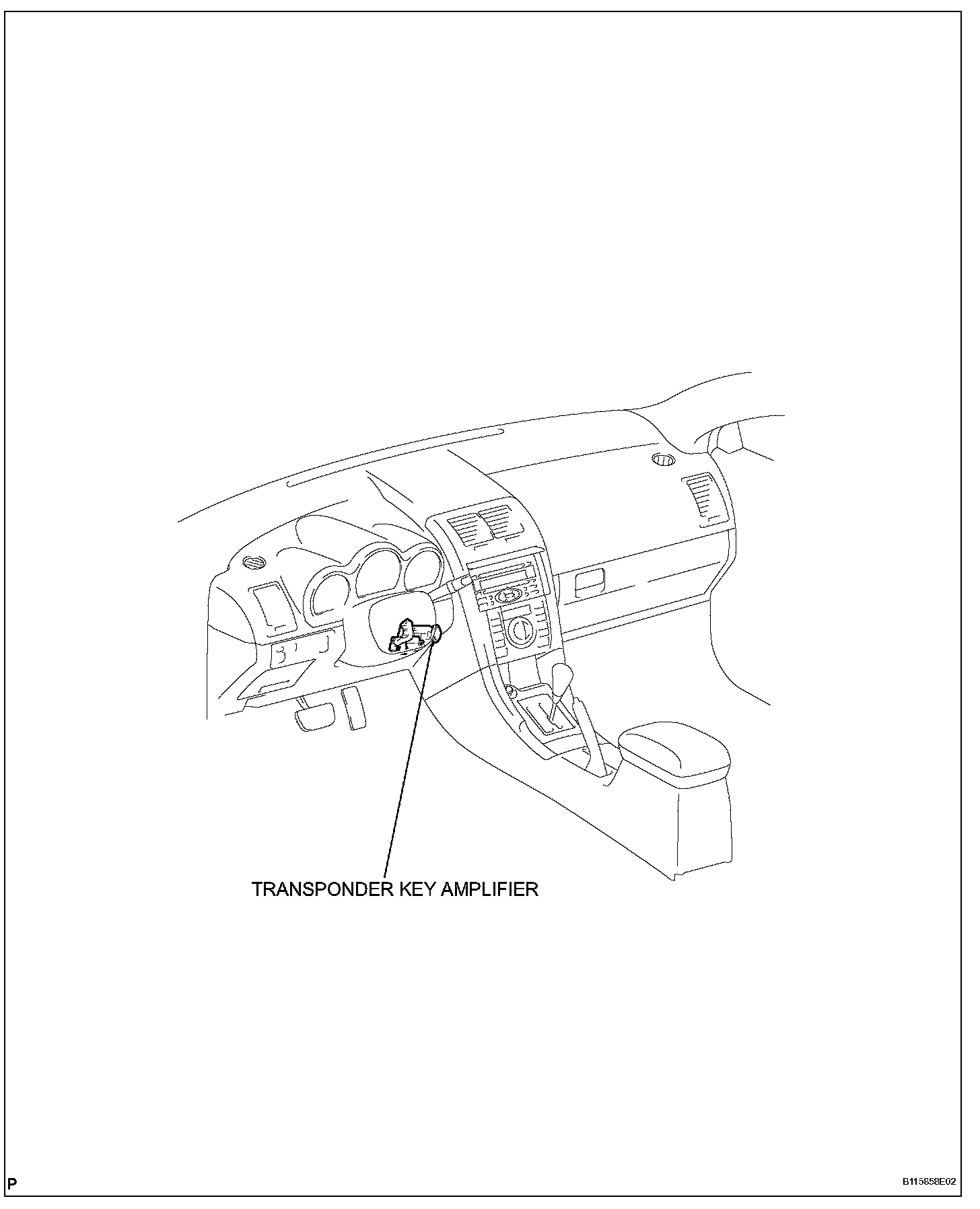

3. REMOVE TRANSPONDER KEY AMPLIFIER

INSTALLATION

1. INSTALL STEERING COLUMN COVER
2. INSTALL TRANSPONDER KEY AMPLIFIER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
