Low Pitched Horn

Low Pitched Horn:

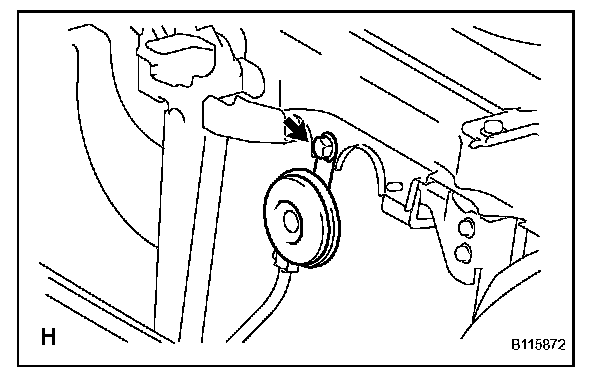

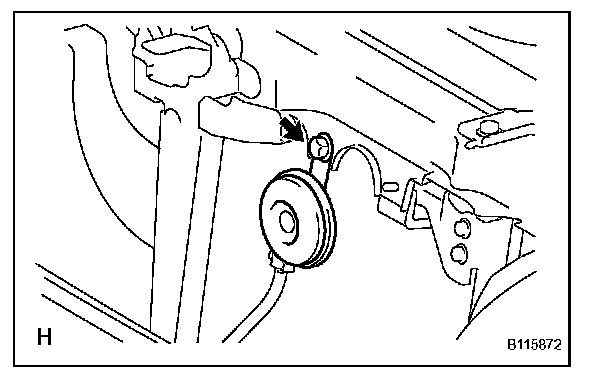

REMOVAL




1. REMOVE LOW PITCHED HORN
a. Disconnect the connector.
b. Remove the bolt and horn.

INSTALLATION

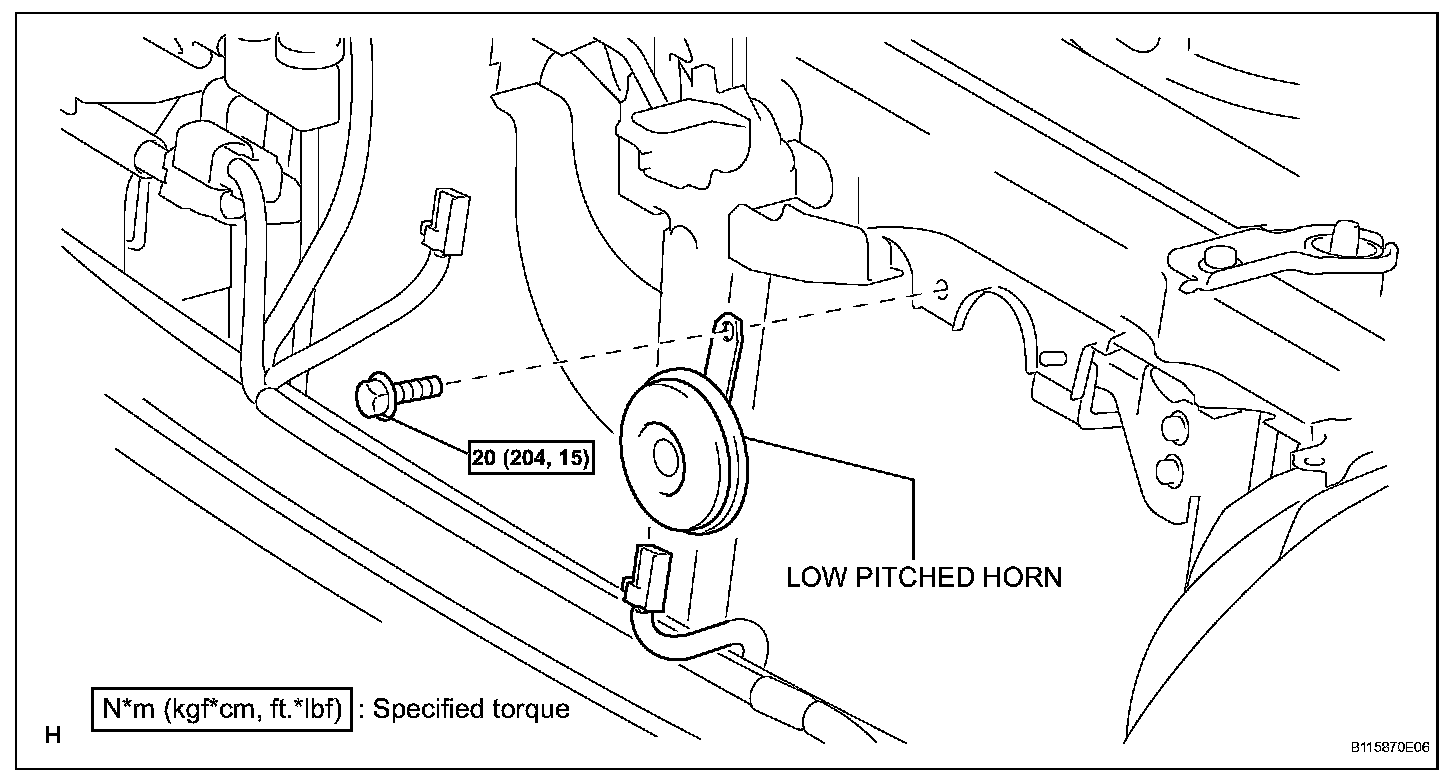

1. INSTALL LOW PITCHED HORN
a. Attach the horn stay to the body panel and then install the horn with the bolt.
Torque:20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the connector
