High Pitched Horn

High Pitched Horn:

REMOVAL

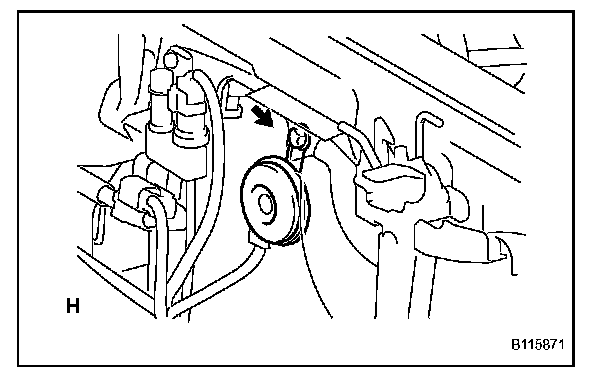

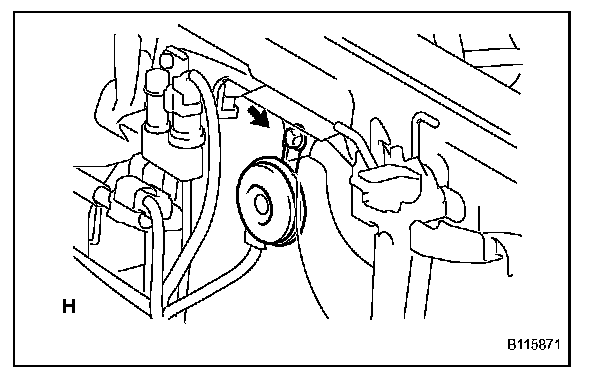

1. REMOVE HIGH PITCHED HORN
a. Disconnect the connector.
b. Remove the bolt and horn.

INSTALLATION

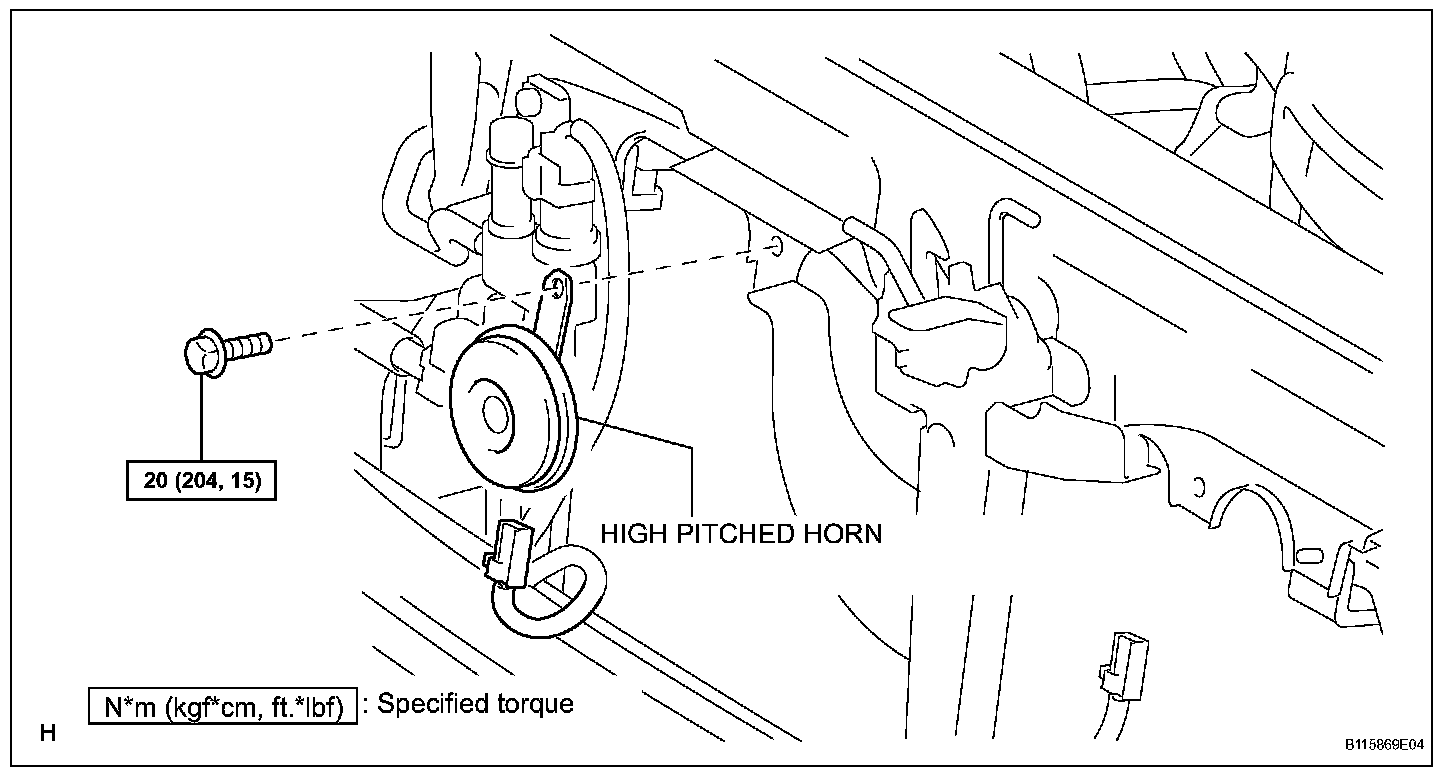

1. INSTALL HIGH PITCHED HORN
a. Attach the horn stay to the body panel and then install the horn with the bolt.
Torque:20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the connector.
