Procedures

REPAIR

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. INSTALL HEADLIGHT PROTECTOR RETAINER UPPER LH

HINT:
- If the installation area of the headlight is damaged, use the supply bracket for low-cost repair.
- Ensure that the headlight assembly is not damaged.

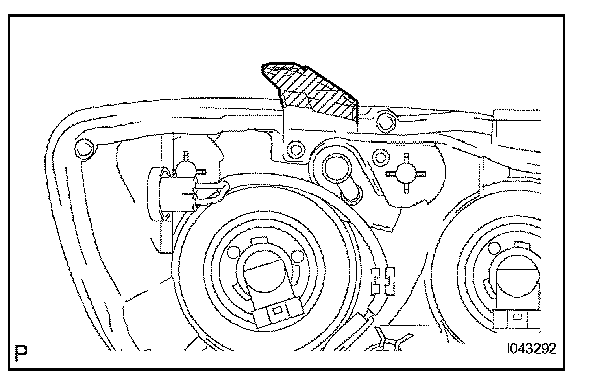

a. Cut off the part shaded in the illustration and smooth with sandpaper.

NOTE: After cutting off the part, place the headlight protector retainer upper against the bosses and gradually file away until installation is possible.

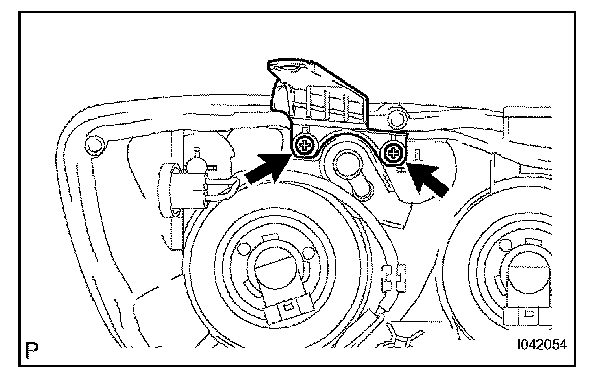

b. Install the headlight protector retainer upper LH with the 2 screws.
