Rear Room Light Assembly

Rear Room Light Assembly:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

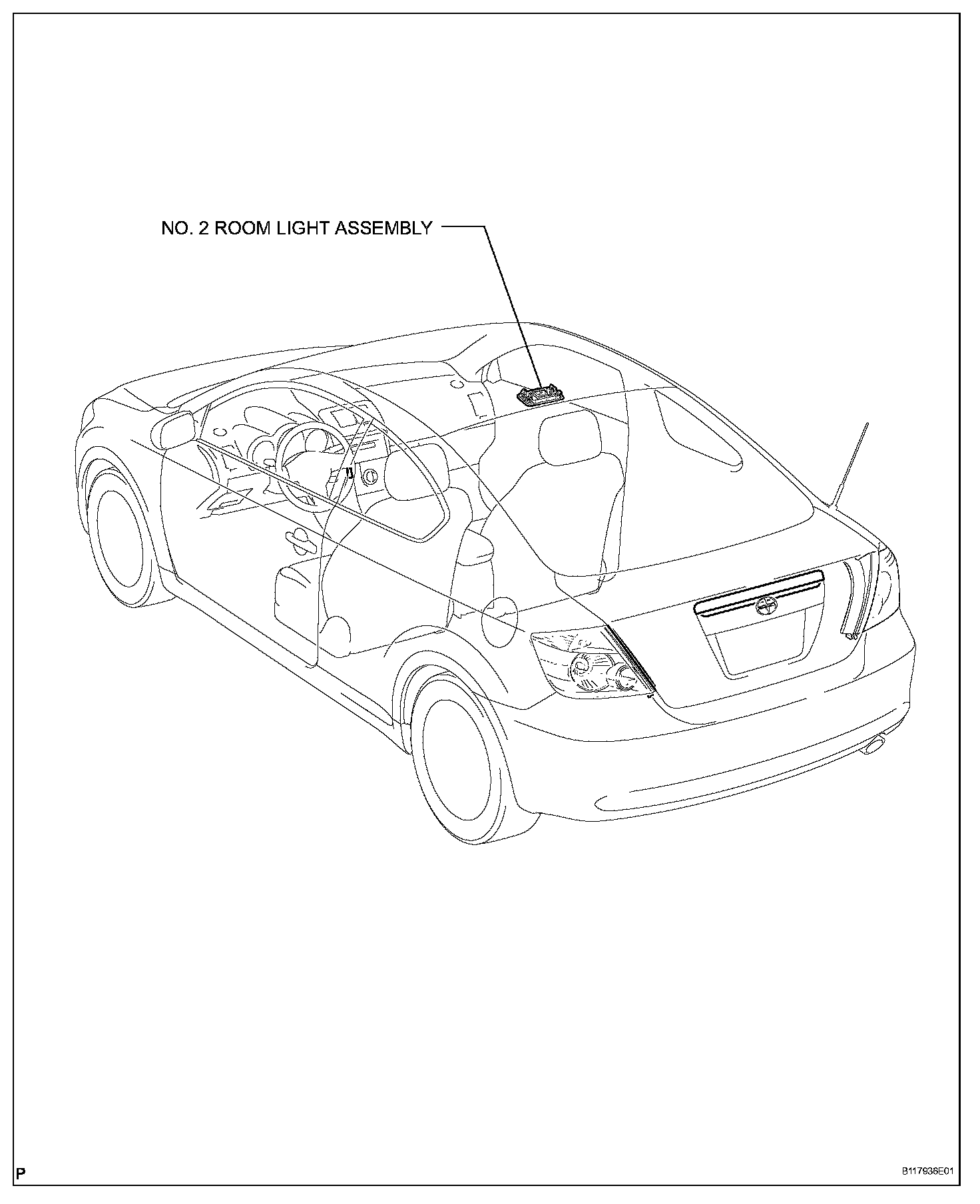

2. REMOVE NO.2 ROOM LIGHT ASSEMBLY

INSTALLATION

1. INSTALL NO.2 ROOM LIGHT ASSEMBLY
2. DISCONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
