Center Mounted Brake Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

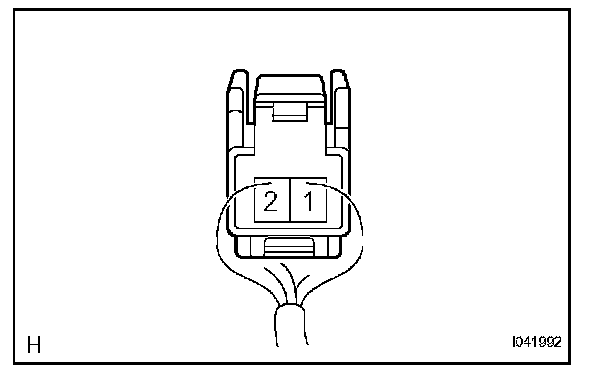

1. INSPECT CENTER STOP LIGHT ASSEMBLY

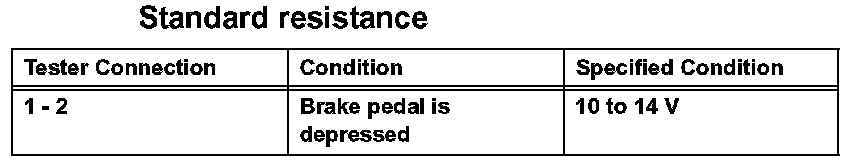

a. Measure the voltage according to the value(s) in the table.
