Scan Tool Testing and Procedures

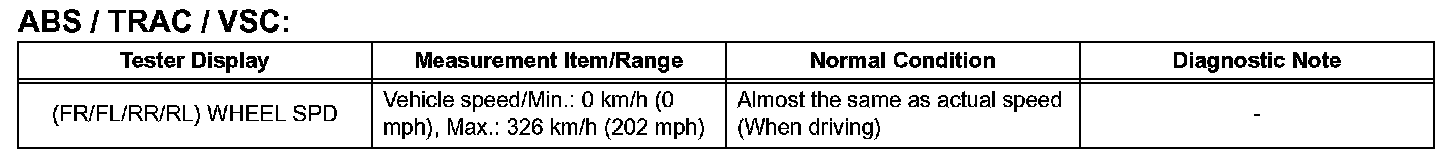

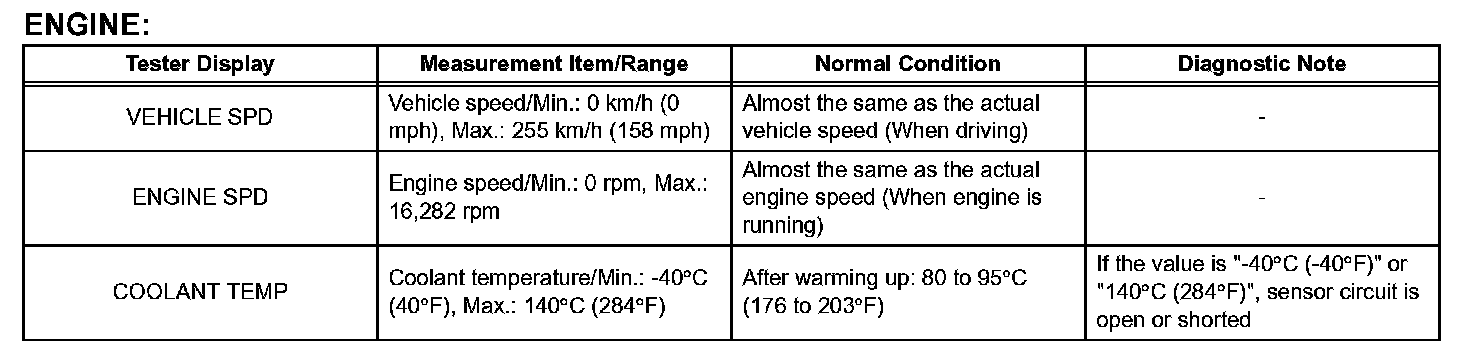

DATA LIST

HINT: According to DATA LIST display by the intelligent tester, you can read the values of the switches, sensors, actuators and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten work time.

a. Warm up the engine.
b. Turn the ignition switch off.
c. Connect the intelligent tester to the DLC3.
d. Turn the ignition switch ON.
e. Operate the intelligent tester according to the step on the display and select "DATA LIST".
