Pinout Values and Diagnostic Parameters

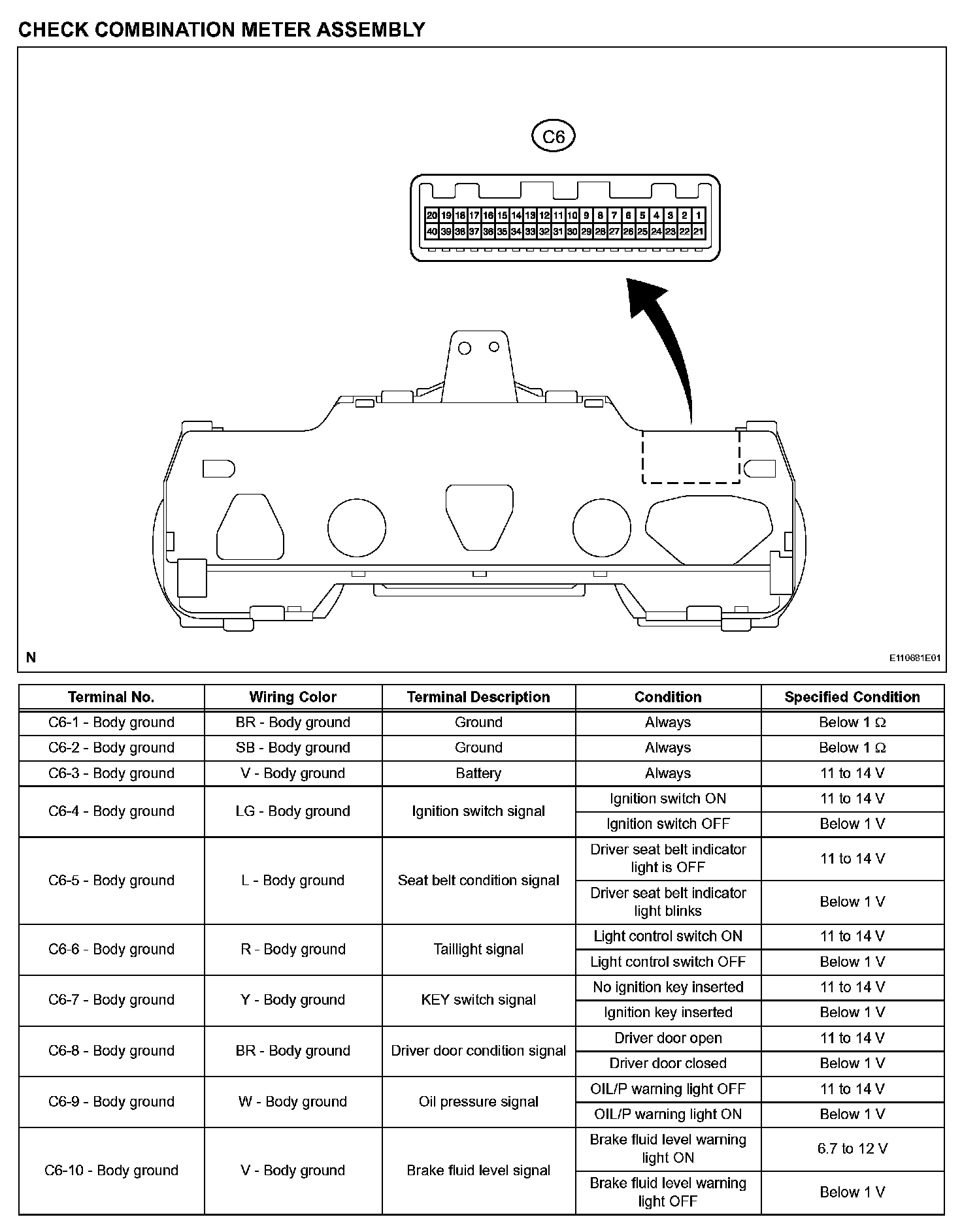

Terminals Of Control Module/Pinouts-Check Combination Meter Assembly (Part 1):

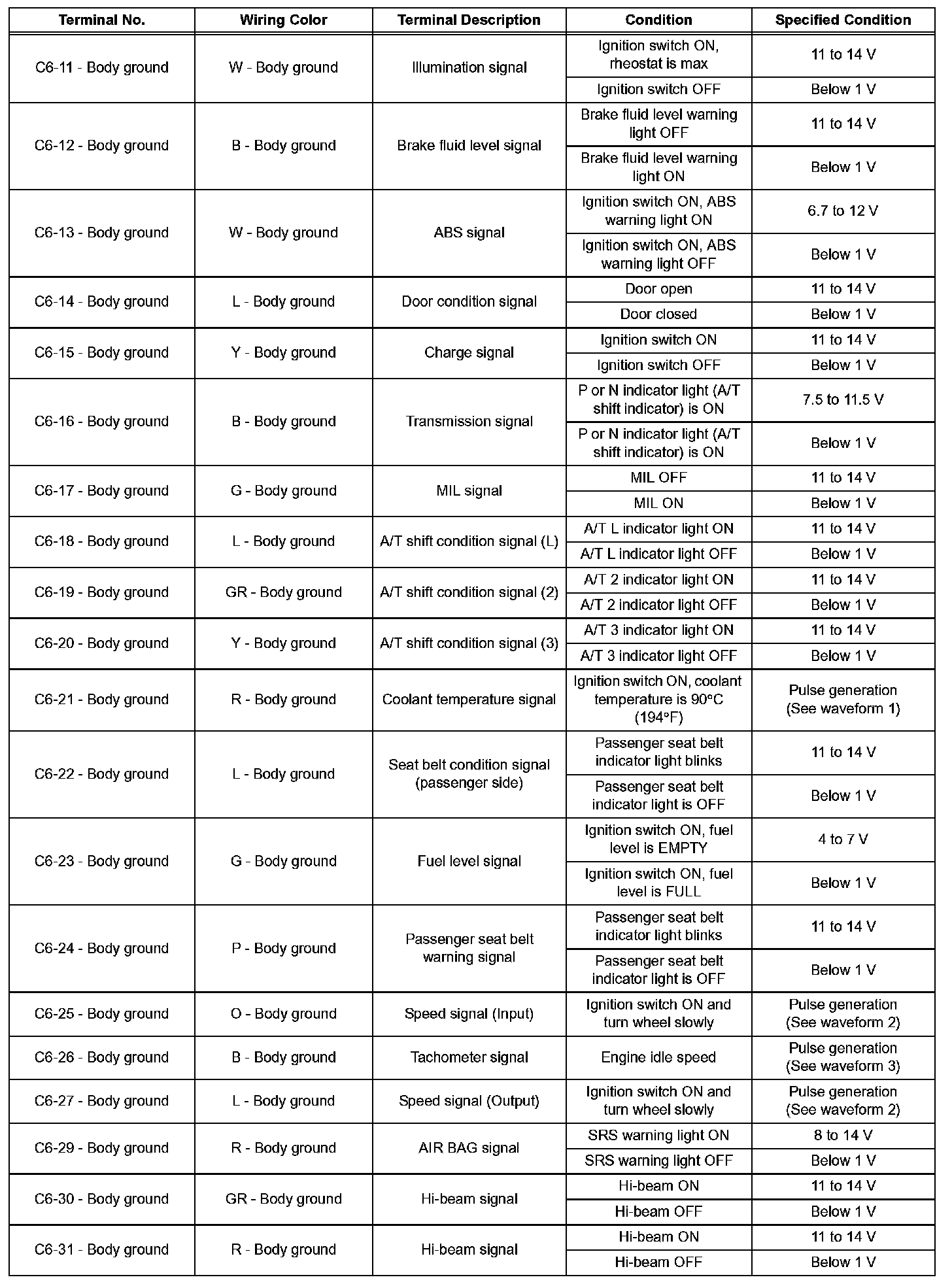

Terminals Of Control Module/Pinouts-Check Combination Meter Assembly (Part 2):

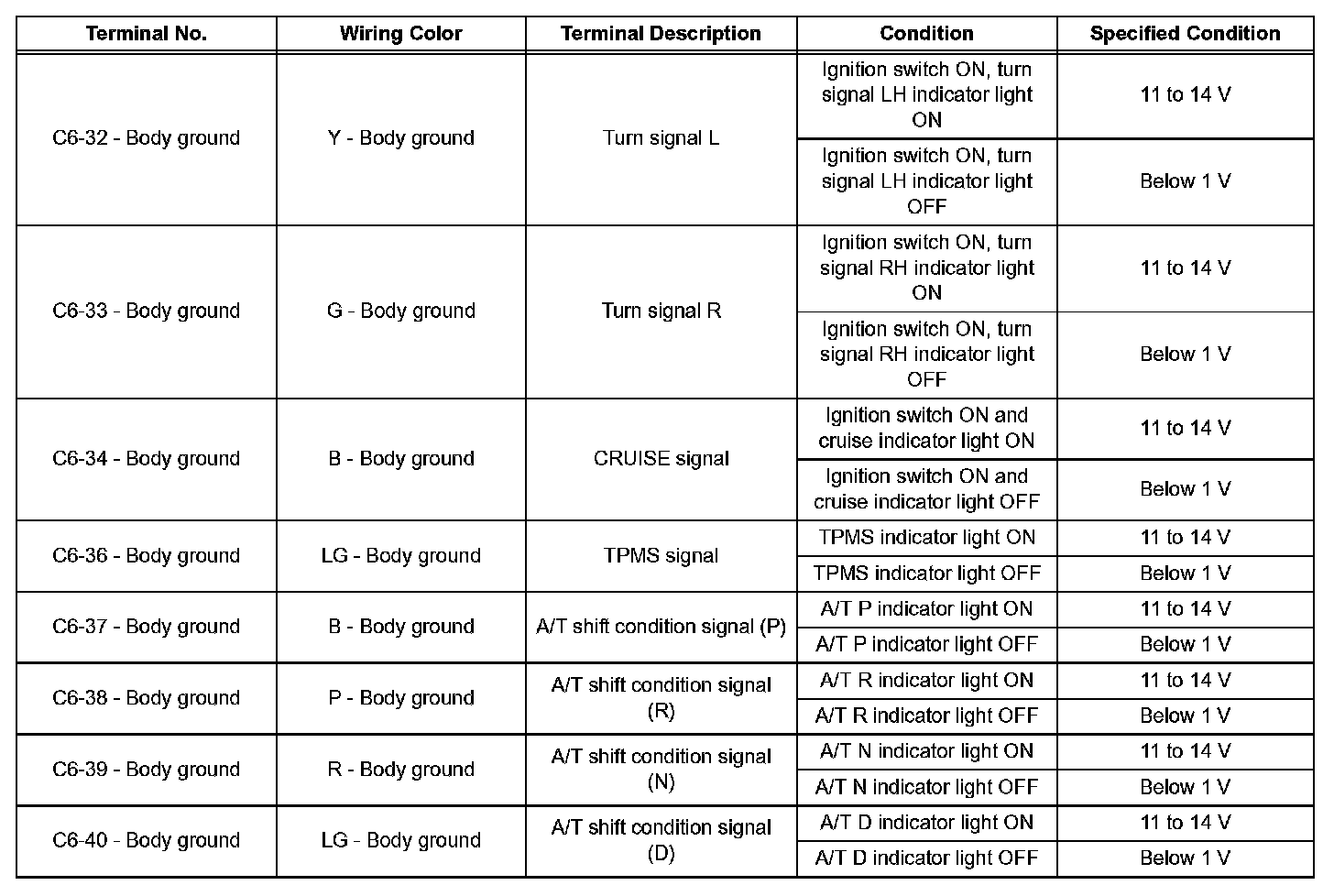

Terminals Of Control Module/Pinouts-Check Combination Meter Assembly (Part 3):

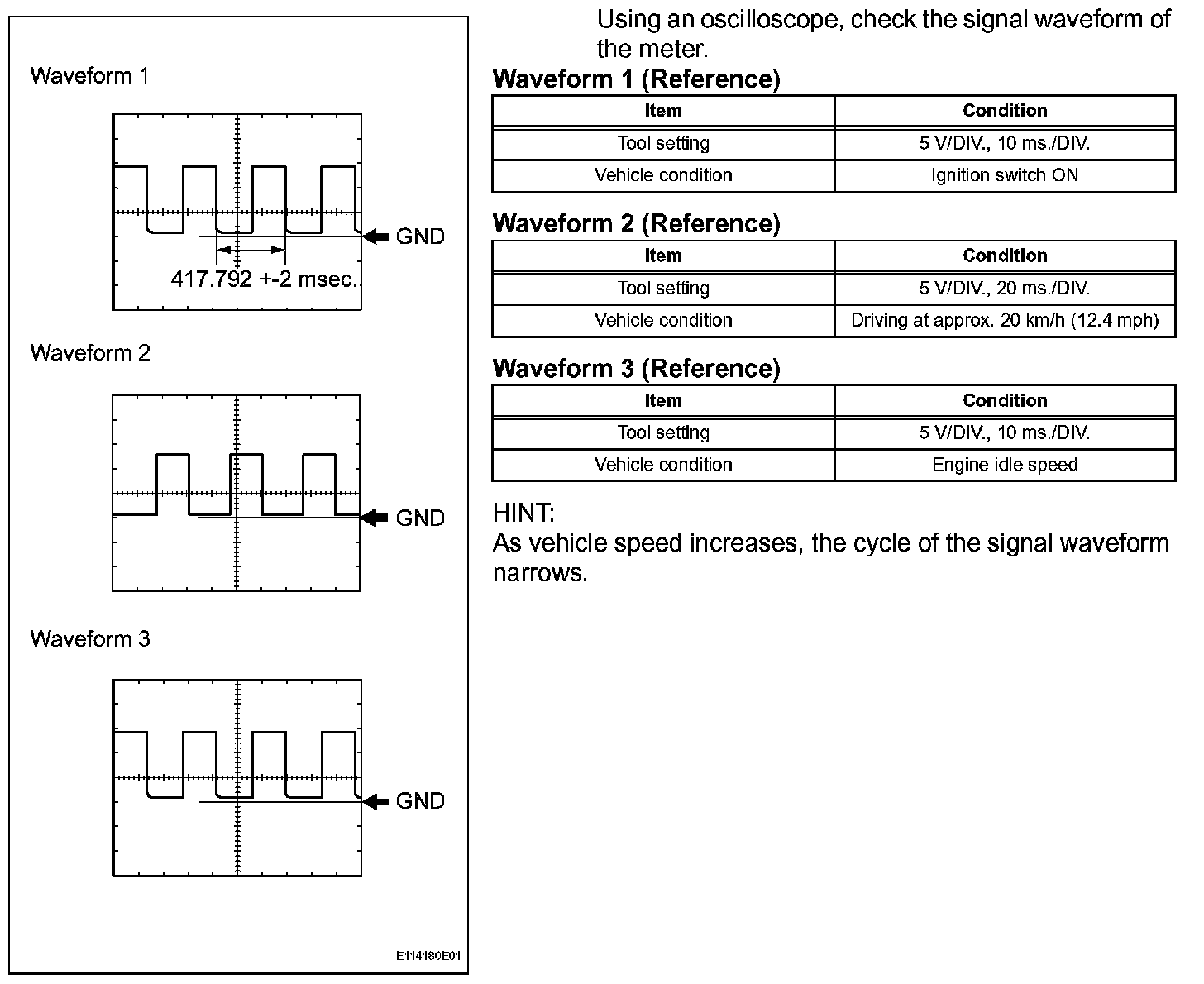

Oscilloscope Waveforms:

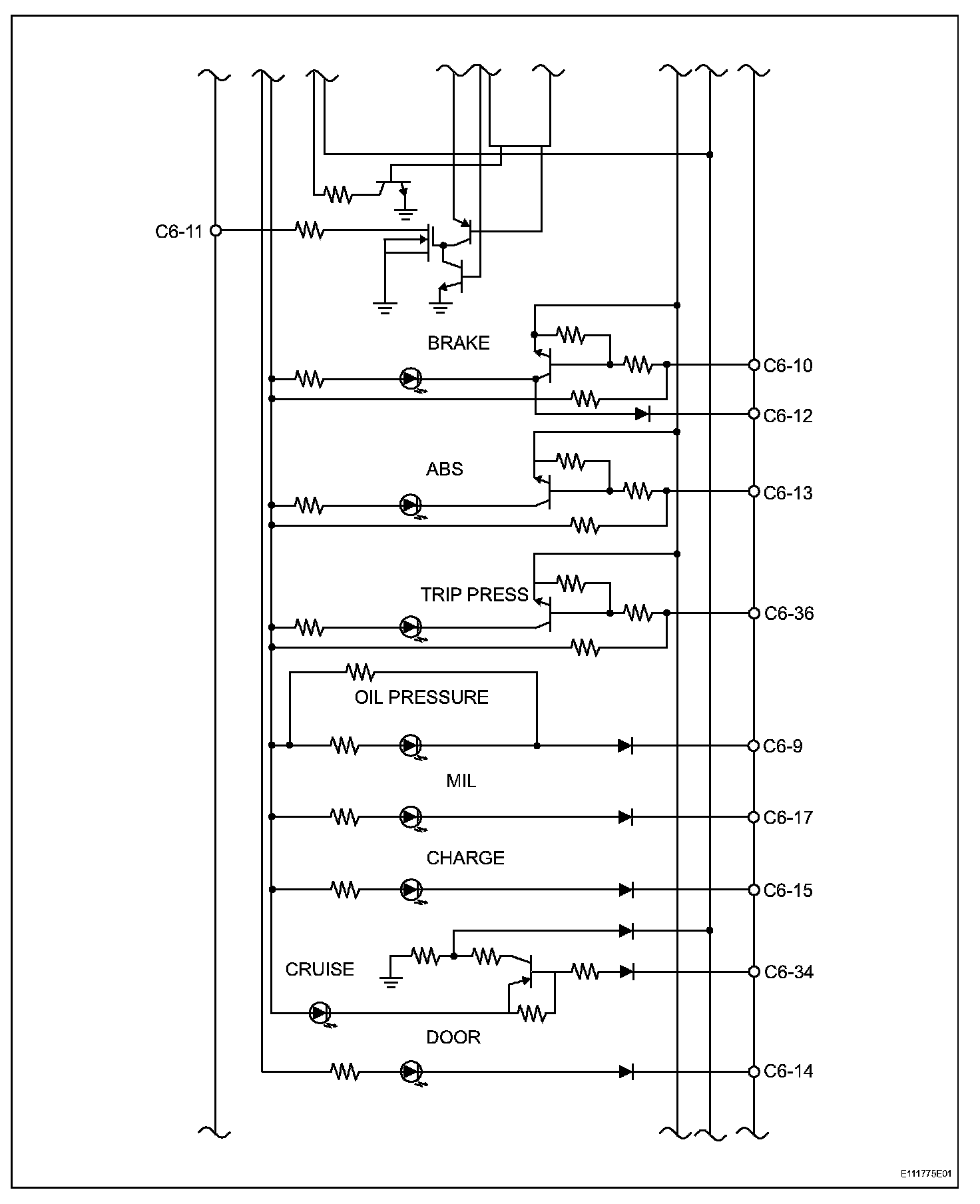

Terminals Of Control Module/Pinouts (Part 1):

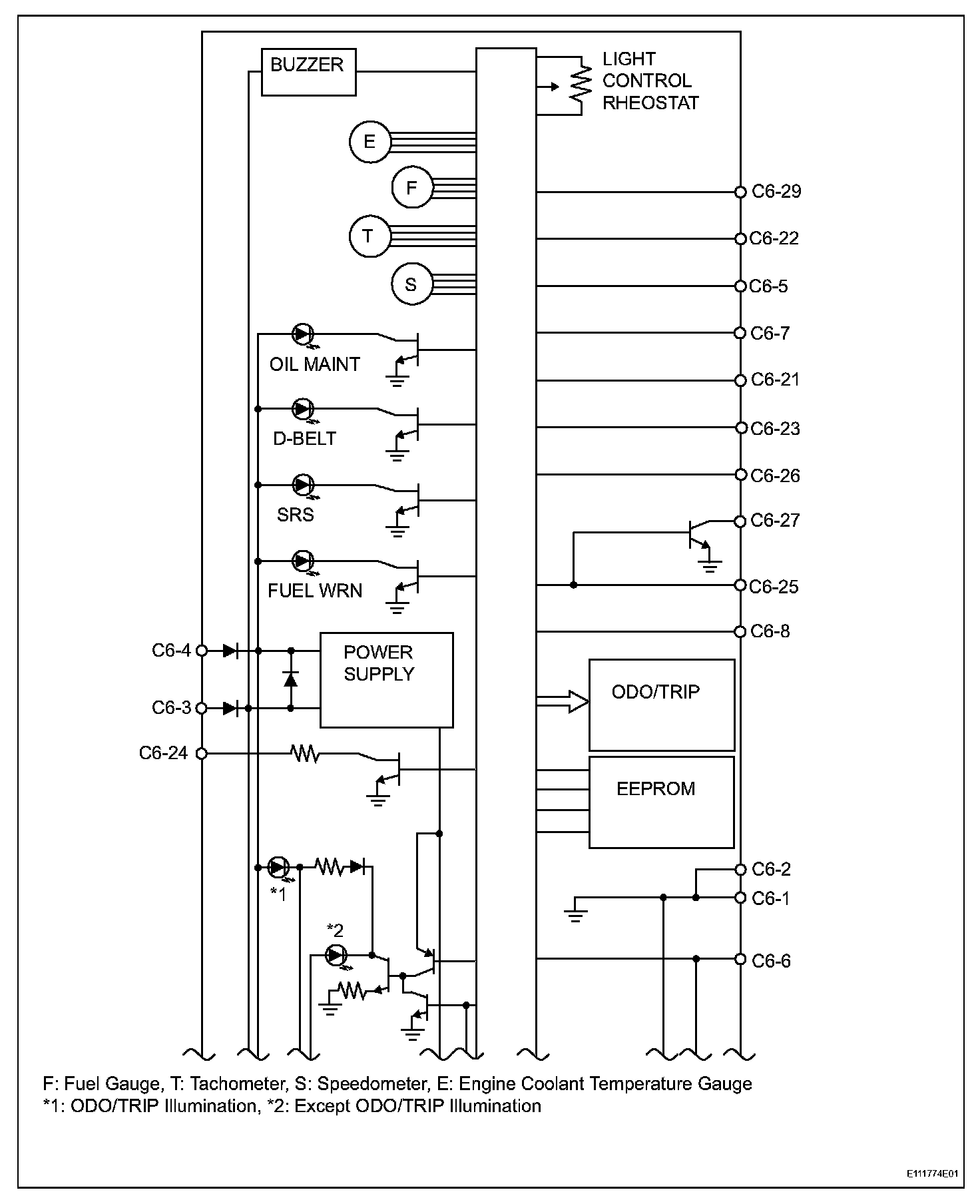

Terminals Of Control Module/Pinouts (Part 2):

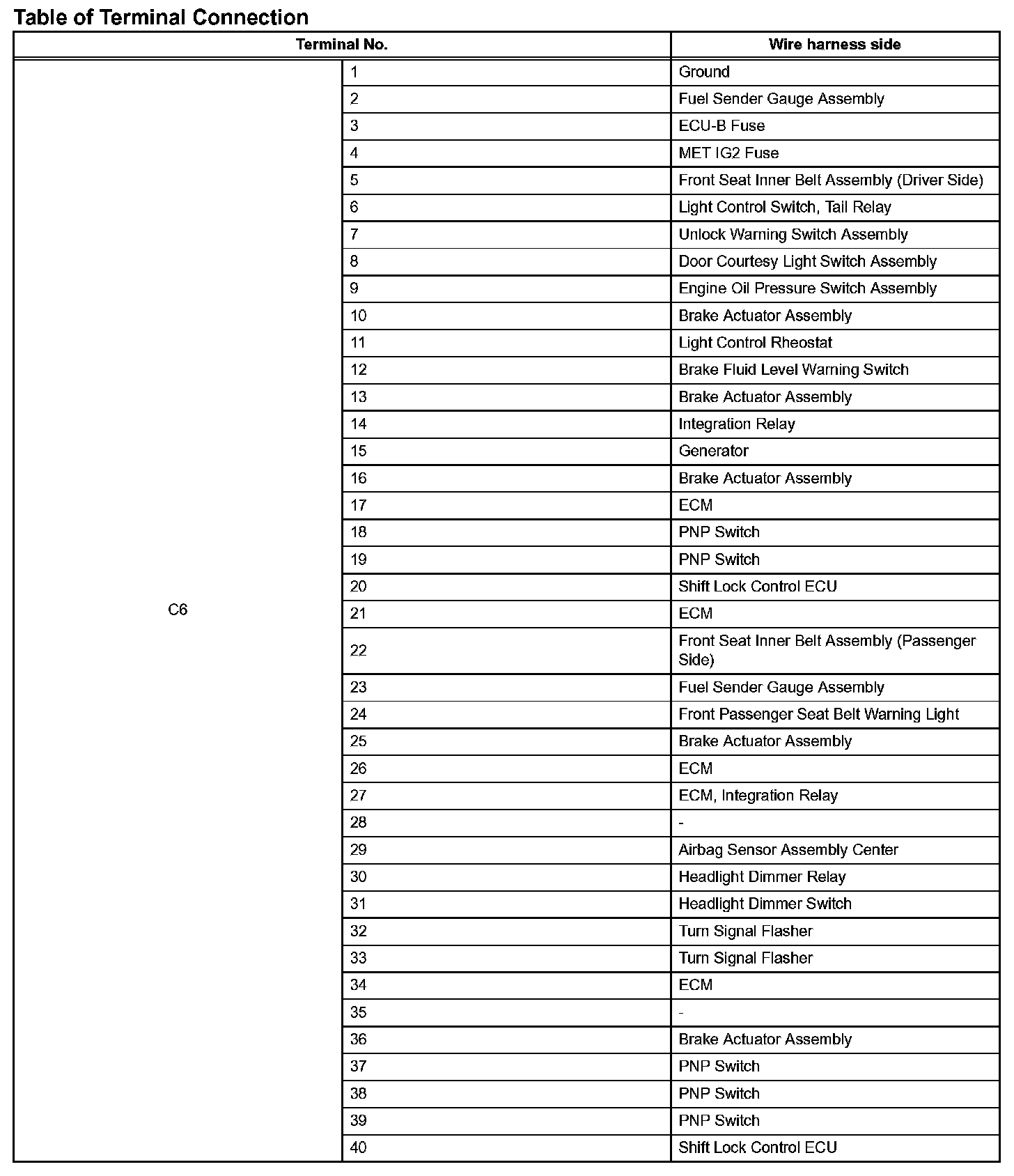

Terminals Of Control Module/Pinouts (Part 3):

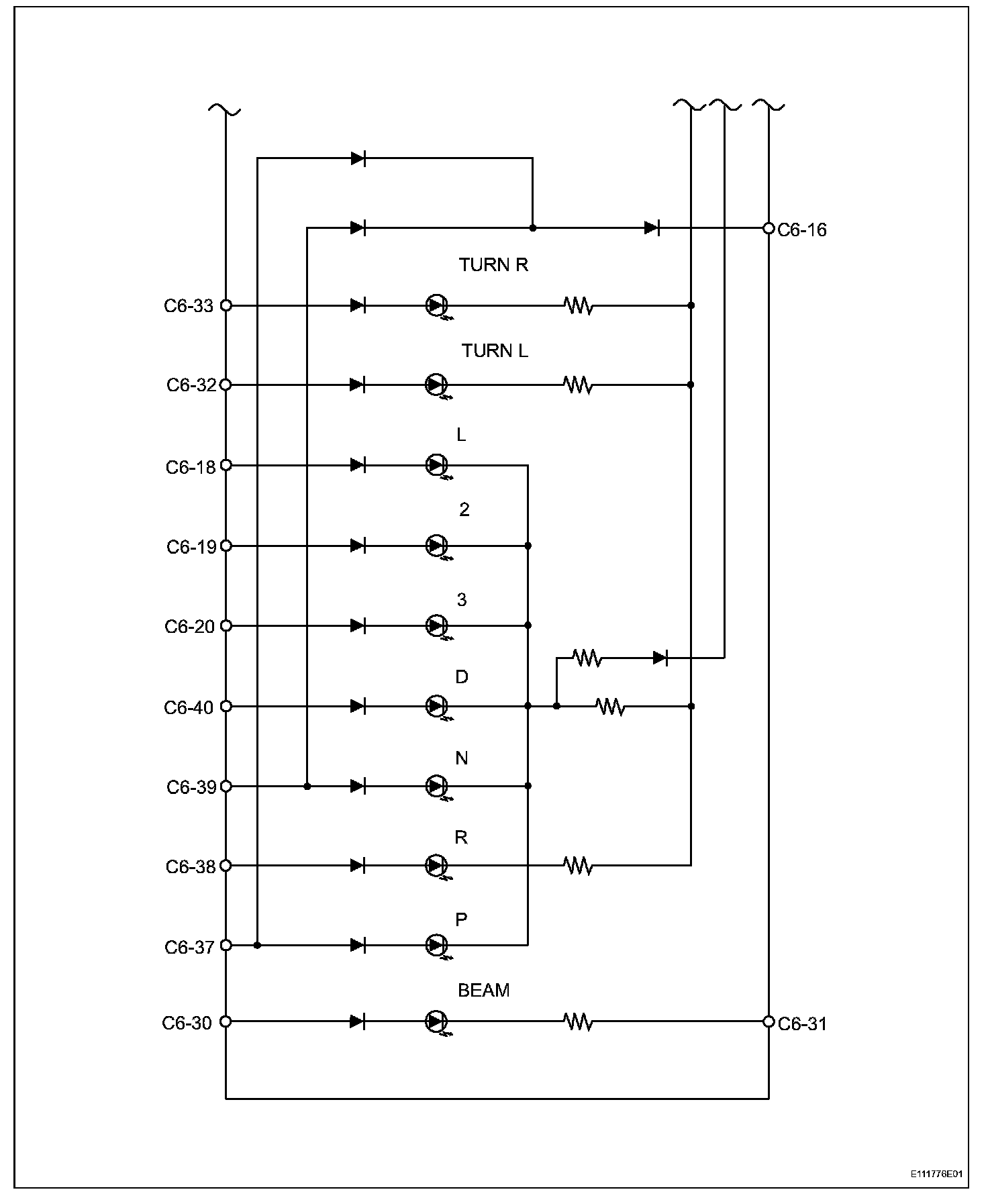

Terminals Of Control Module/Pinouts (Part 4):
