Speedometer Malfunction

Speedometer Malfunction

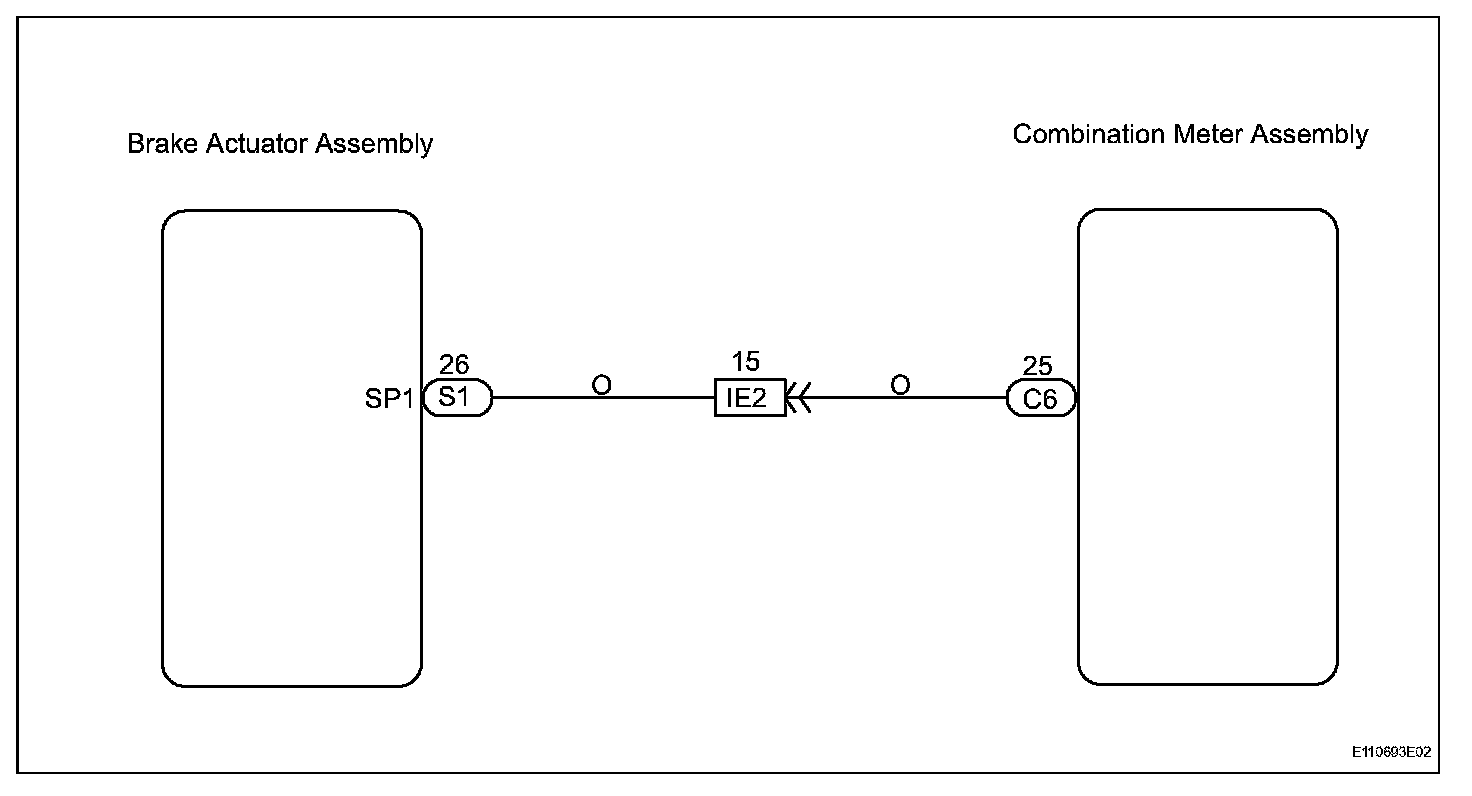

Wiring Diagram:





INSPECTION PROCEDURE

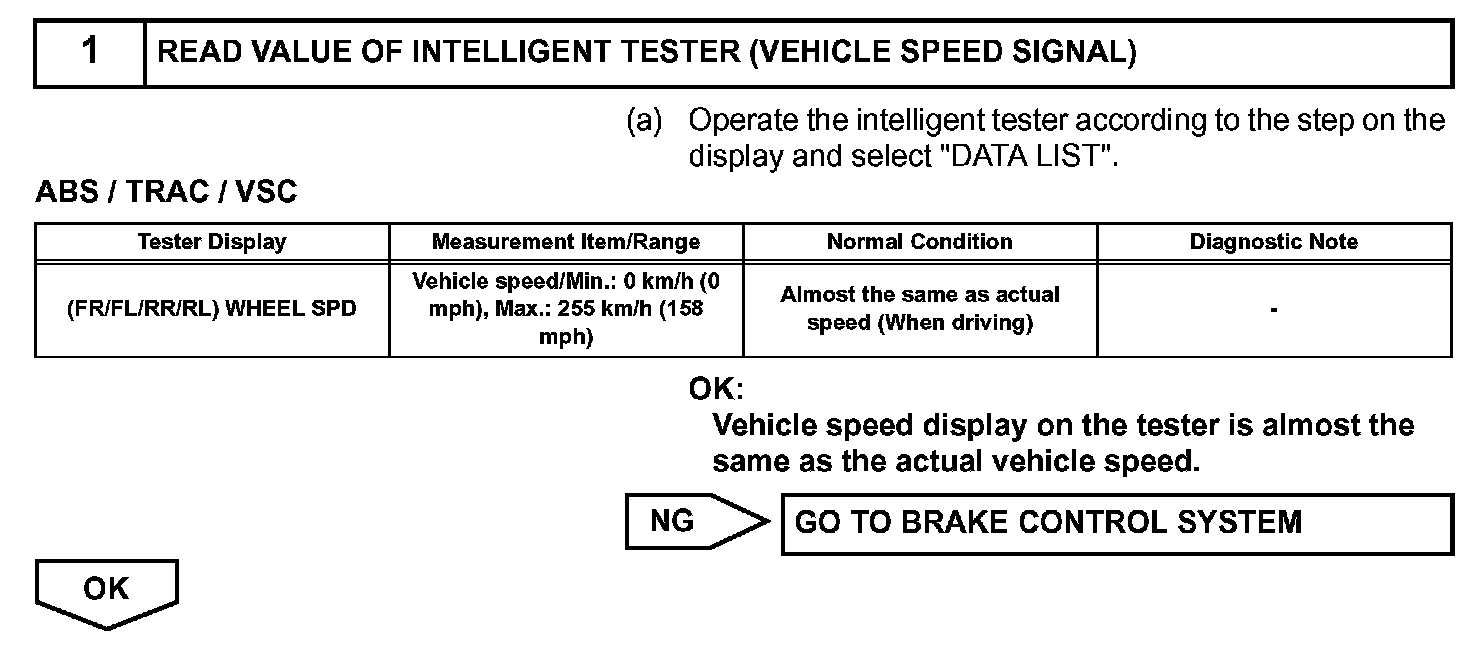

Step 1:

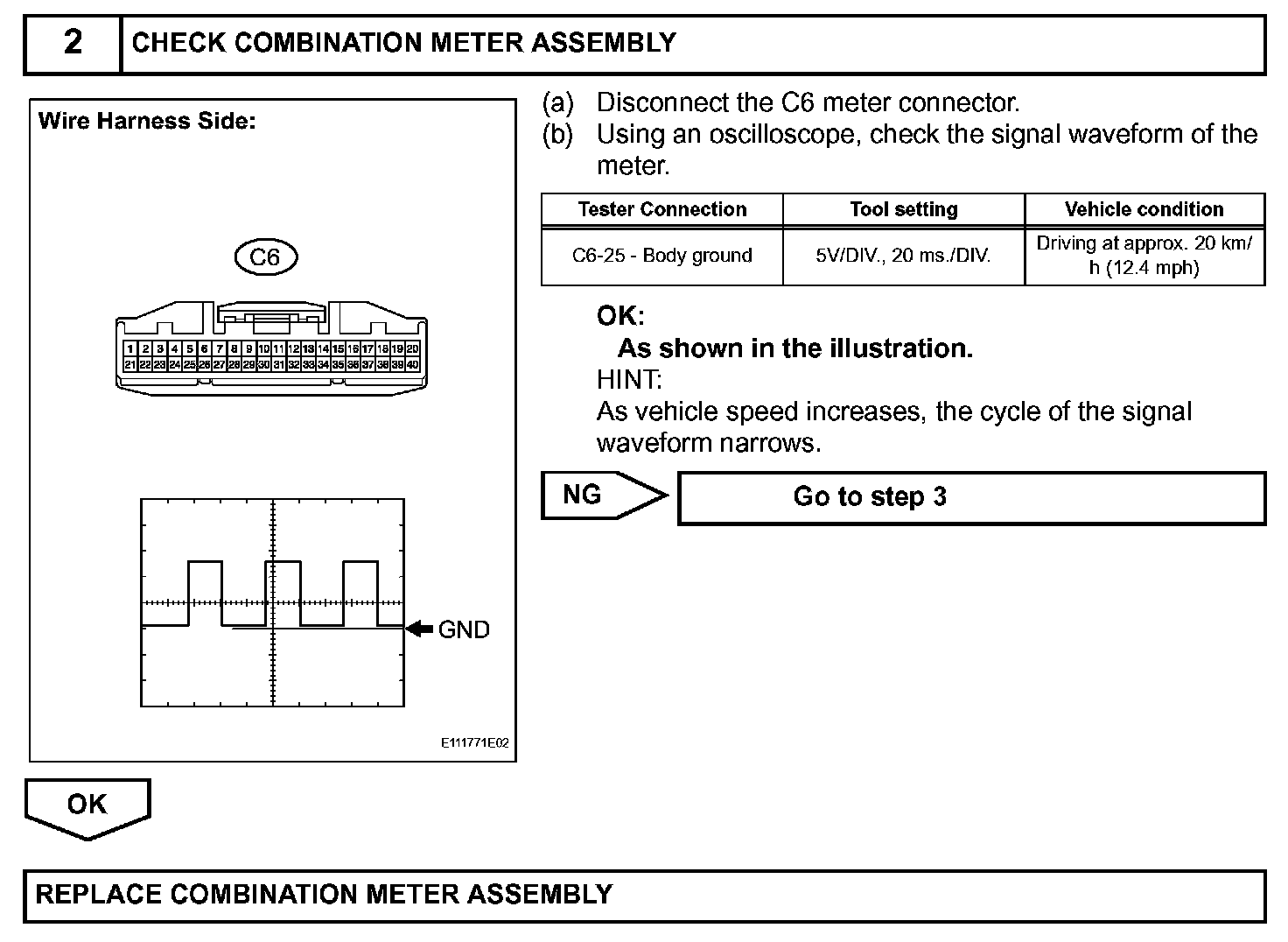

Step 2:

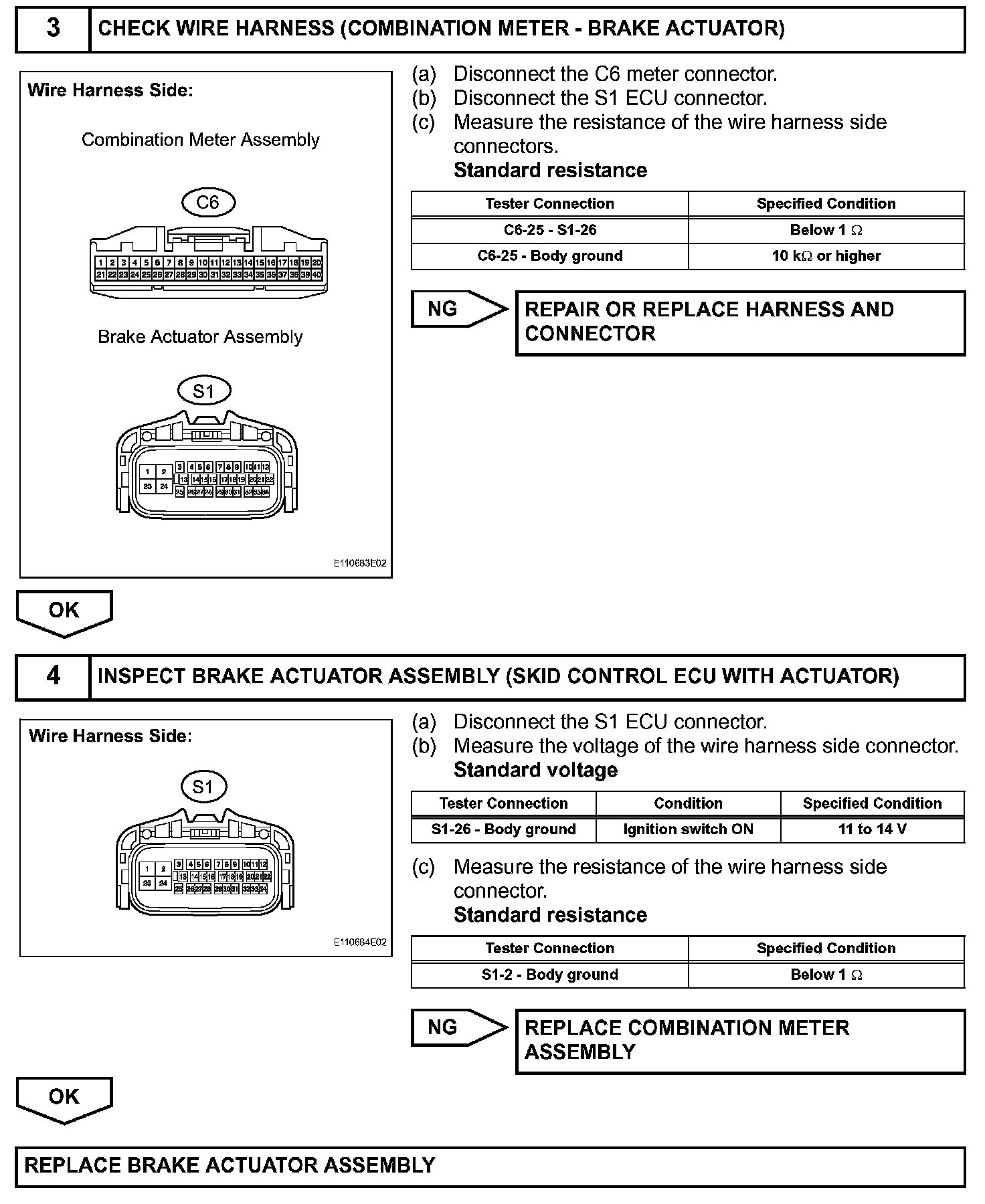

Step 3-4:
