Engine Coolant Temperature Gauge Malfunction

Engine Coolant Temperature Gauge Malfunction

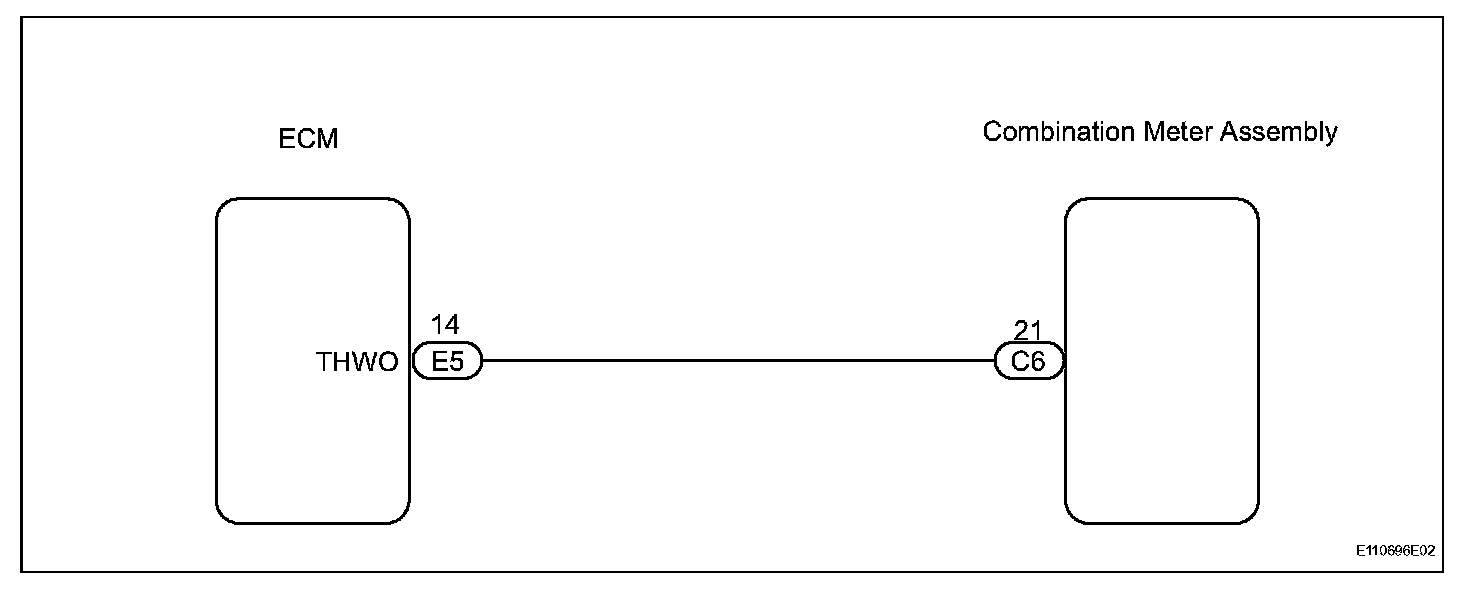

Wiring Diagram:





INSPECTION PROCEDURE

HINT: If there is an open or short the engine coolant temperature sensor circuit, the ECM outputs DTCs. Perform troubleshooting with the "SFI SYSTEM". Testing and Inspection

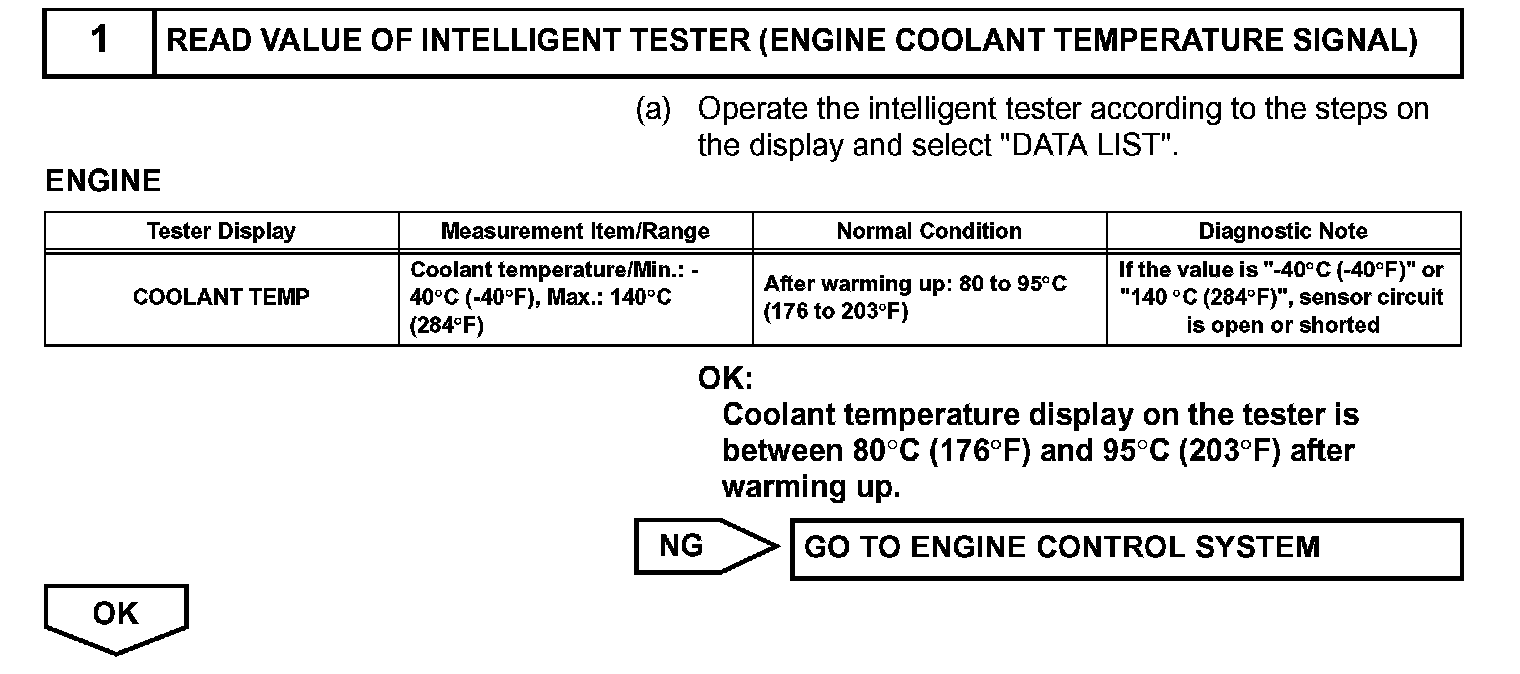

Step 1:

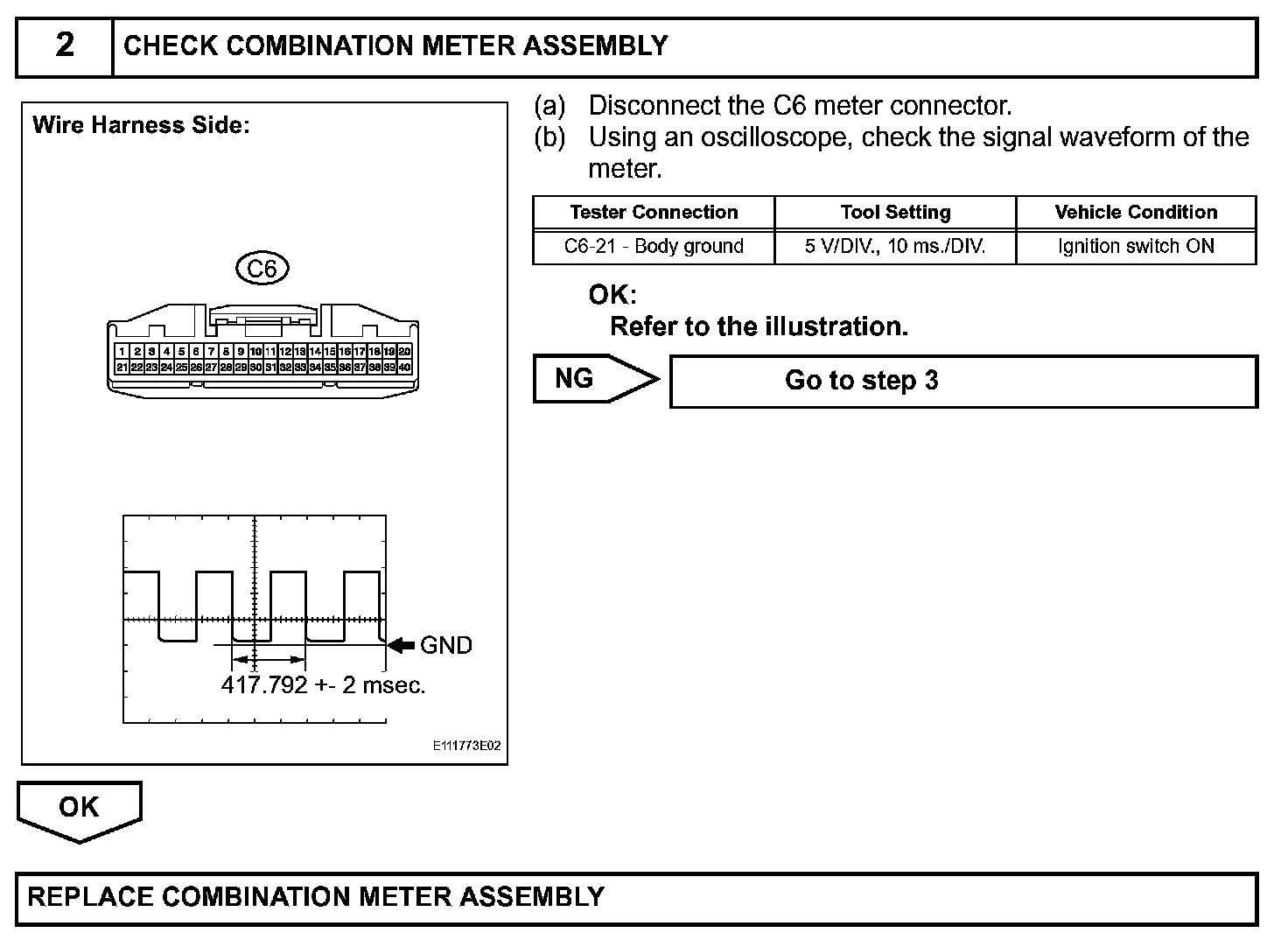

Step 2:

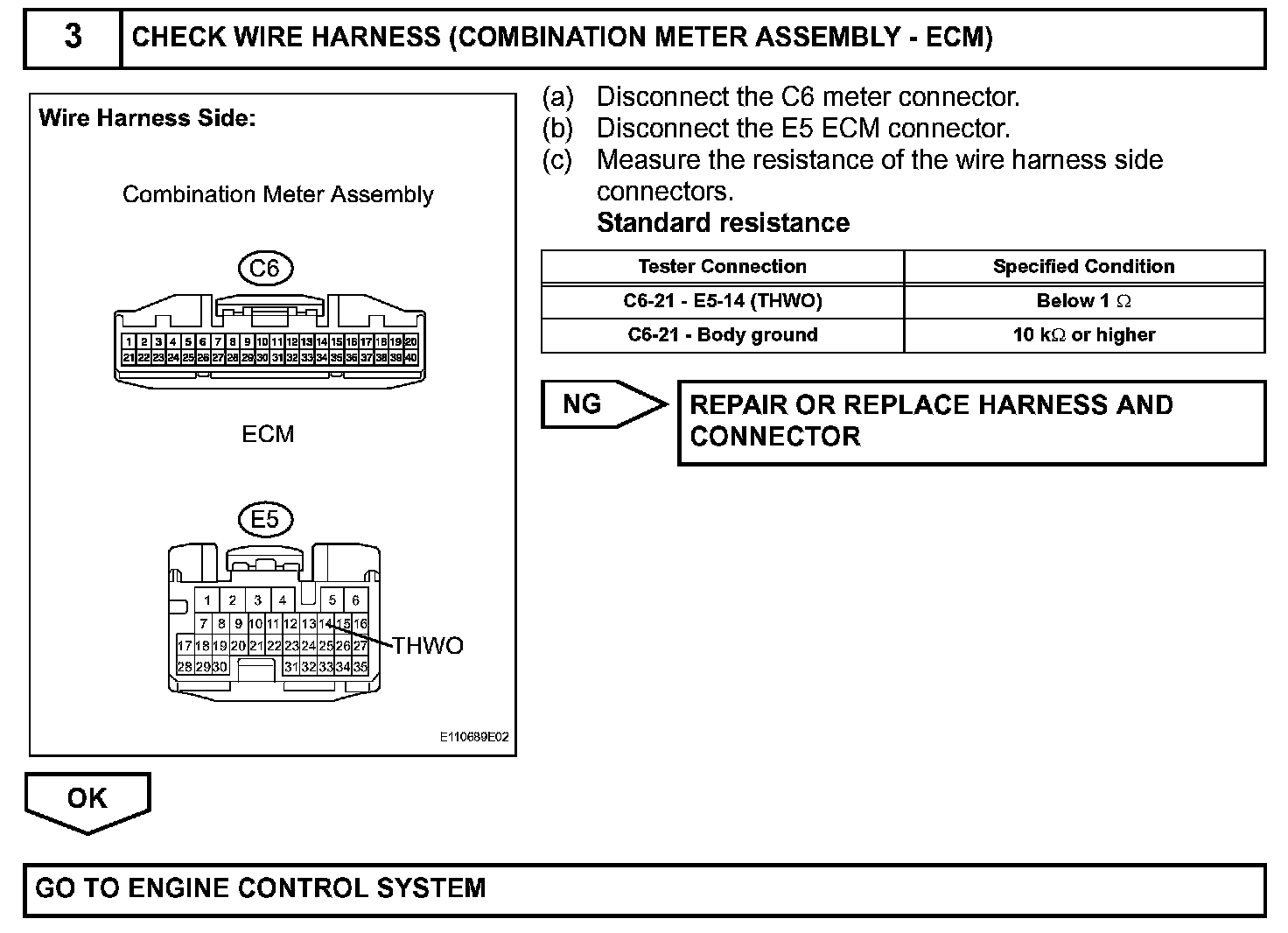

Step 3:
