Instrument Cluster / Carrier: Service and Repair

Combination Meter:

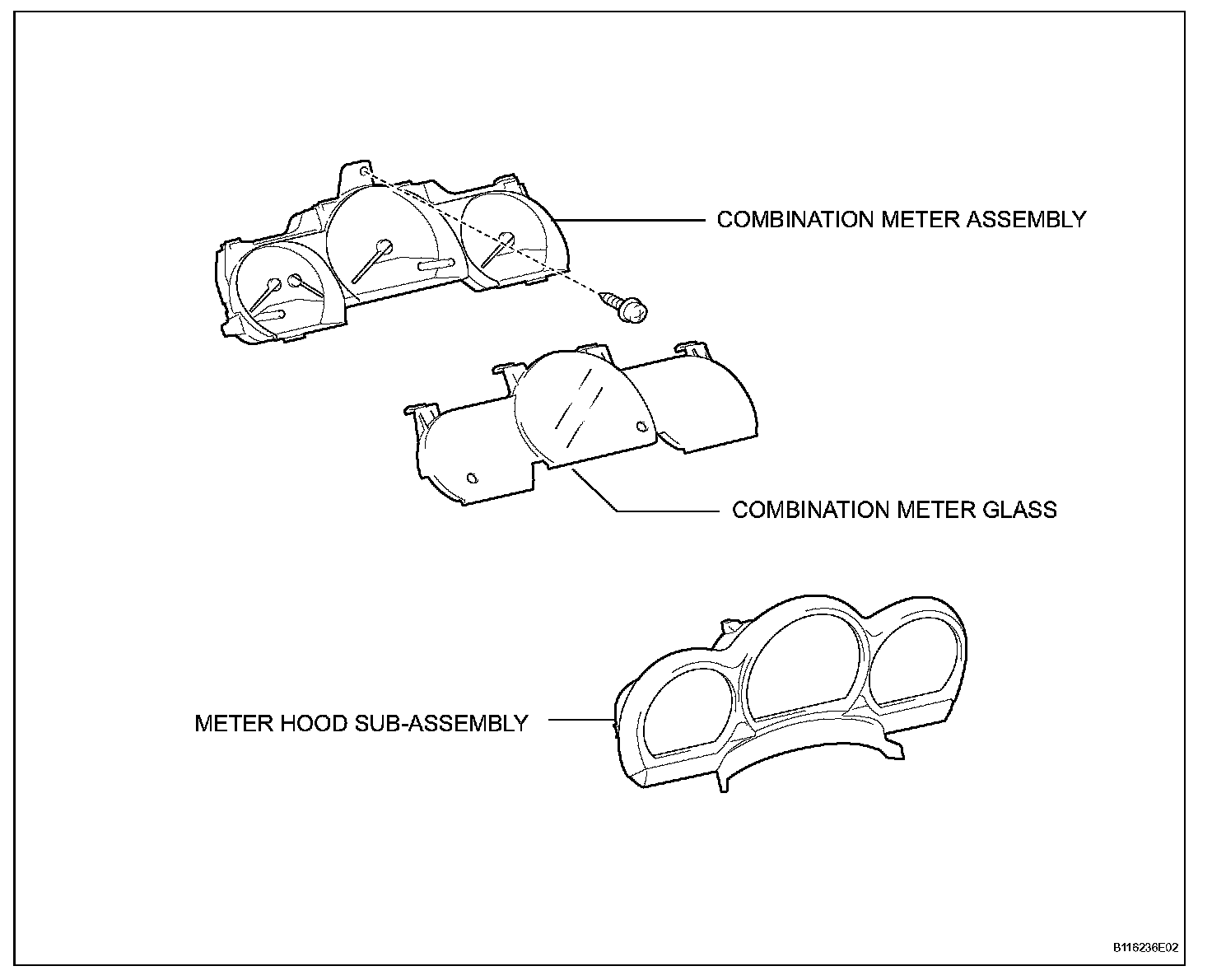

COMBINATION METER

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

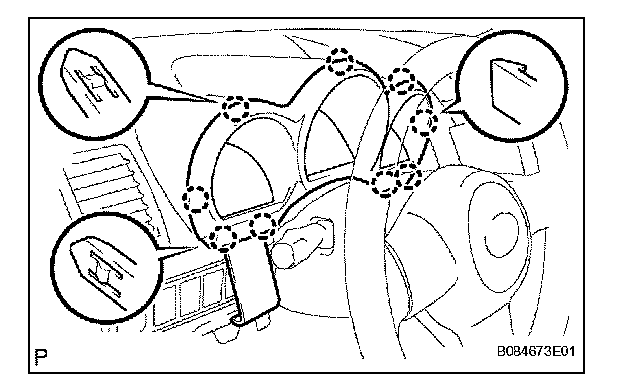

2. REMOVE METER HOOD SUB-ASSEMBLY




a. Tilt the steering column assembly down as far as possible.
b. Using a moulding remover, detach the 9 claws.

HINT: Tape the moulding remover tip before use.

c. Remove the meter hood.

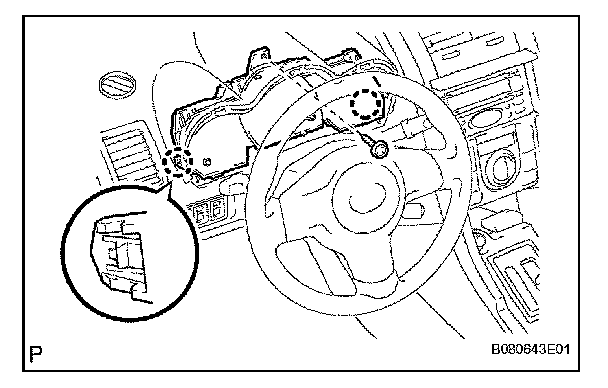

3. REMOVE COMBINATION METER ASSEMBLY




a. Remove the screw and detach the 2 claws.
b. Remove the combination meter and disconnect the connectors.

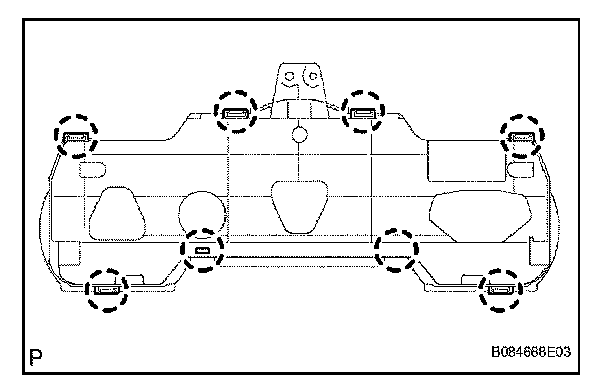

4. REMOVE COMBINATION METER GLASS




a. Detach the 8 claws, and then remove the combination meter glass.

INSTALLATION

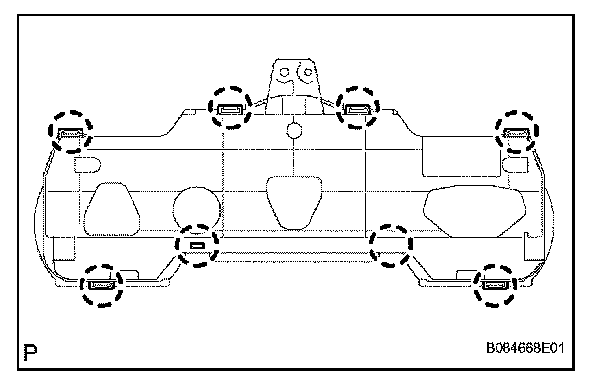

1. INSTALL COMBINATION METER GLASS




a. Attach the 8 claws to install the combination meter glass.

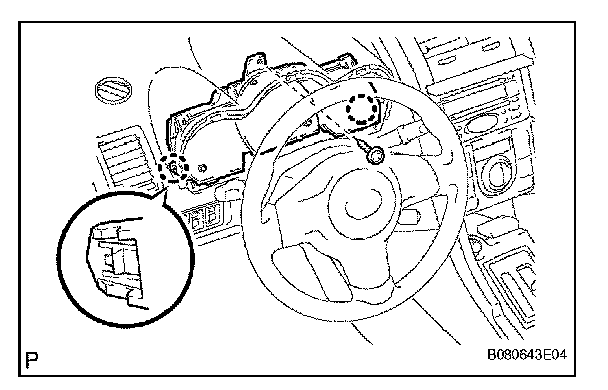

2. INSTALL COMBINATION METER ASSEMBLY




a. Connect the connector and install the combination meter.
b. Attach the 2 claws to install the screw.

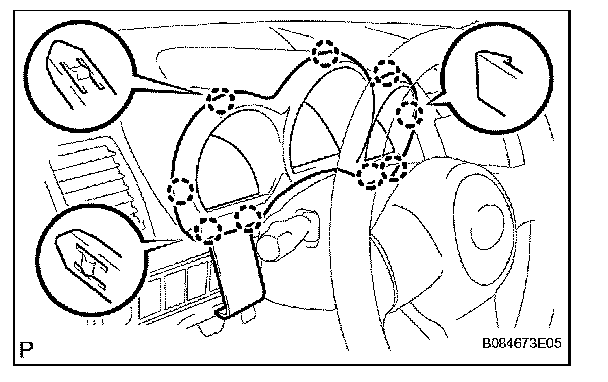

3. INSTALL METER HOOD SUB-ASSEMBLY




a. Attach the 9 claws to install the meter hood.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

6. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
