Cigarette Lighter: Service and Repair

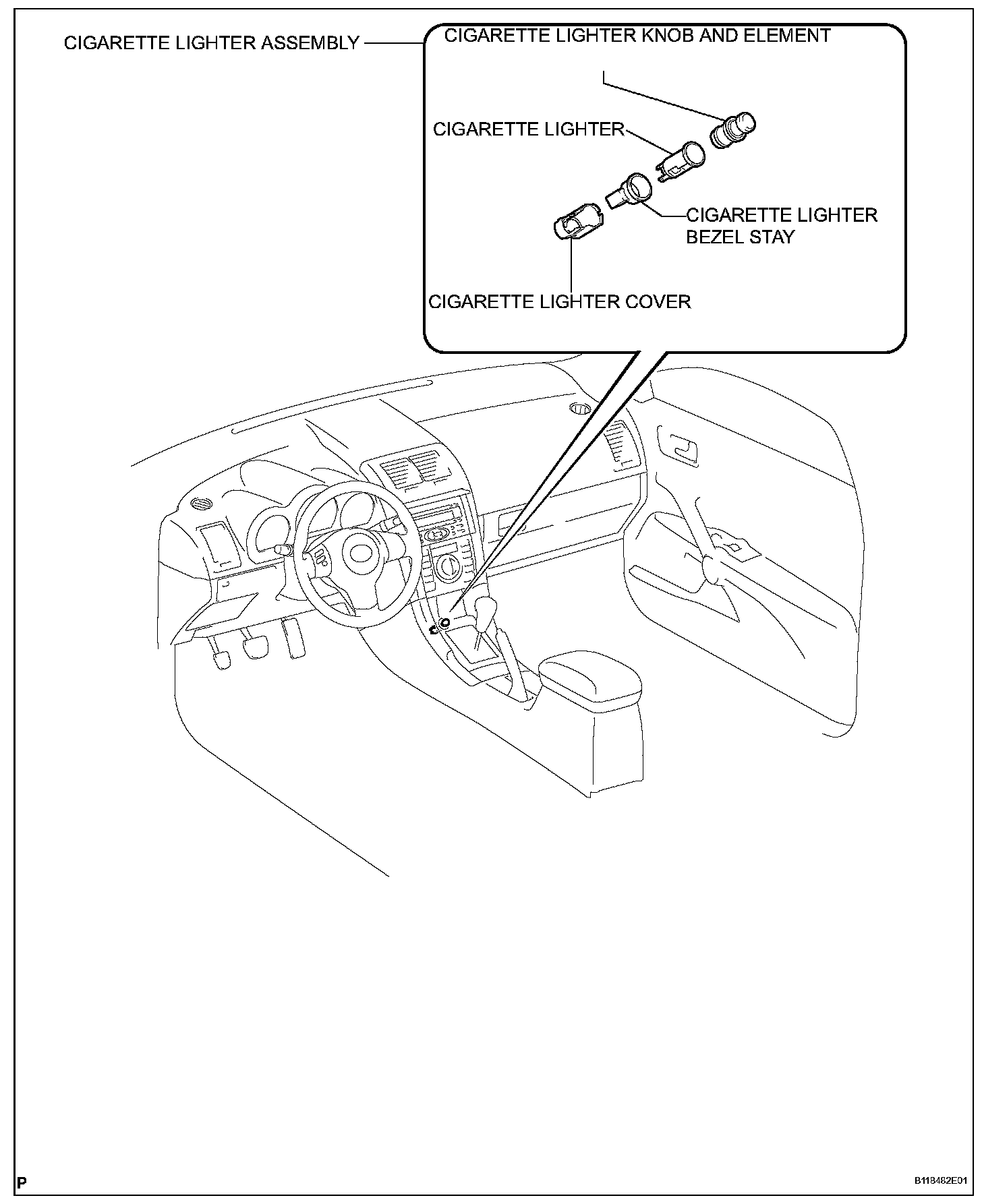

Cigarette Lighter Assembly:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
3. REMOVE FRONT CONSOLE PANEL UPPER




4. REMOVE CIGARETTE LIGHTER COVER

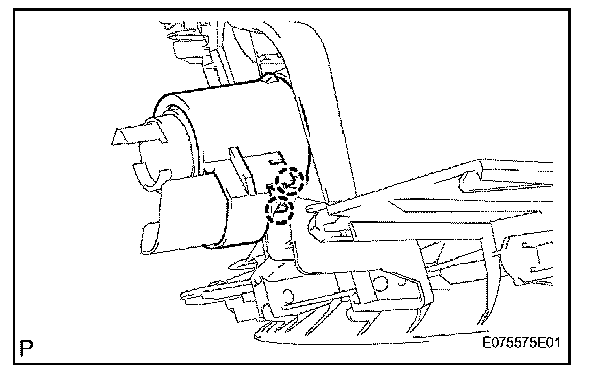

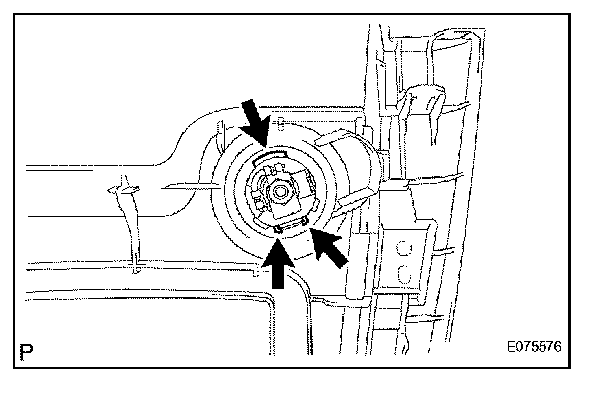

a. Detach the 2 claws and remove the cigarette lighter cover.




5. REMOVE CIGARETTE LIGHTER ASSEMBLY
a. Remove the cigarette lighter knob and element.

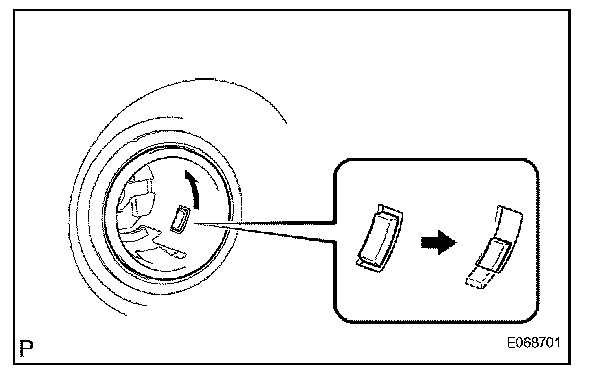

b. Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and pull out the socket.




c. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter.

INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Align the socket with the notch on the cigarette lighter bezel stay and push the cigarette lighter in as hard as possible.
b. Install the cigarette lighter knob and element.

2. INSTALL CIGARETTE LIGHTER COVER
a. Install the cigarette lighter cover.

3. INSTALL CONSOLE PANEL UPPER
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
