Compressor HVAC: Testing and Inspection
INSPECTIONINSPECT COOLER COMPRESSOR ASSEMBLY

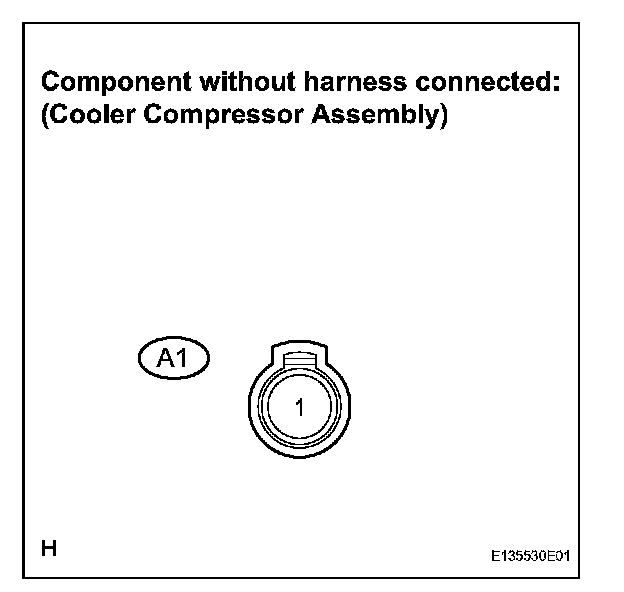

a. Connect the positive (+) lead from the battery to terminal A1-1 and the negative (-) lead to the body ground.
b. Check that the magnetic clutch is engaged.
If the operation is not as specified, replace the magnet clutch.
