Blower Motor Resistor: Testing and Inspection

BLOWER RESISTOR

ON-VEHICLE INSPECTION

1. INSPECT BLOWER MOTOR CONTROL

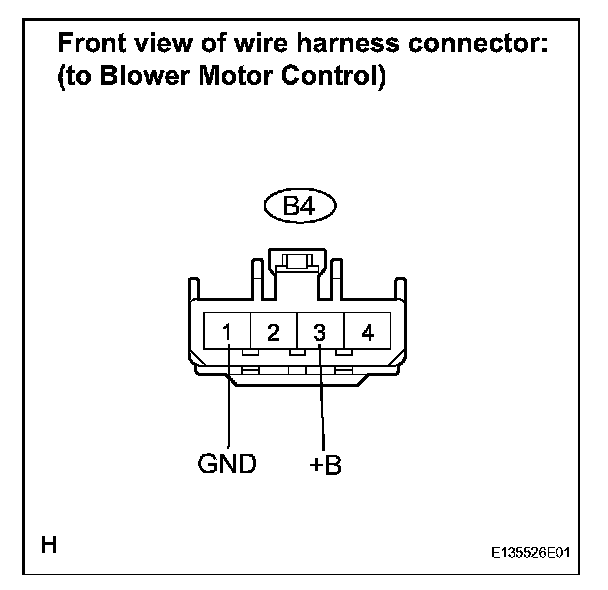

a. Disconnect the B4 blower motor control connector.




b. Measure the voltage of the wire harness side connector.

If the voltage is not as specified, replace the blower motor control.
