Air Outlet Control Servo Motor

INSPECTION

INSPECT AIR OUTLET CONTROL SERVO MOTOR

a. Inspect the servo motor operation.

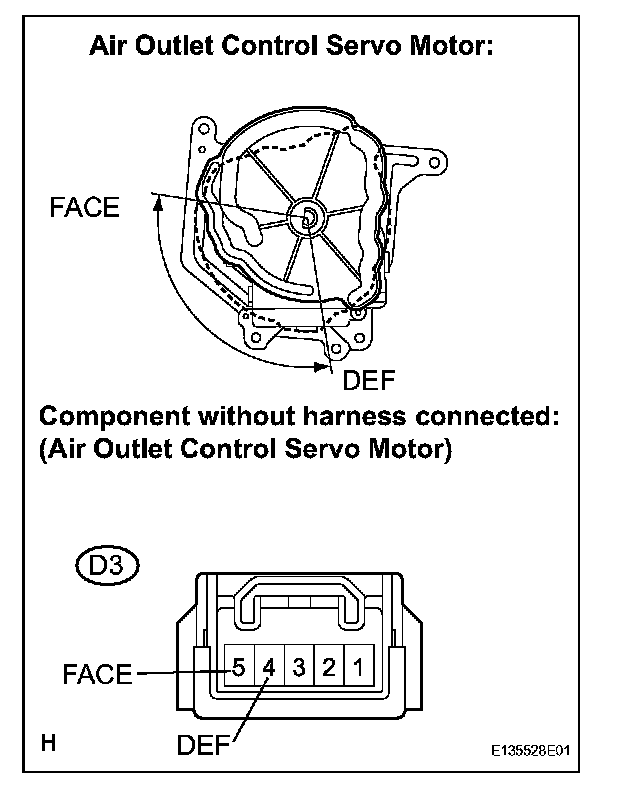

1. Connect the positive (+) lead from the battery to terminal D3-5 (FACE) and negative (-) lead to terminal D3-4 (DEF), and then check that the lever turns to the "FACE" position smoothly.
2. Connect the positive (+) lead from the battery to terminal D3-4 (DEF) and negative (-) lead to terminal D3-5 (FACE), and then check that the lever turns to the "DEF" position smoothly.

If the operation is not as specified, replace the air outlet control servo motor.
