Air Inlet Control Servo Motor

Air Inlet Control Servo Motor:

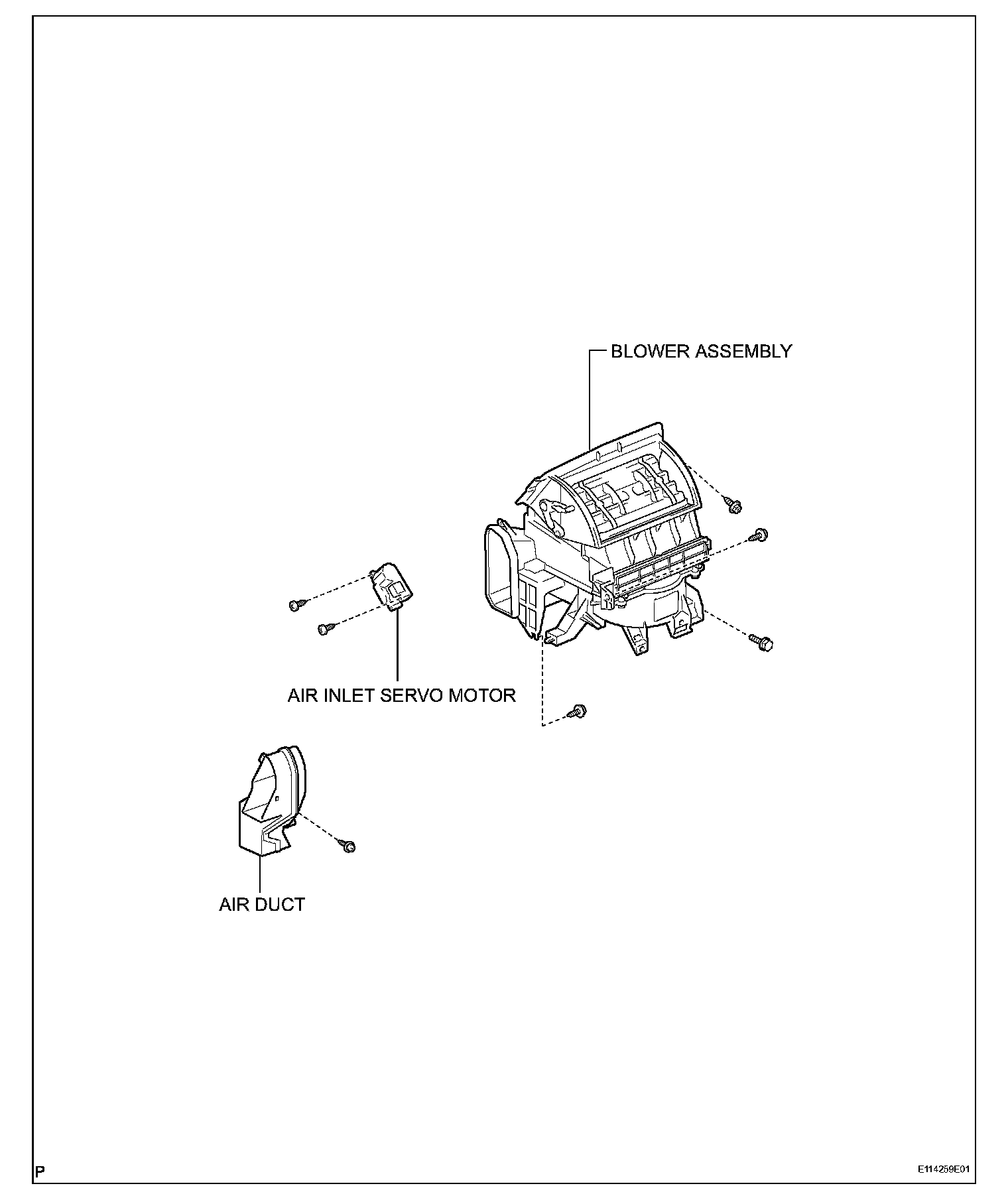

AIR INLET CONTROL SERVO MOTOR

REMOVAL

1. REMOVE BLOWER ASSEMBLY
a. Remove the blower assembly.

2. REMOVE AIR INLET SERVO MOTOR

INSTALLATION

1. INSTALL AIR INLET SERVO MOTOR
2. INSTALL BLOWER ASSEMBLY
a. Install the blower assembly.
