Part 1

TIMING CHAIN

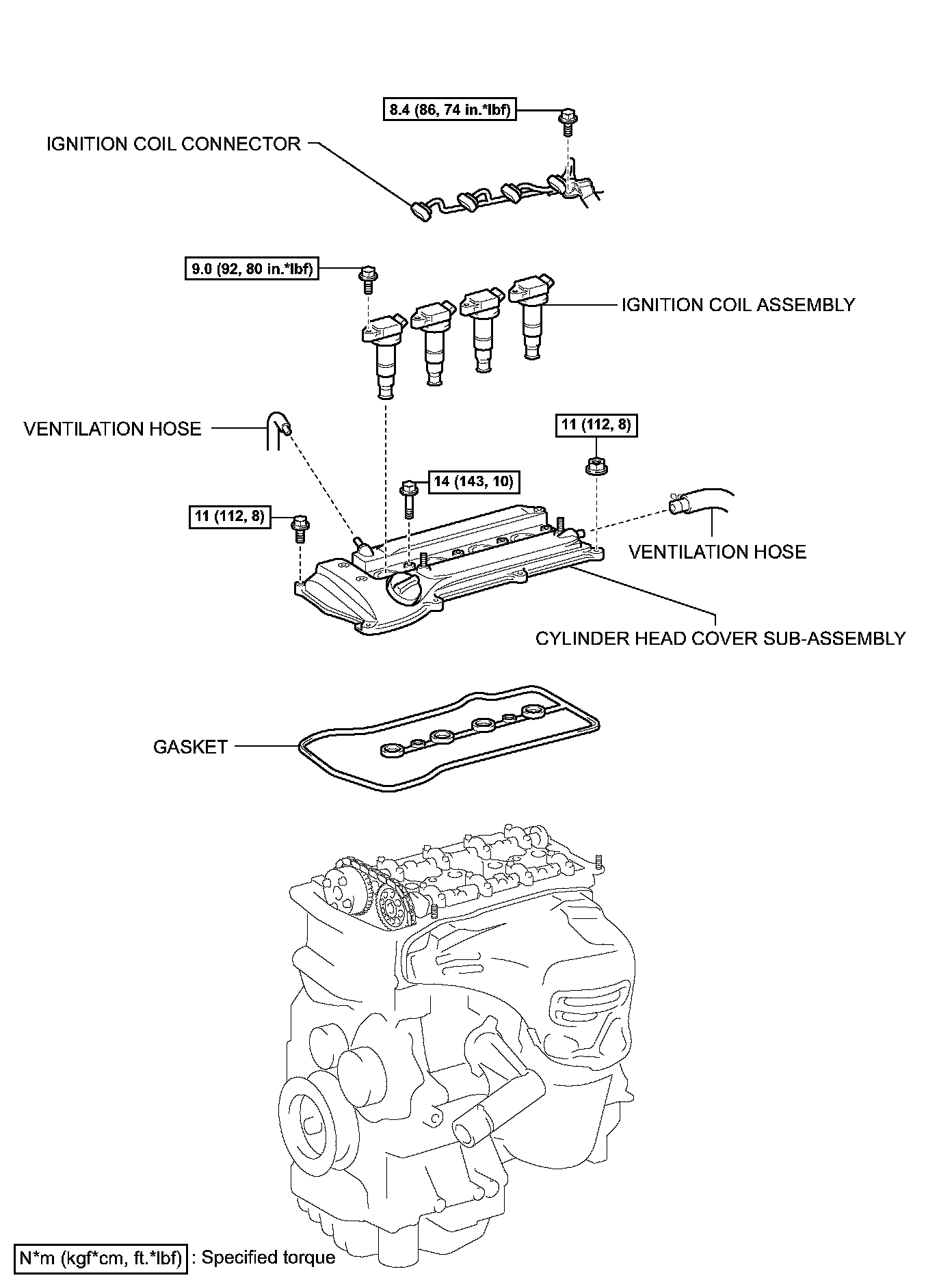

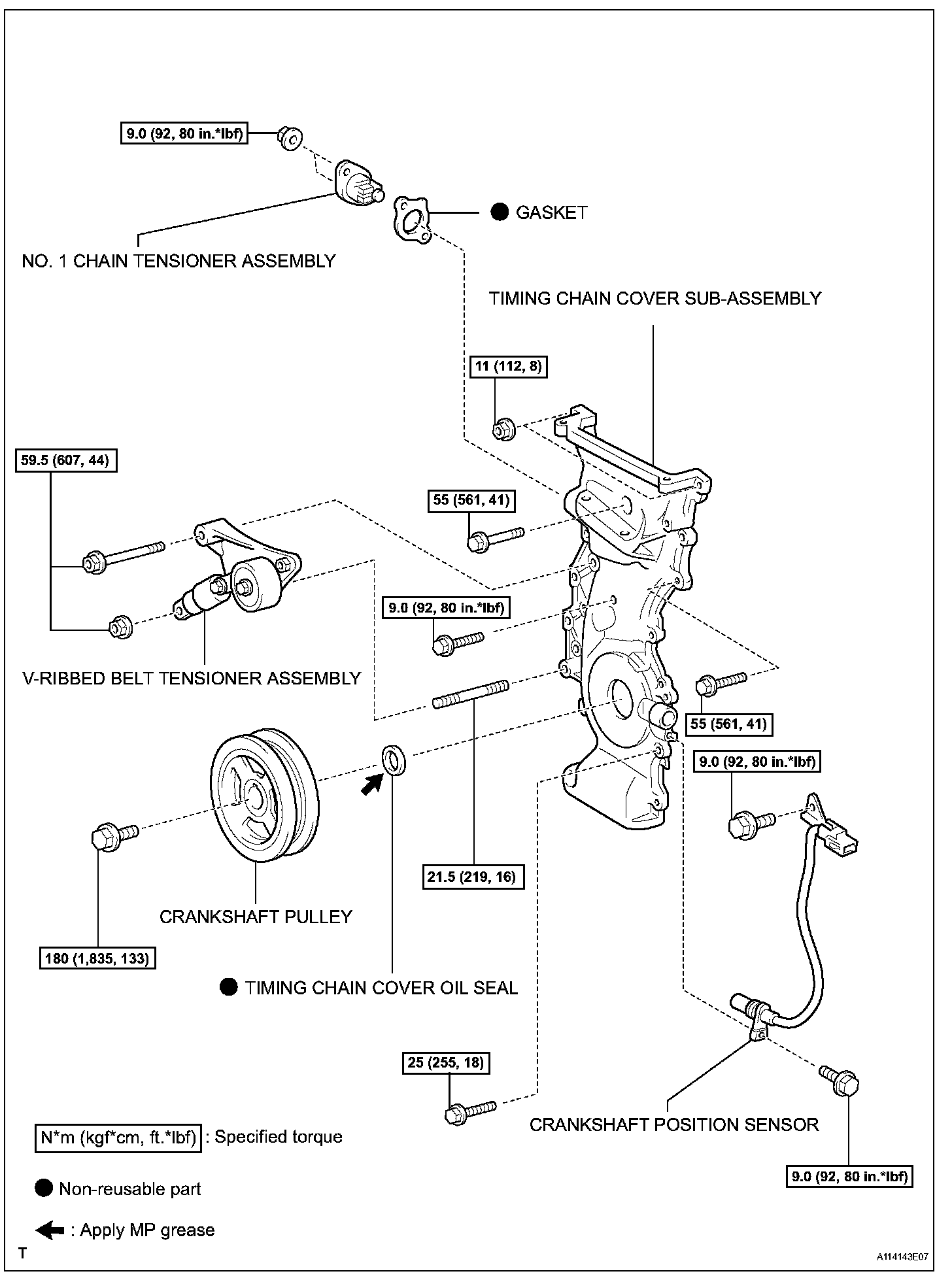

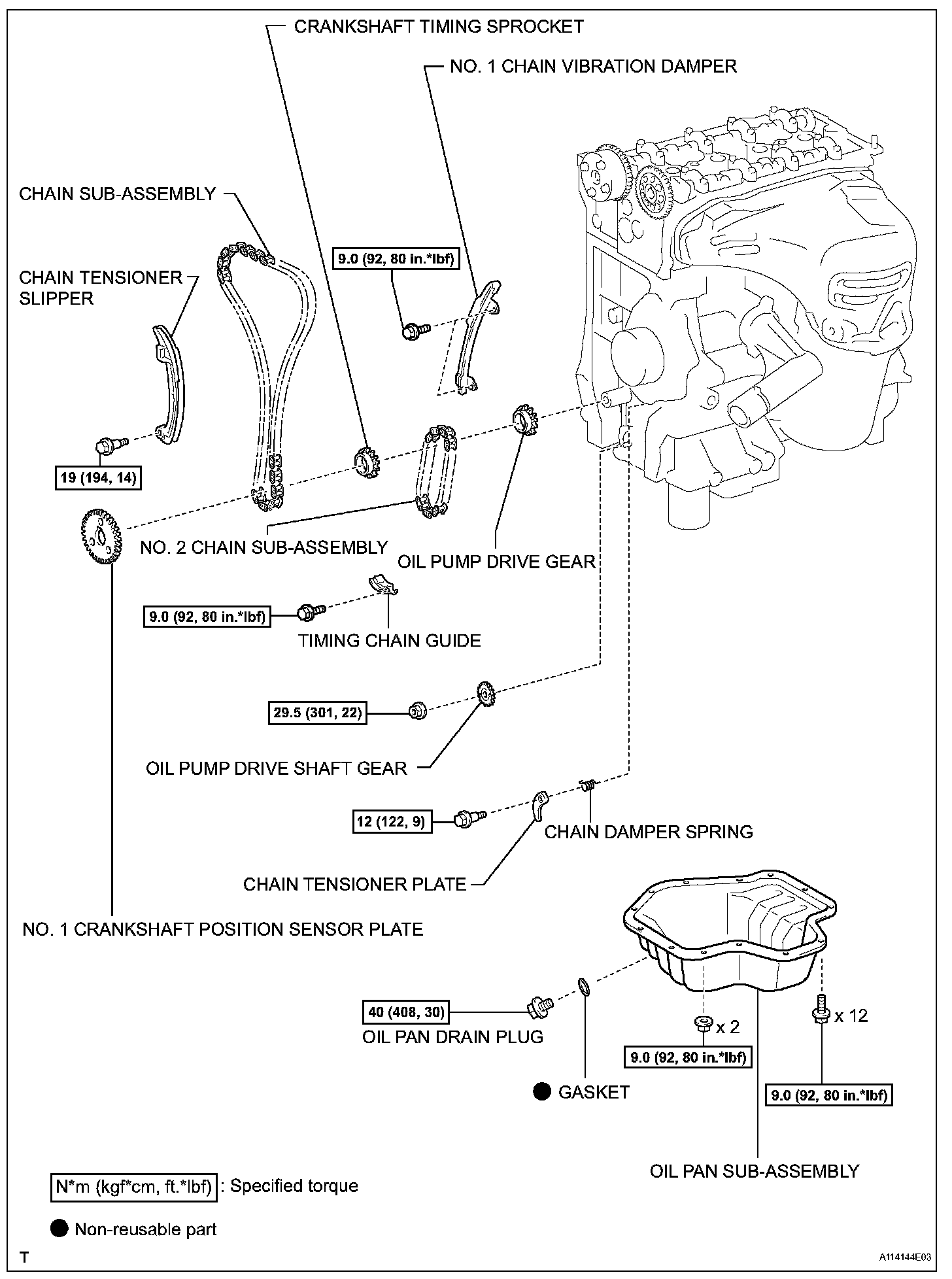

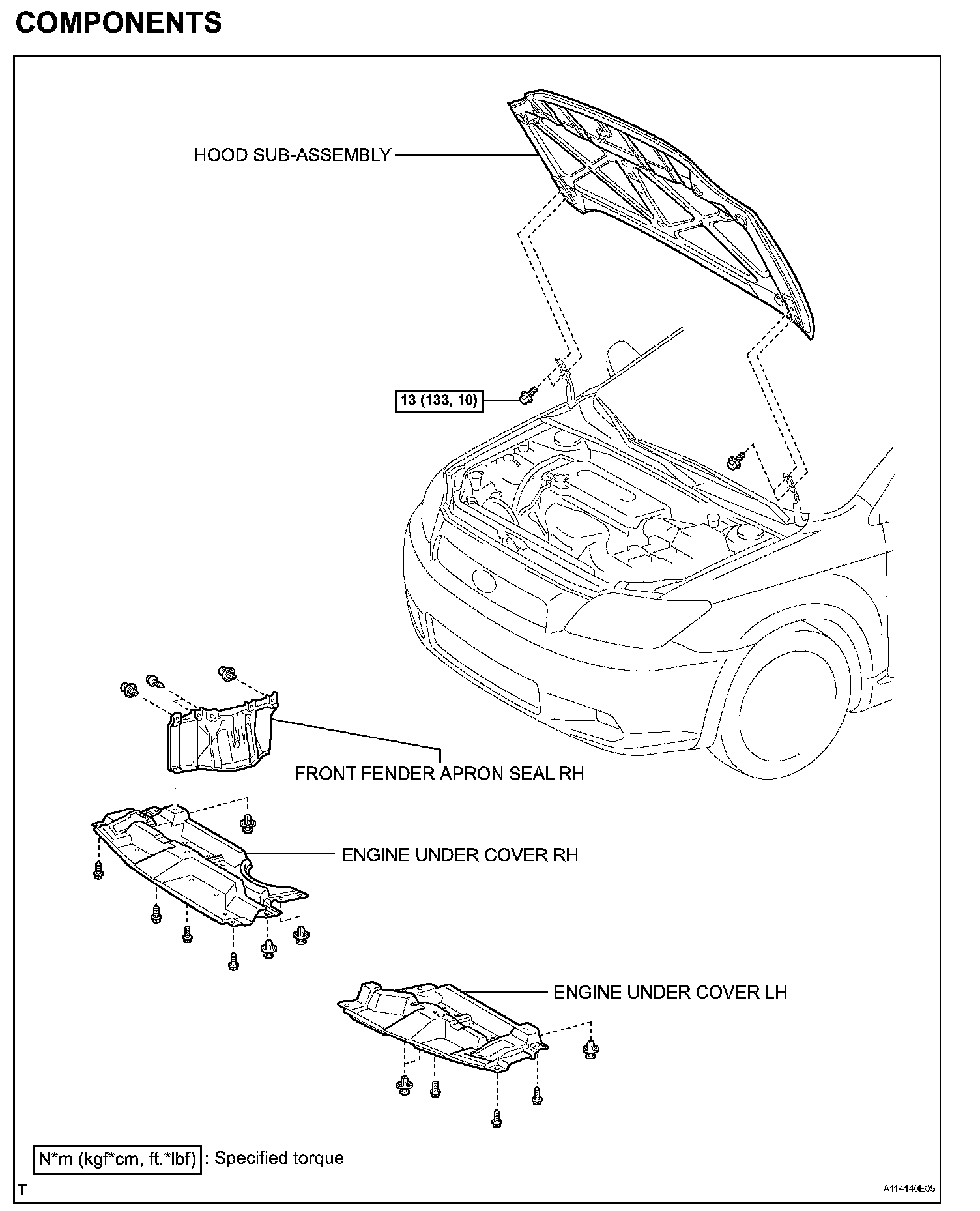

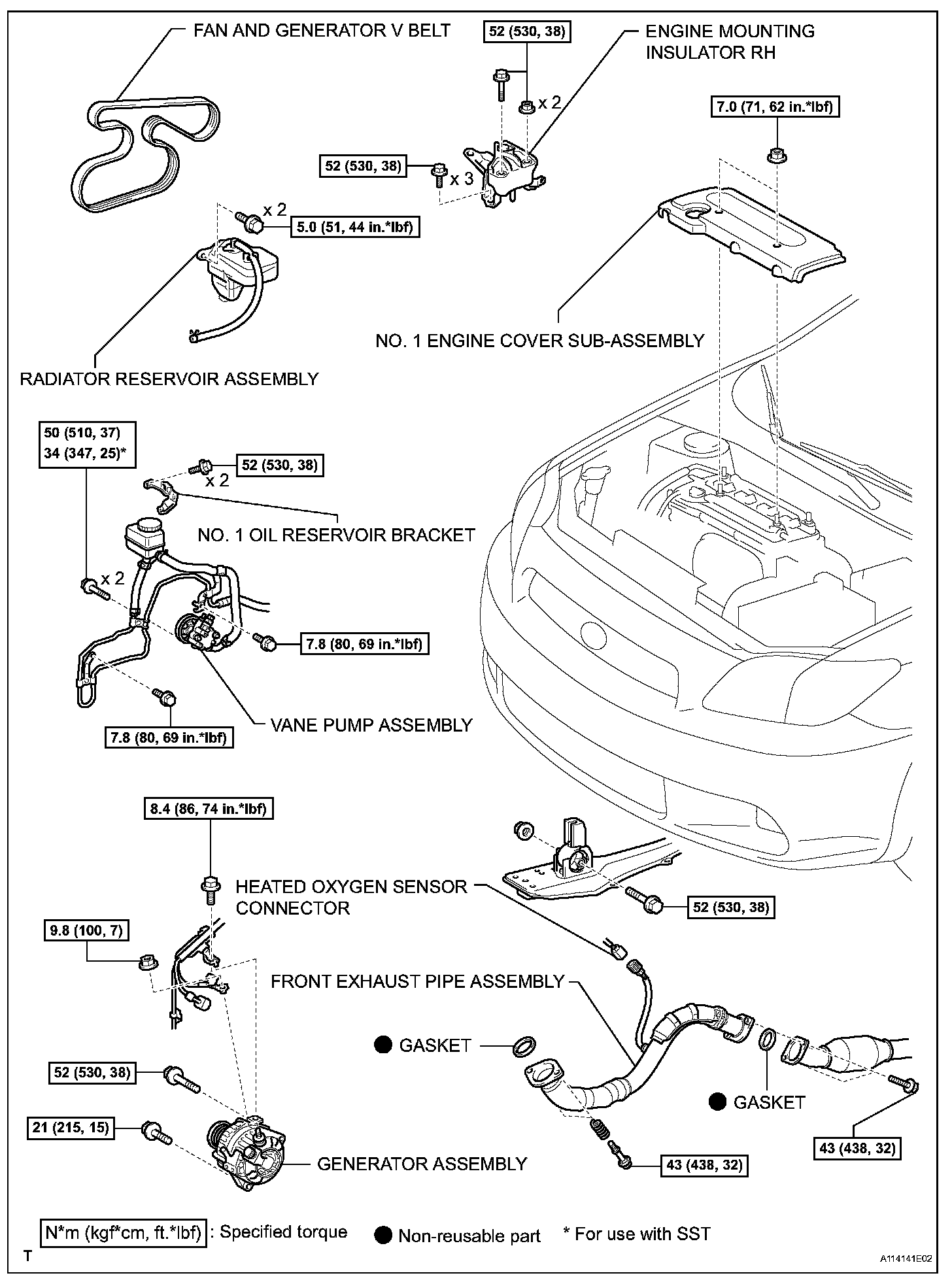

COMPONENTS (Part 1):

COMPONENTS (Part 2):

COMPONENTS (Part 3):

COMPONENTS (Part 4):

COMPONENTS (Part 5):

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE HOOD SUB-ASSEMBLY
3. REMOVE FRONT WHEEL RH
4. REMOVE ENGINE UNDER COVER RH
5. REMOVE ENGINE UNDER COVER LH
6. REMOVE FRONT FENDER APRON SEAL RH

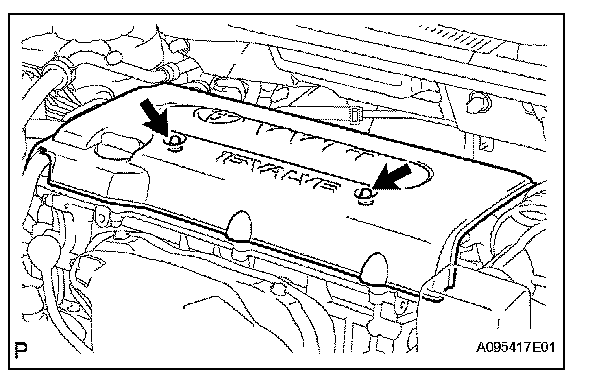

7. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
(a) Remove the 2 nuts and cover.
8. DRAIN ENGINE COOLANT
9. REMOVE FRONT EXHAUST PIPE ASSEMBLY
10. REMOVE FAN AND GENERATOR V BELT
11. REMOVE GENERATOR ASSEMBLY
12. REMOVE VANE PUMP ASSEMBLY

13. REMOVE ENGINE MOUNTING INSULATOR RH

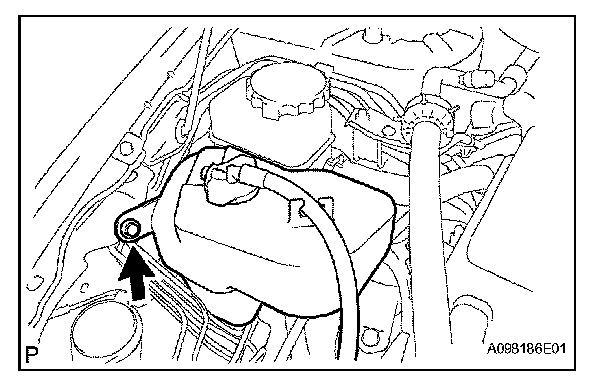

(a) Remove the bolt and radiator reservoir.

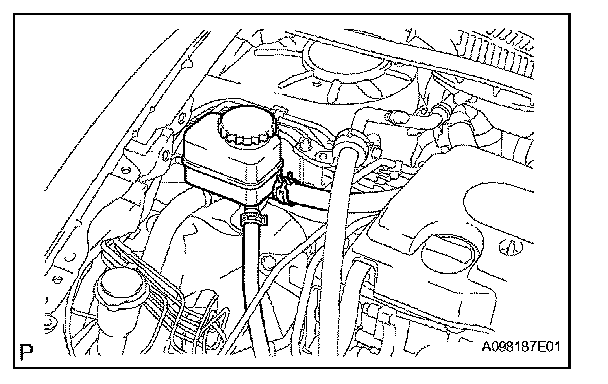

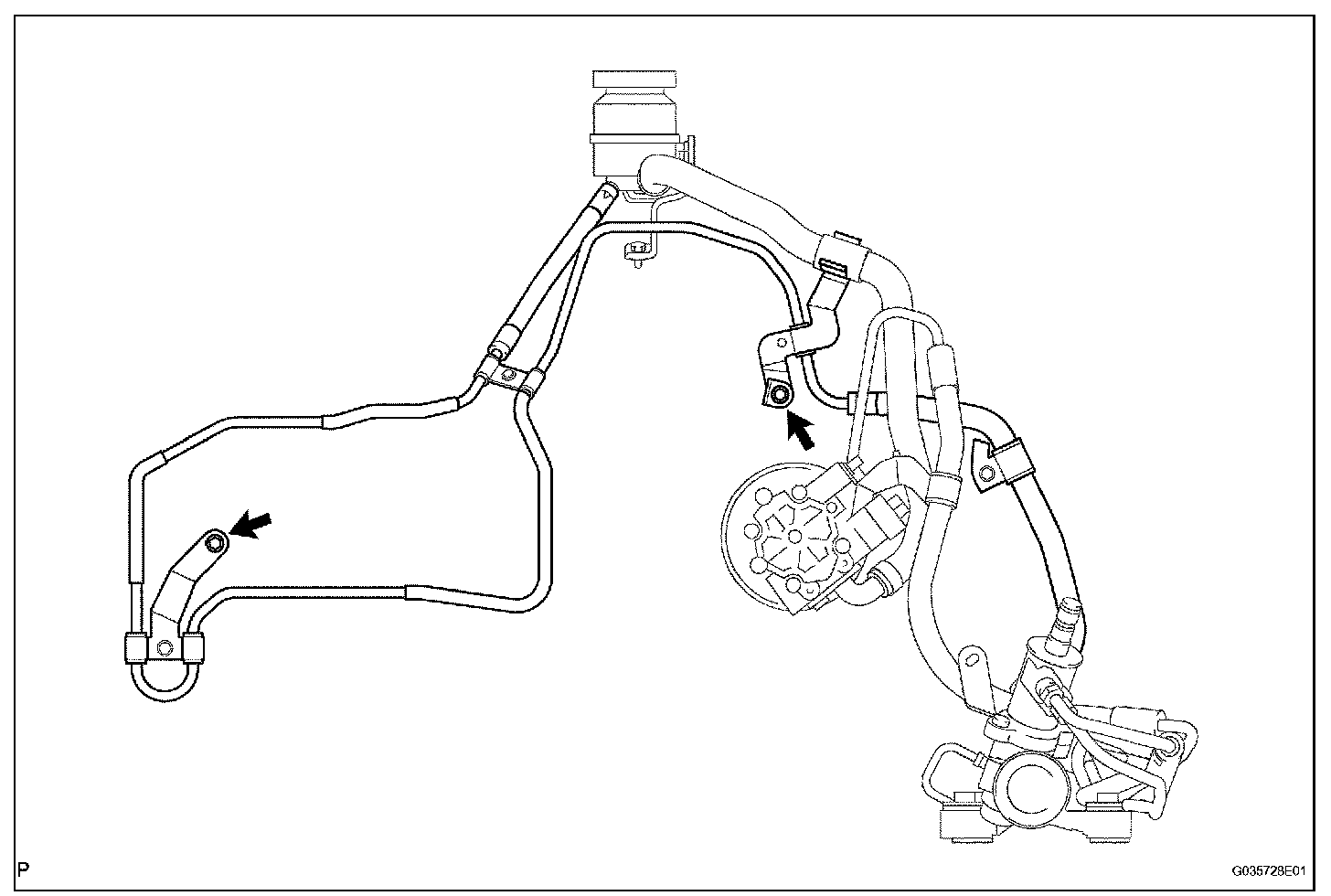

(b) Separate the vane pump oil reservoir from the No. 1 oil reservoir bracket.

NOTICE: Do not disconnect the 2 oil reservoir hoses.

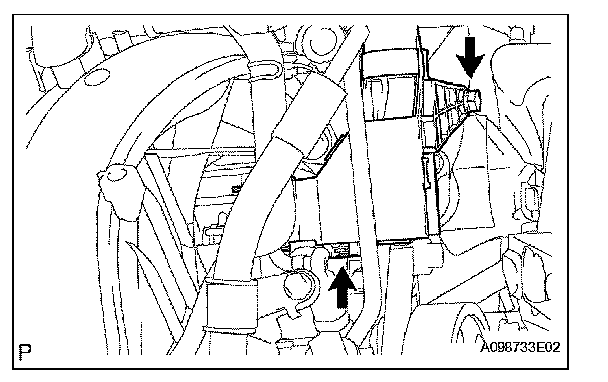

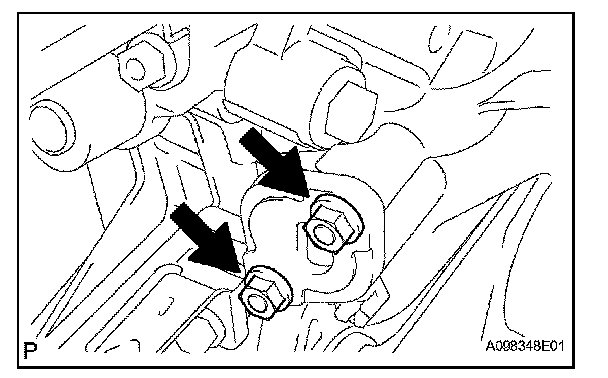

(c) Remove the 2 bolts.

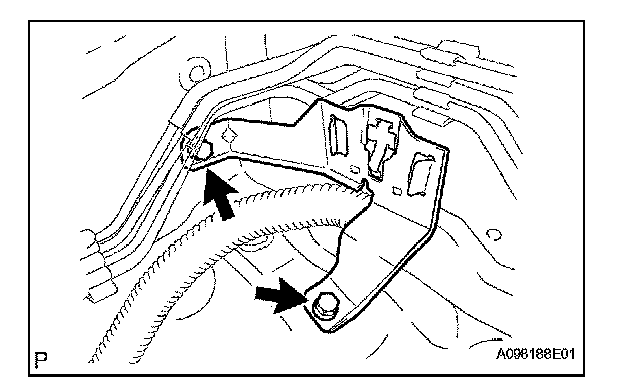

(d) Remove the 2 bolts and No. 1 oil reservoir bracket.

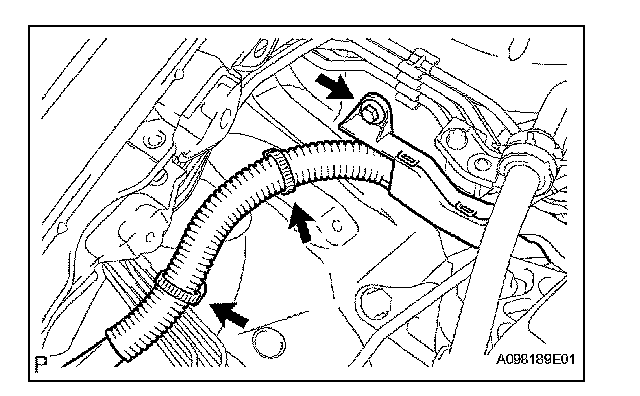

(e) Remove the bolt of the wire harness protector.
(f) Disconnect the 2 clamps of the engine wire.

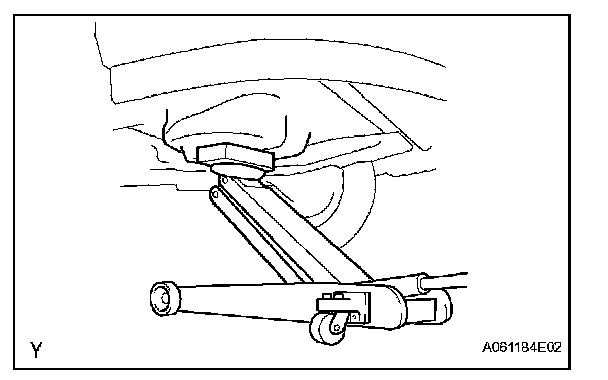

(g) Place a transmission jack underneath the engine, then put a wooden block on the jack.

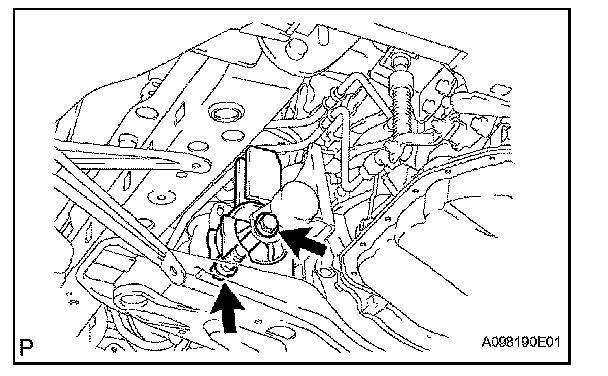

(h) Remove the bolt, nut and front engine mounting insulator from the front engine mounting bracket.

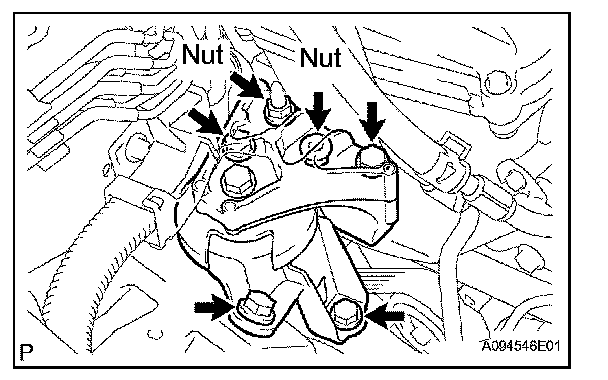

(i) Remove the 4 bolts, 2 nuts and engine mounting insulator RH.

NOTICE: Do not apply excessive force to the return tube when removing the engine mounting insulator RH.

HINT: Keep clearance by lowering the engine using the transmission jack when removing the engine mounting insulator RH.

14. REMOVE IGNITION COIL ASSEMBLY

15. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

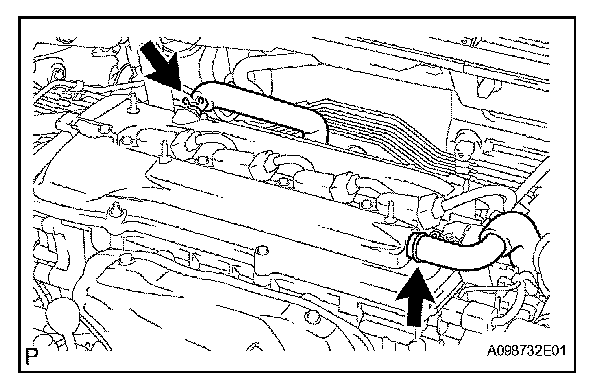

(a) Disconnect the 2 ventilation hoses from the cylinder head cover.

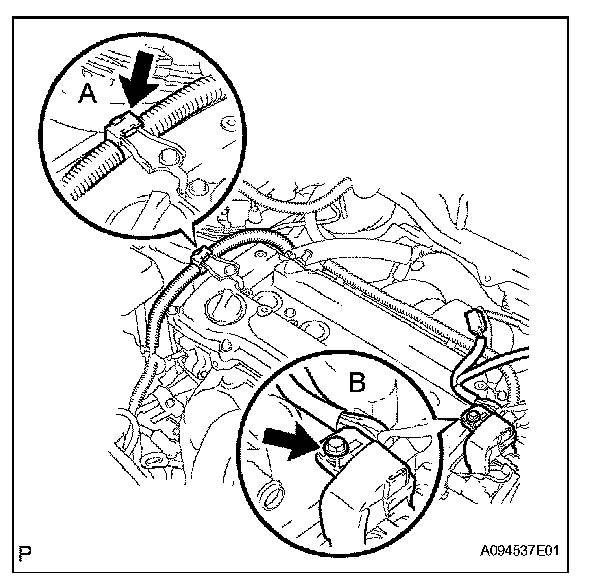

(b) Disconnect the clamp of the engine wire (labeled A).
(c) Remove the bolt, then disconnect the engine wire (labeled B).

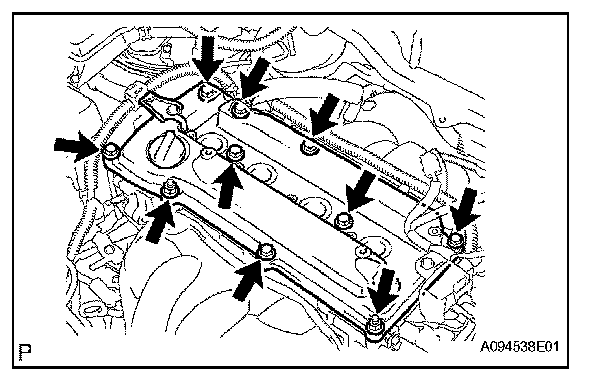

(d) Remove the 8 bolts, 2 nuts and cylinder head cover.

16. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
(a) Lift the engine upward using the transmission jack.

NOTICE: Do not lift the engine more than necessary.

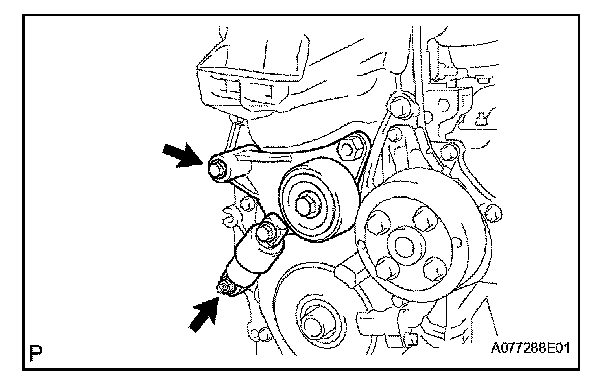

(b) Remove the bolt, nut and V-ribbed belt tensioner.
17. REMOVE CRANKSHAFT POSITION SENSOR

18. REMOVE OIL PAN SUB-ASSEMBLY
(a) Install the No. 1 and No. 2 engine hangers with the bolts.
Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

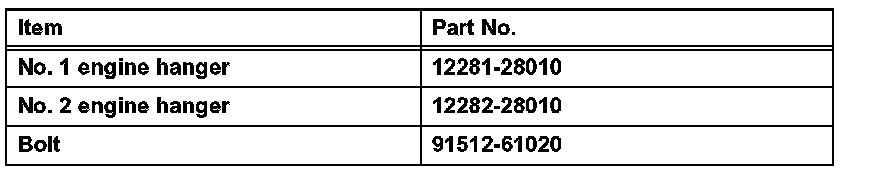

Parts No.:

(b) Using a chain block and sling device, hold the engine.

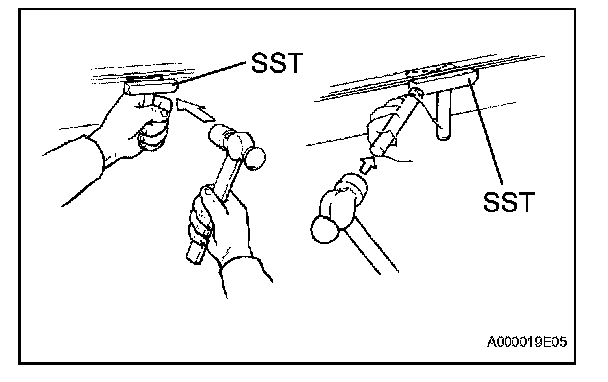

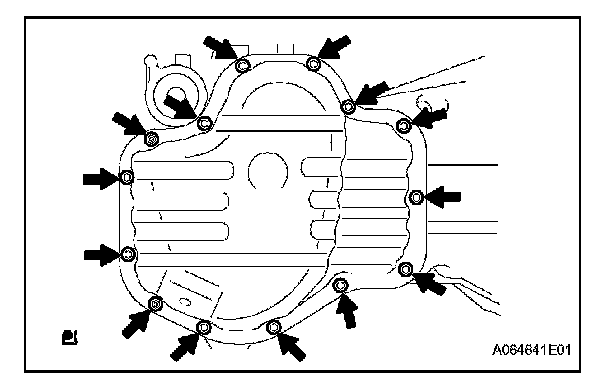

(d) Insert the blade of SST between the crankcase, chain cover and oil pan, then cut off the applied sealer and remove the oil pan.
SST 09032-00100

NOTICE: Be careful not to damage the contact surface of the crankcase, chain cover and oil pan.

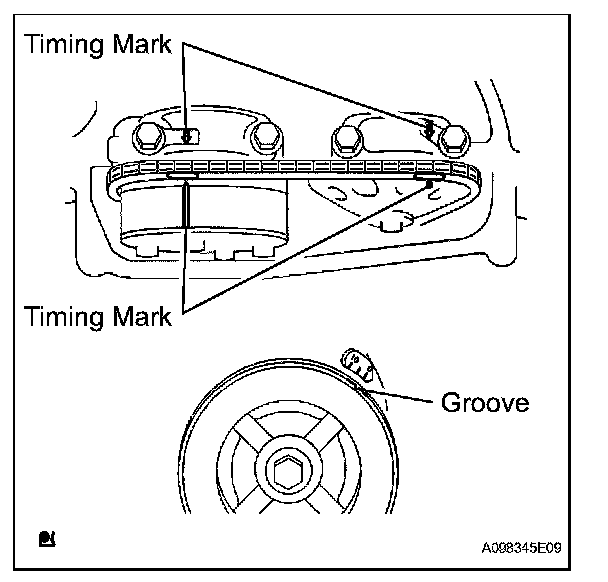

19. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley until its groove and the timing mark "0" of the timing chain cover are aligned.
(b) Check that each timing mark of the camshaft timing gears is aligned with each timing mark located on the No. 1 and No. 2 bearing caps as shown in the illustration.
If not, turn the crankshaft by 1 revolution (360°) to align the timing marks as above.

20. REMOVE CRANKSHAFT PULLEY

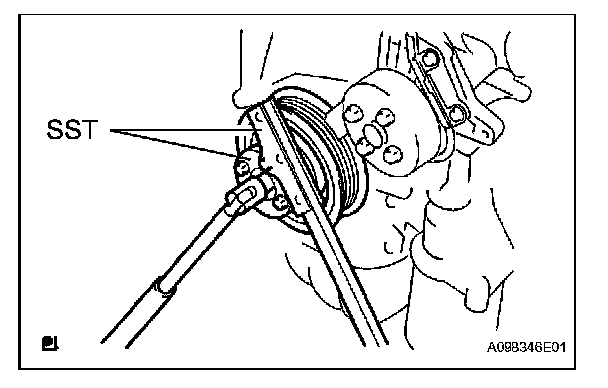

(a) Using SST, fix the pulley and loosen the pulley bolt.
SST 09213-54015 (91651-60855), 09330-00021

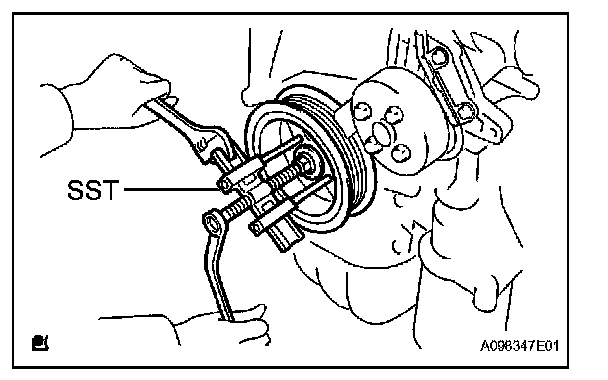

(b) Using SST and the pulley bolt, remove the crankshaft pulley.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

21. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
(a) Remove the bolt.
(b) Disconnect the wire harness protector clamp.

22. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY

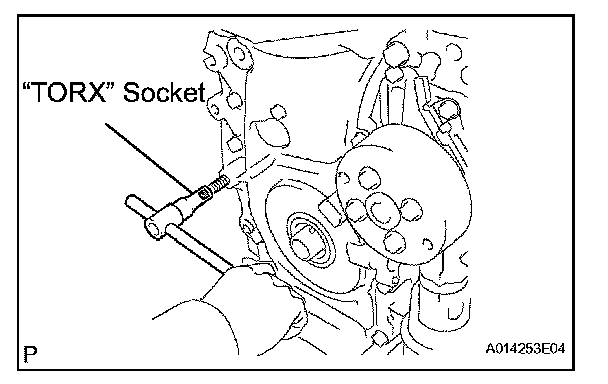

(a) Using an E10 "TORX" socket, remove the stud bolt for the V-ribbed belt tensioner.

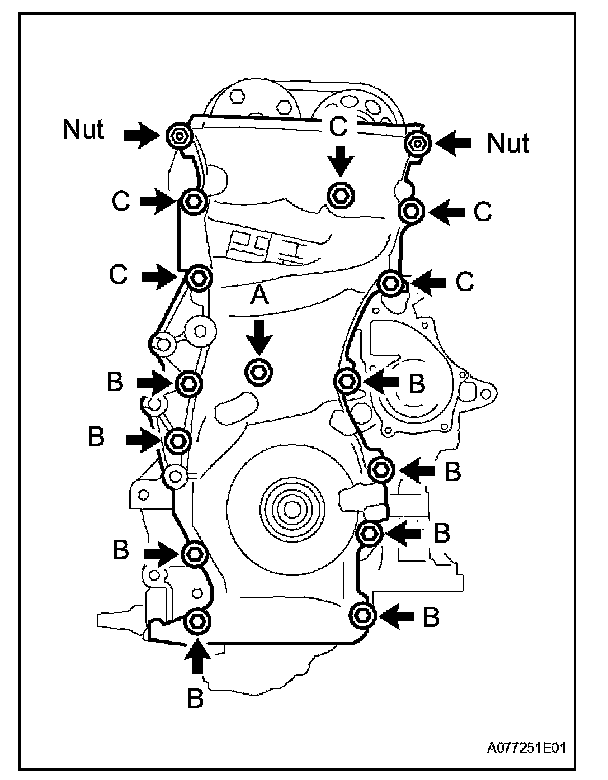

(b) Remove the 14 bolts and 2 nuts.
(c) Remove the timing chain cover by prying the portions between the timing chain cover, cylinder head and cylinder block with a screwdriver.

NOTICE: Be careful not to damage the contact surfaces of the timing chain cover, cylinder head and cylinder block.

23. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

24. REMOVE TIMING CHAIN GUIDE
(a) Remove the bolt and timing chain guide.
25. REMOVE CHAIN TENSIONER SLIPPER
(a) Remove the bolt and chain tensioner slipper.
26. REMOVE CHAIN SUB-ASSEMBLY
27. REMOVE NO. 1 CHAIN VIBRATION DAMPER
(a) Remove the 2 bolts and chain vibration damper.
28. REMOVE CRANKSHAFT TIMING SPROCKET

29. REMOVE NO. 2 CHAIN SUB-ASSEMBLY

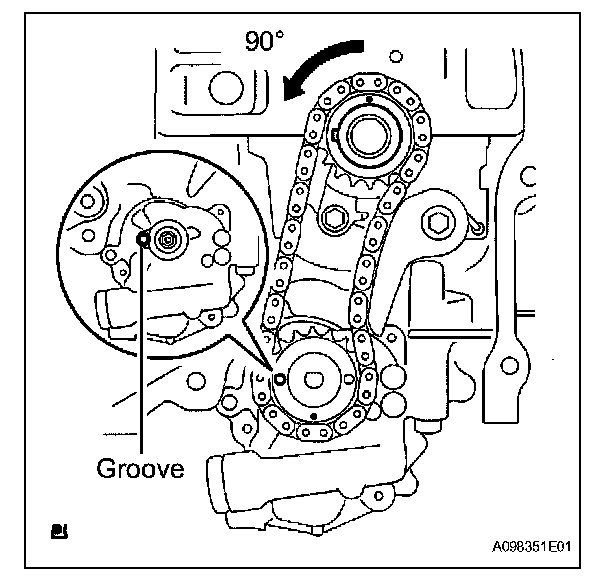

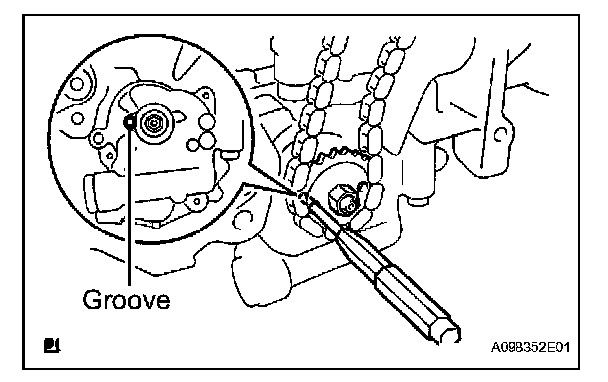

(a) Turn the crankshaft by 90° counterclockwise to align the adjusting hole of the oil pump drive shaft gear with the groove of the oil pump.

(b) Insert a 4 mm diameter bar into the adjusting hole of the oil pump drive shaft gear to lock the gear in position, then remove the nut.

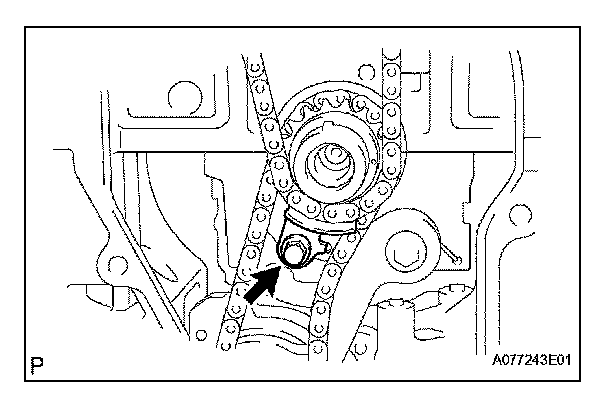

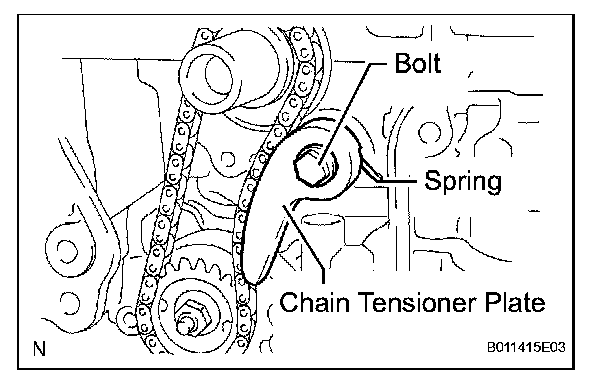

(c) Remove the bolt, chain tensioner plate and spring.
(d) Remove the oil pump drive gear, oil pump drive shaft gear and No. 2 chain.

INSPECTION

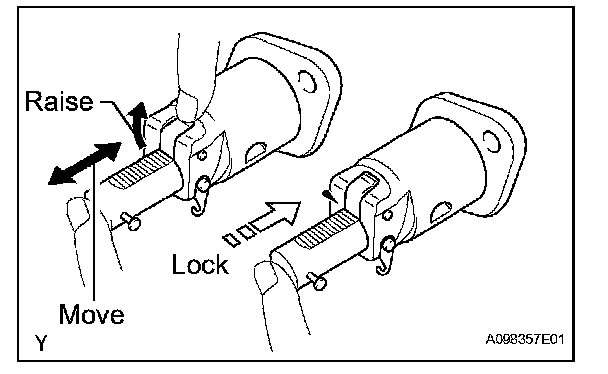

1. INSPECT NO. 1 CHAIN TENSIONER
(a) Check that the plunger moves smoothly when the ratchet pawl is raised with your finger.
(b) Release the ratchet pawl, then check that the plunger is locked in place by the ratchet pawl and does not move when pushed with your finger.

2. INSPECT CHAIN SUB-ASSEMBLY

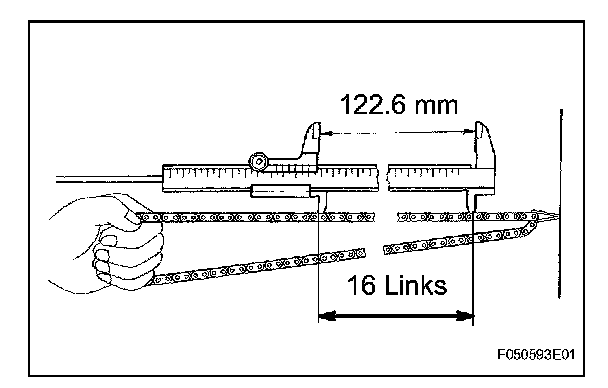

(a) Using vernier calipers, measure the length of the 16 links with the chain fully stretched.
Maximum chain elongation: 122.6 mm (4.827 in.)
If the chain elongation is greater than the maximum, replace the chain sub-assembly.

HINT: Take the same measurements by pulling at 3 or more places selected at random.

3. INSPECT CHAIN TENSIONER SLIPPER

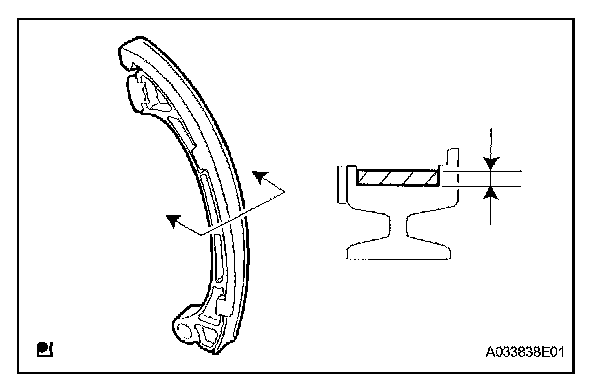

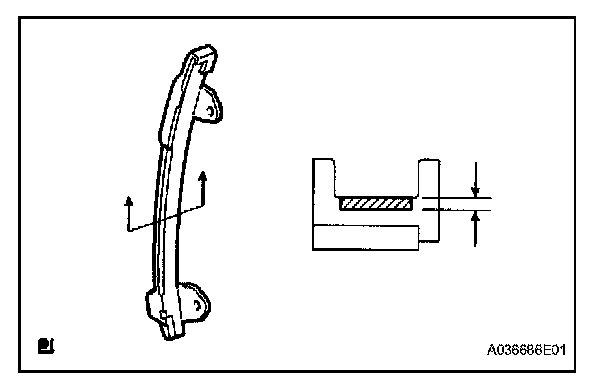

(a) Using vernier calipers, measure the tensioner slipper wear.
Maximum wear: 1.0 mm (0.039 in.)
If the wear is greater than the maximum, replace the chain tensioner slipper.

4. INSPECT NO. 1 CHAIN VIBRATION DAMPER
(a) Using vernier calipers, measure the vibration damper wear.
Maximum wear: 1.0 mm (0.039 in.)
If the wear is greater than the maximum, replace the No. 1 chain vibration damper.

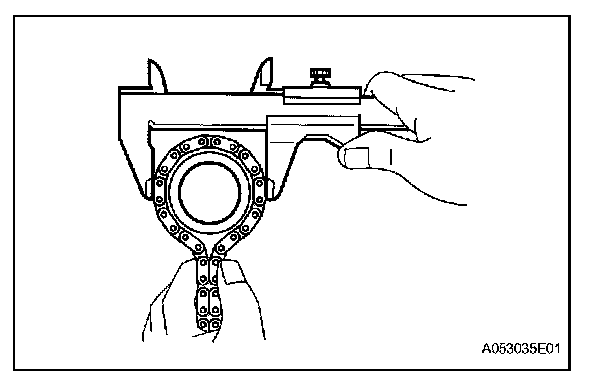

5. INSPECT CRANKSHAFT TIMING SPROCKET

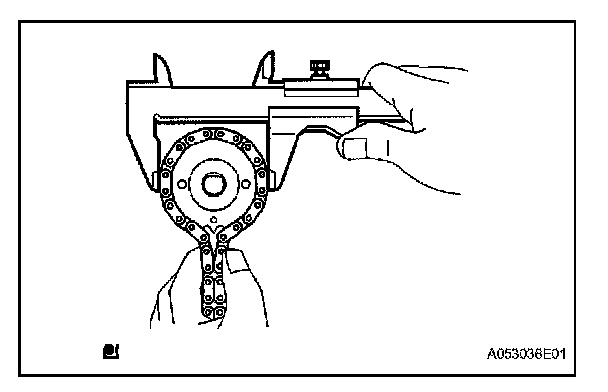

(a) Wrap the chain around the timing sprocket.
(b) Using vernier calipers, measure the timing gear diameter with the chain.
Minimum gear diameter (with chain): 51.6 mm (2.031 in.)

NOTICE: Vernier calipers must be in contact with the chain rollers when measuring.

If the gear diameter is less than the minimum, replace the chain sub-assembly and crankshaft timing sprocket.

6. INSPECT OIL PUMP DRIVE GEAR
(a) Wrap the chain around the drive gear.
(b) Using vernier calipers, measure the drive gear diameter with the chain.
Minimum gear diameter (with chain): 48.2 mm (1.898 in.)

NOTICE: Vernier calipers must be in contact with the chain rollers when measuring.

If the gear diameter is less than the minimum, replace the No. 2 chain sub-assembly and oil pump drive gear.

7. INSPECT OIL PUMP DRIVE SHAFT GEAR
(a) Wrap the chain around the drive shaft gear.
(b) Using vernier calipers, measure the drive shaft gear diameter with the chain.
Minimum gear diameter (with chain): 48.2 mm (1.898 in.)

NOTICE: Vernier calipers must be in contact with the chain rollers when measuring.

If the gear diameter is less than the minimum, replace the No. 2 chain sub-assembly and oil pump drive shaft gear.

REPLACEMENT

1. REMOVE TIMING CHAIN COVER OIL SEAL

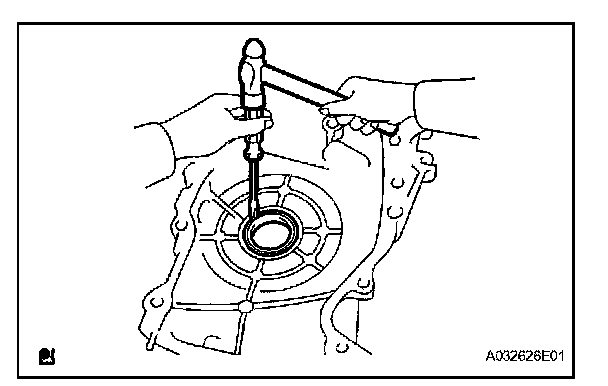

(a) Using a screwdriver and hammer, tap out the oil seal.
2. INSTALL TIMING CHAIN COVER OIL SEAL
(a) Place the oil seal retainer on wooden blocks.

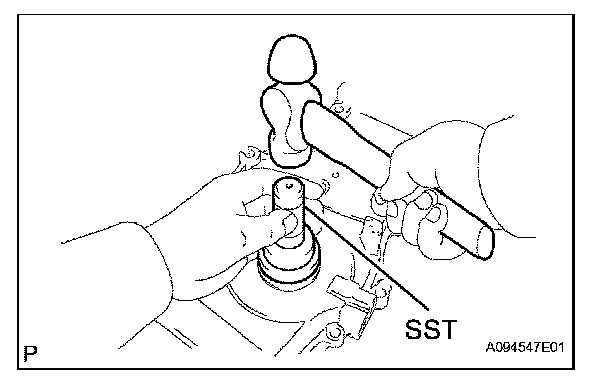

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the timing gear case edge.
SST 09223-22010

NOTICE:
^ Keep the lip free from foreign matter.
^ Do not tap the oil seal at an angle.

HINT: Apply a light coat of MP grease to the lip of a new oil seal.
