Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Lamps and Indicators - Cooling System >> Temperature Gauge >> Testing and Inspection >> Malfunction In Water Temperature Receiver Gauge

Malfunction In Water Temperature Receiver Gauge

Malfunction in Water Temperature Receiver Gauge

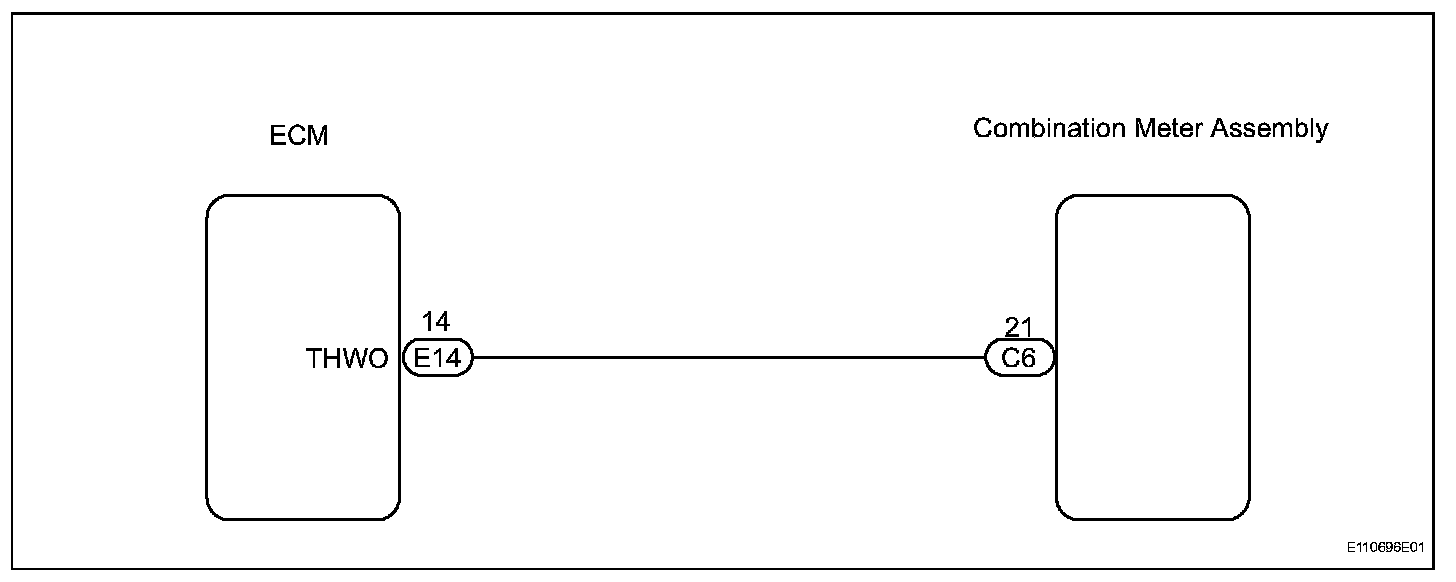

Wiring Diagram:

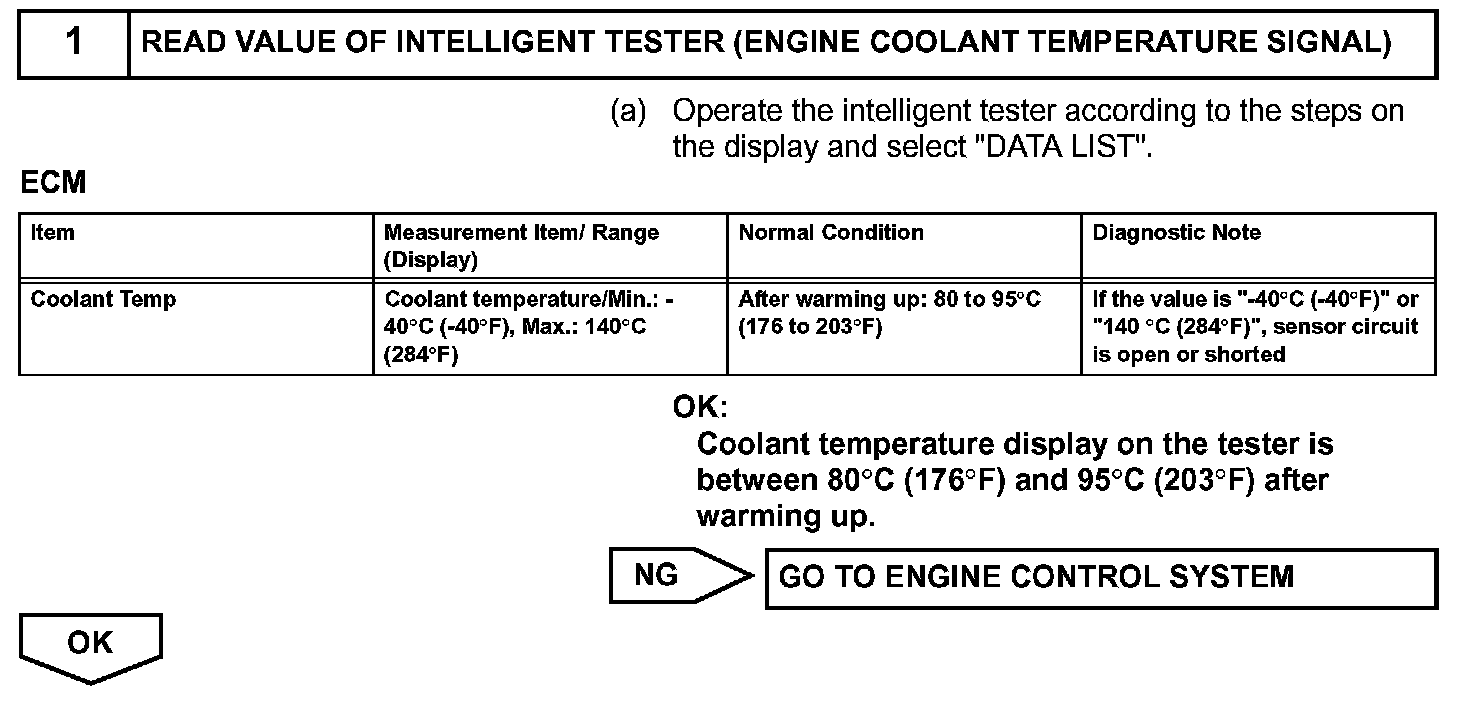

Step 1:




Step 2:

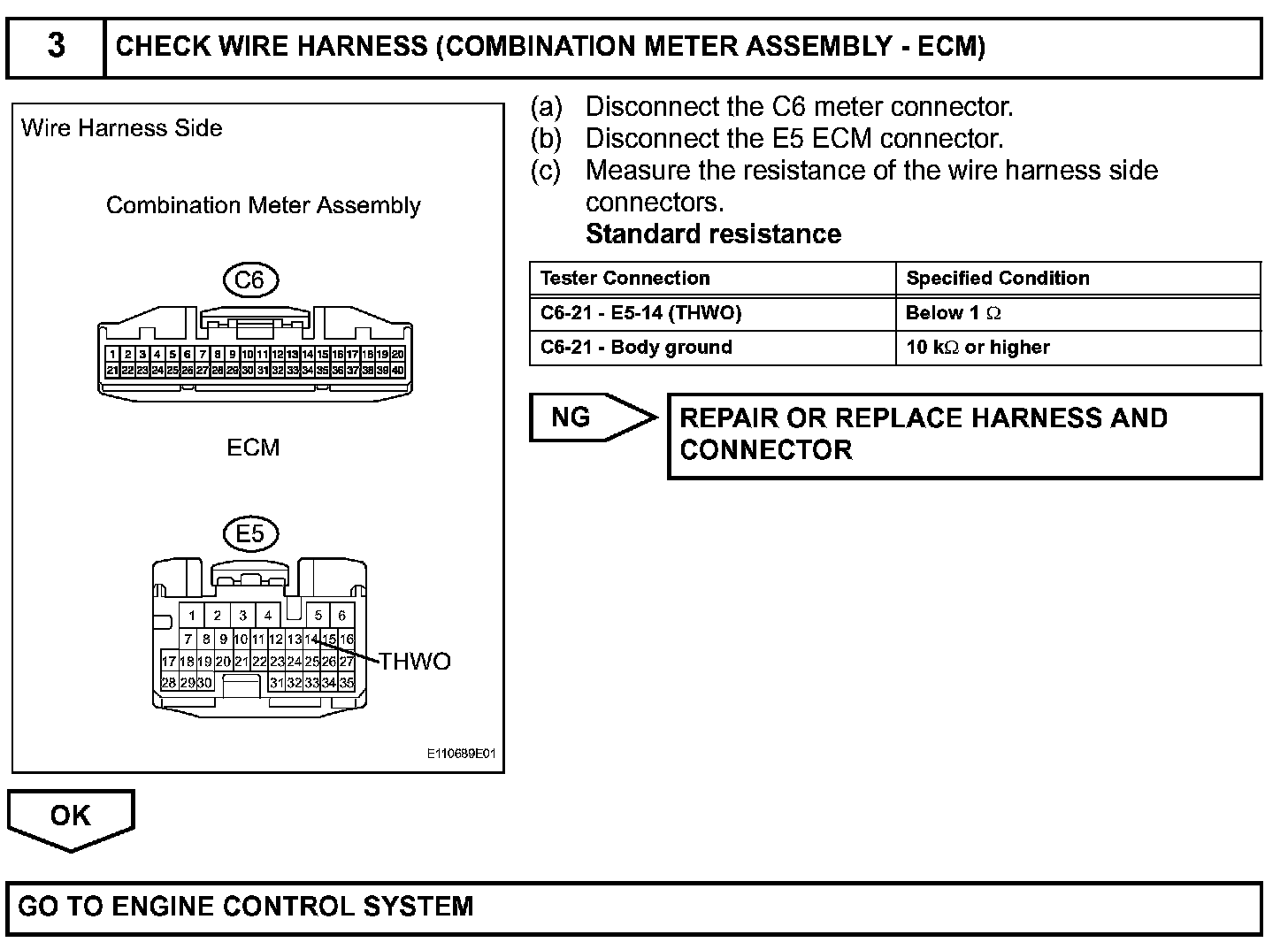

Step 3:




INSPECTION PROCEDURE
