Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> IE4 - IJ1

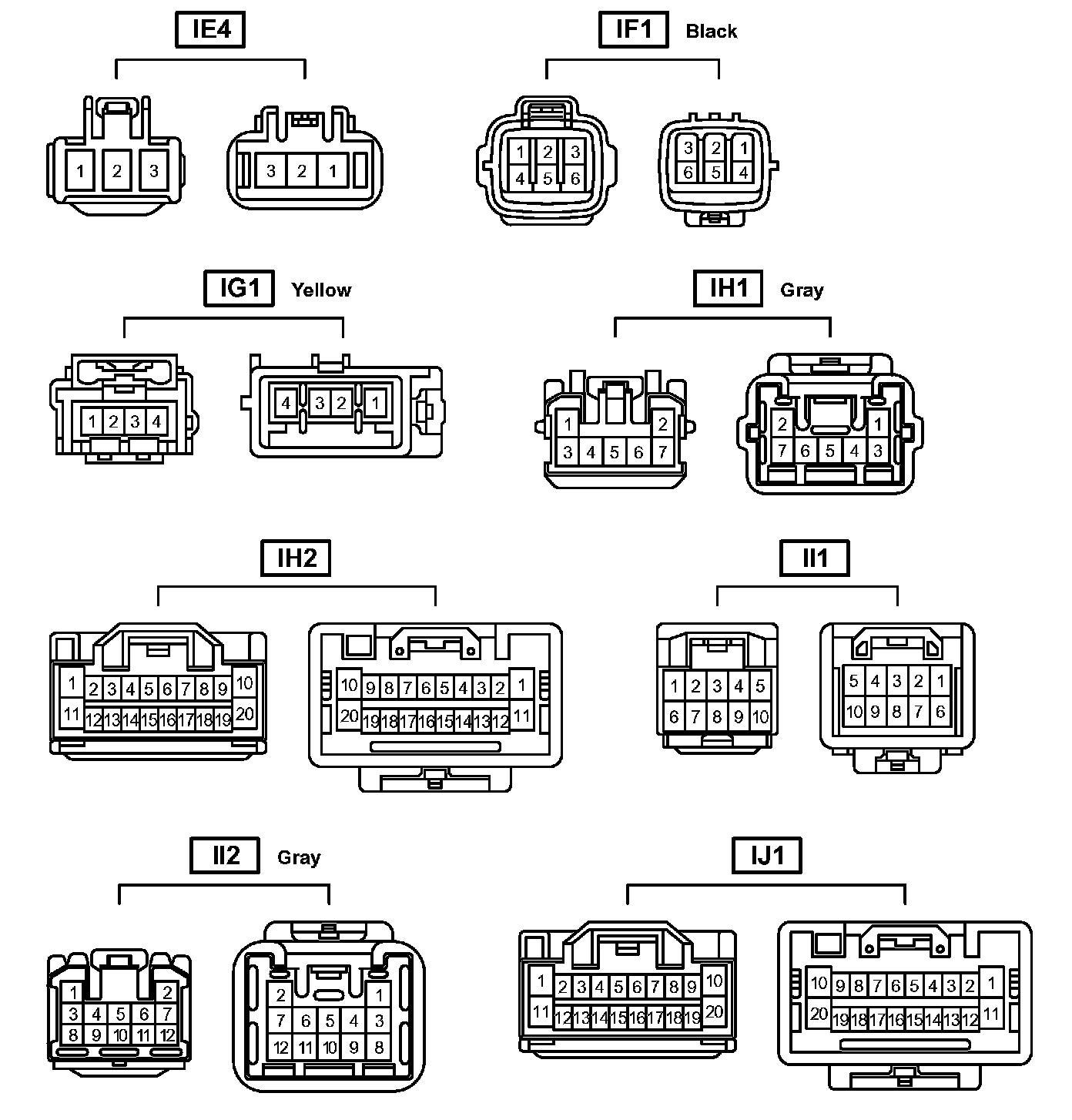

IE4 - IJ1

IE4 - IJ1:
