Diagnosis Circuit
Diagnosis CircuitDESCRIPTION
Making a short circuit between terminals TC and CG of the DLC3 will output DTCs from the DLC3.

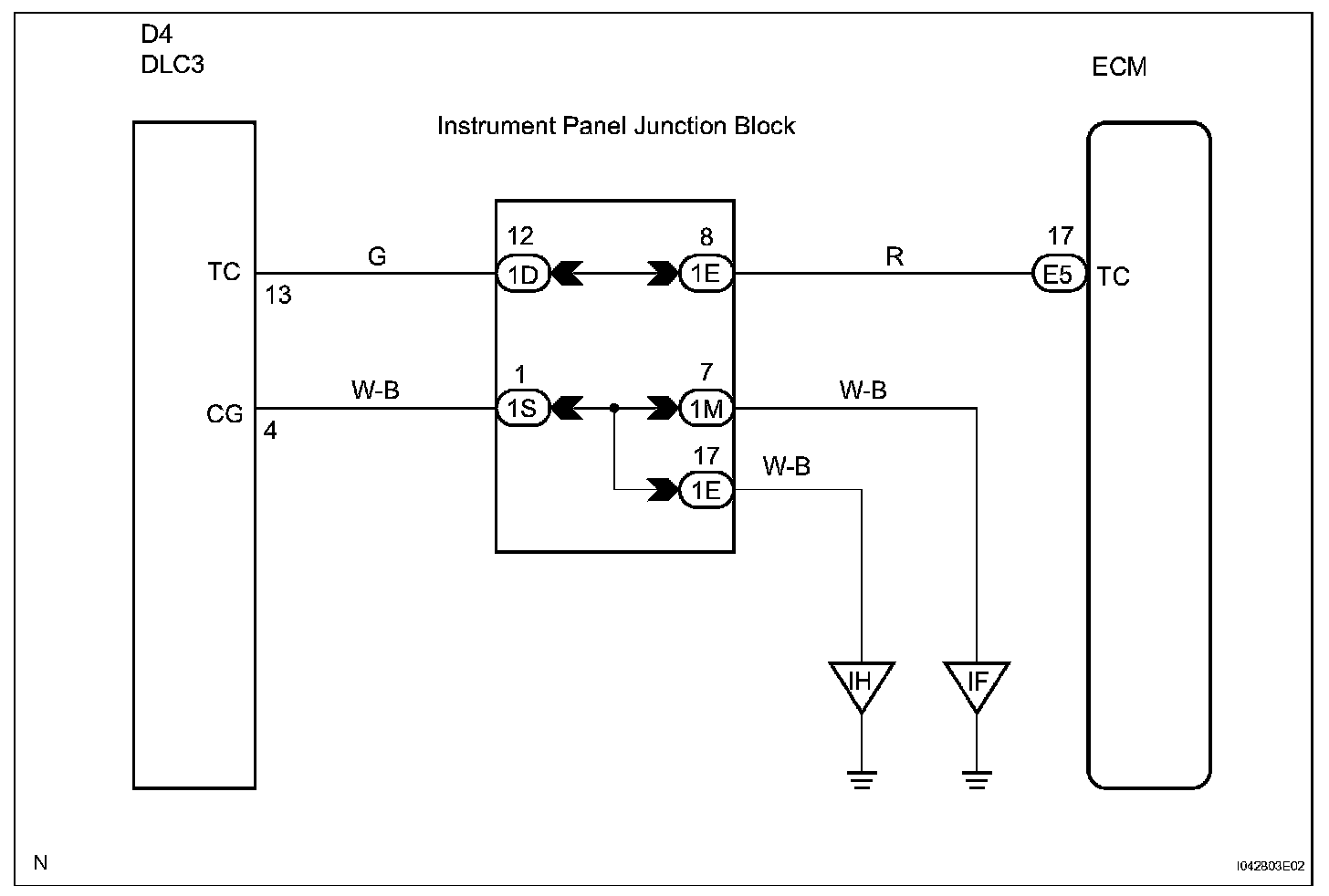

Wiring Diagram:
HINT: When a particular warning light stays blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.
INSPECTION PROCEDURE

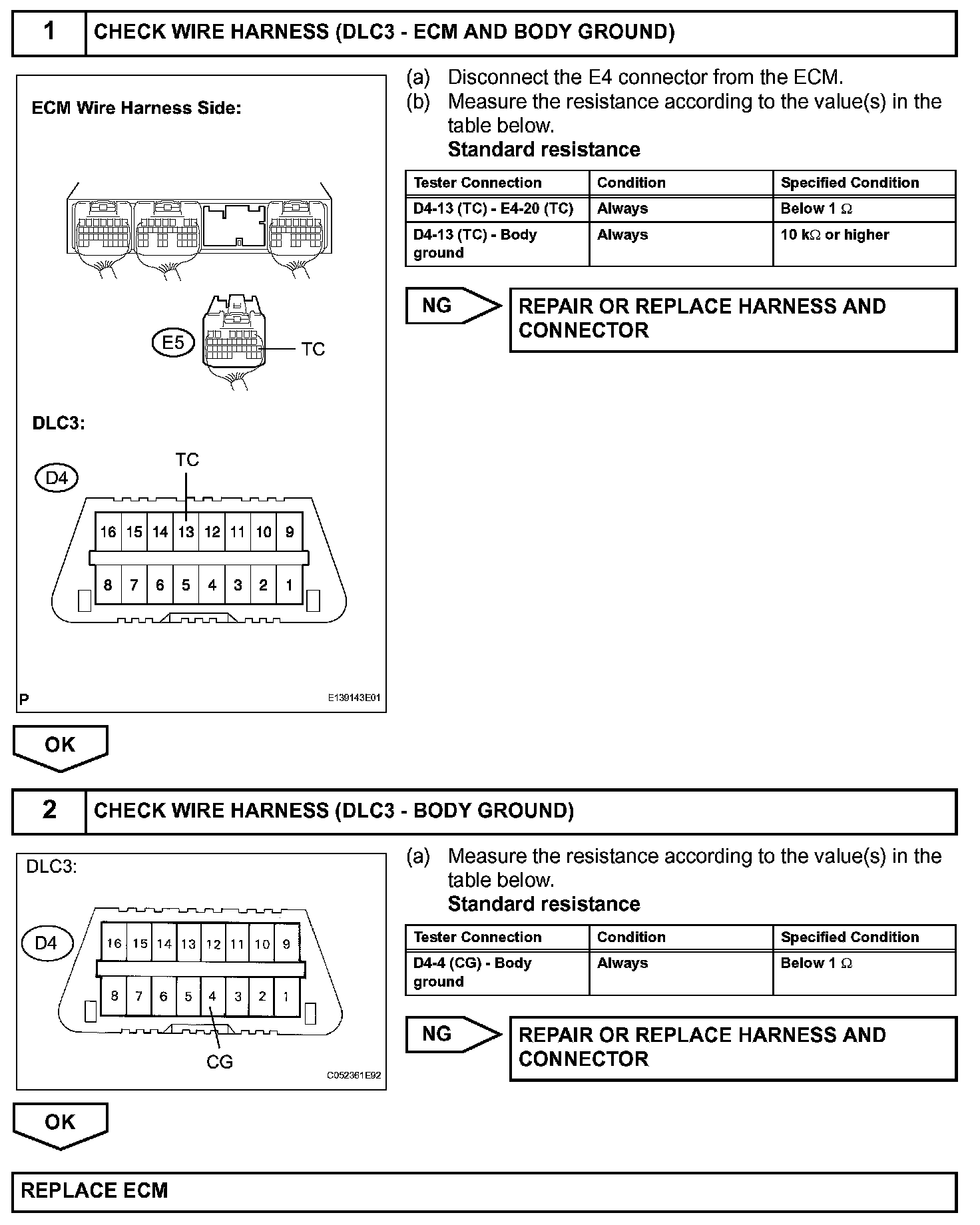

Step 1-2:
