Cruise Main Indicator Light Circuit

Cruise Main Indicator Light Circuit

DESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.

Wiring Diagram:





INSPECTION PROCEDURE

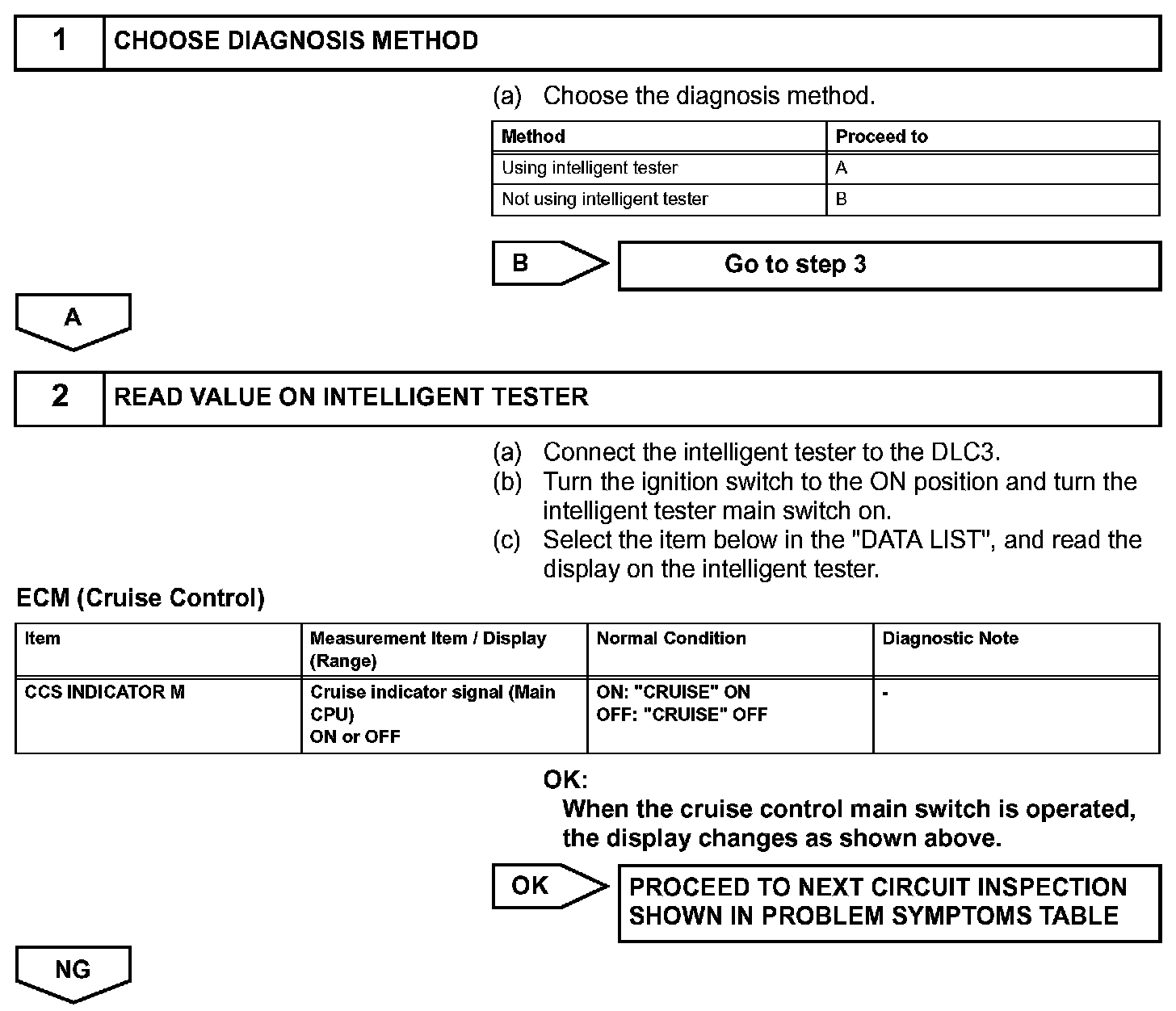

Step 1-2:

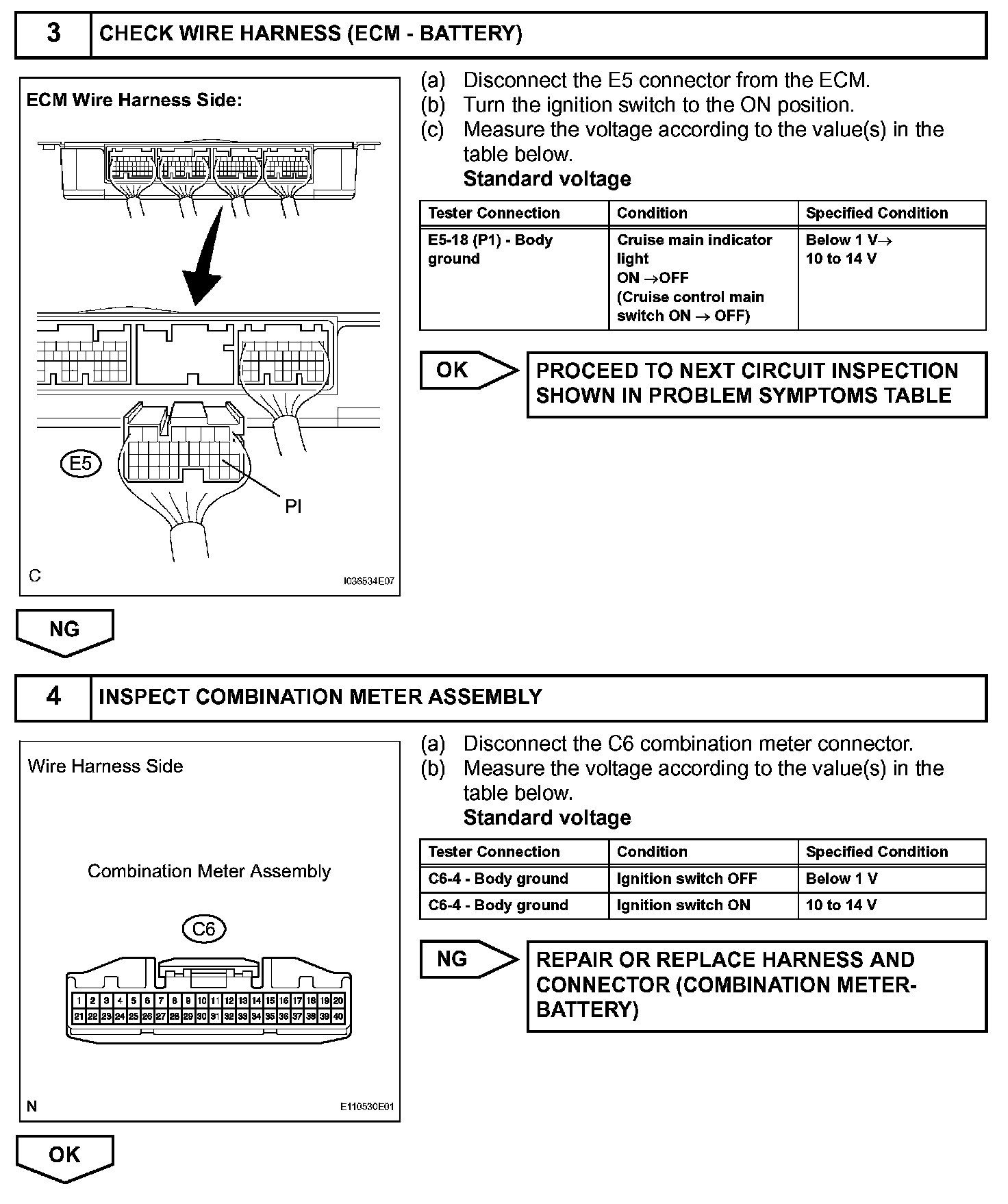

Step 3-4:

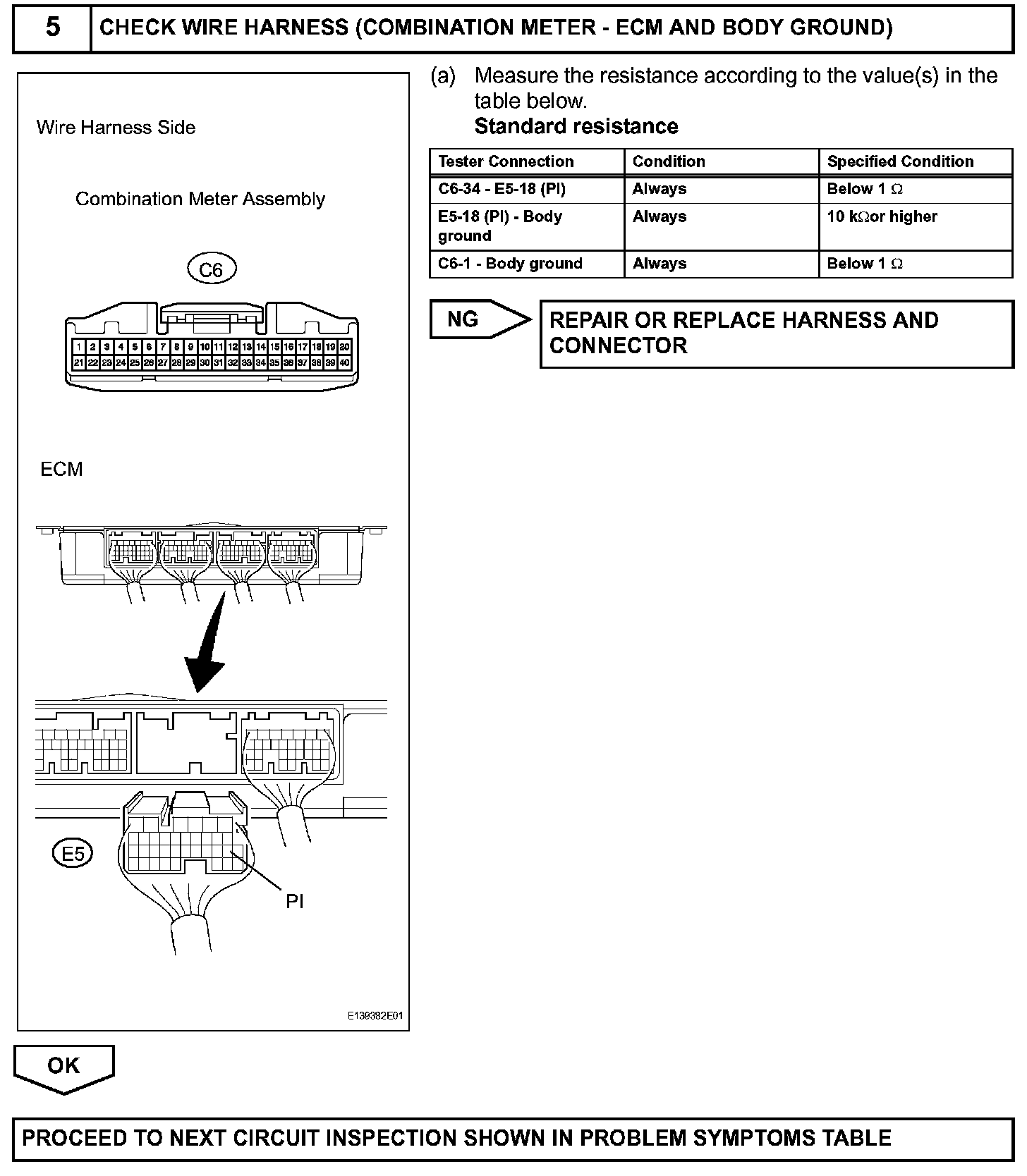

Step 5:
