Cruise Control Switch Circuit
Cruise Control Switch CircuitDESCRIPTION
The cruise control main switch operates seven functions: SET, '-' (COAST), TAP-DOWN, RESUME, '+' (ACCEL), TAP-UP, and CANCEL. The SET, TAP-DOWN and COAST functions, and the RESUME, TAPUP and ACCEL functions are operated with the same switch. The cruise control main switch is an automatic return type switch which turns on only while operating it in each arrow direction and turns off after releasing it. The internal contact point of the cruise control main switch is turned on with the switch operation. Then the ECM reads the voltage that has been changed by the switch operation to control SET, '-' (COAST), RESUME, '-' (ACCEL) and CANCEL.

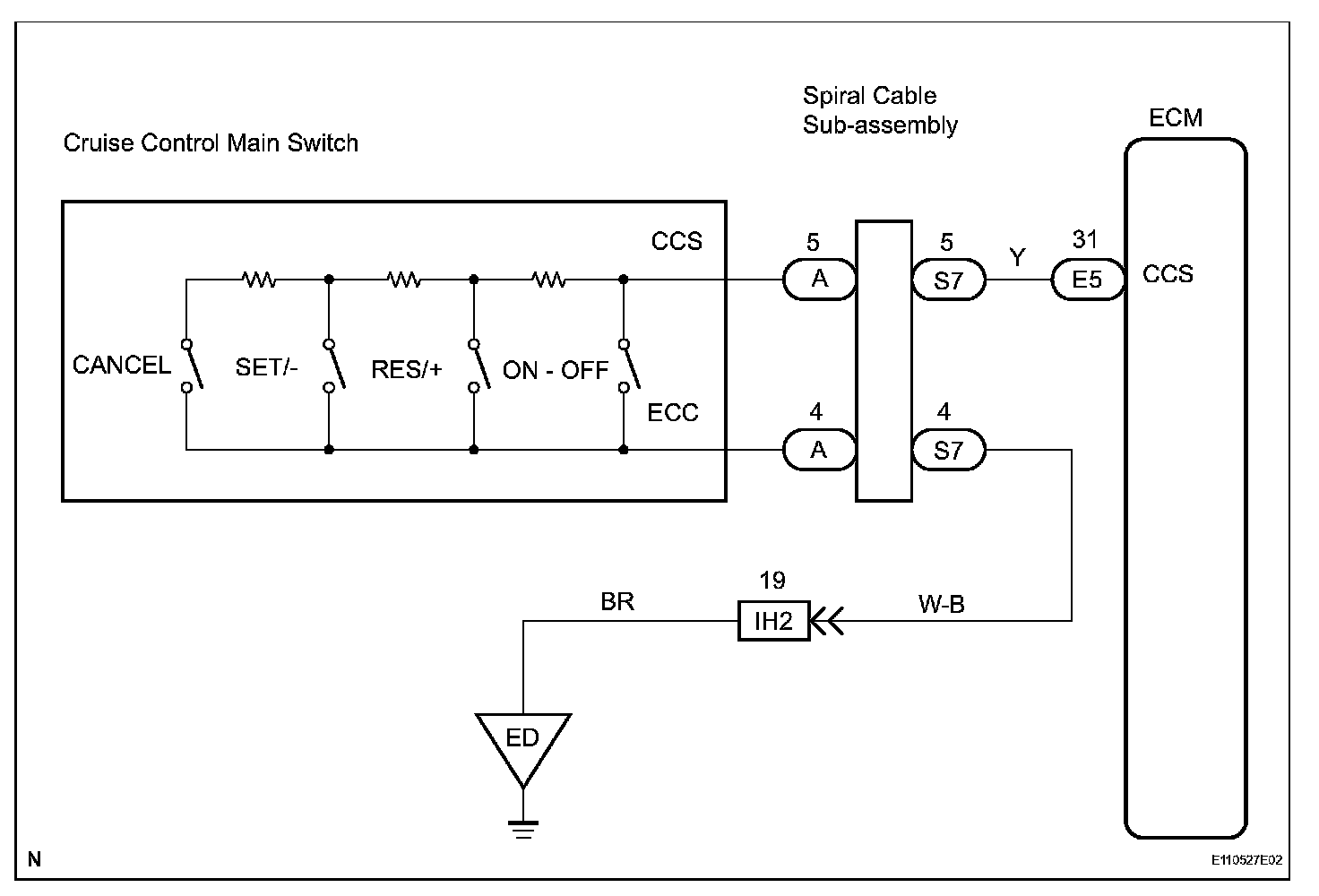

Wiring Diagram:

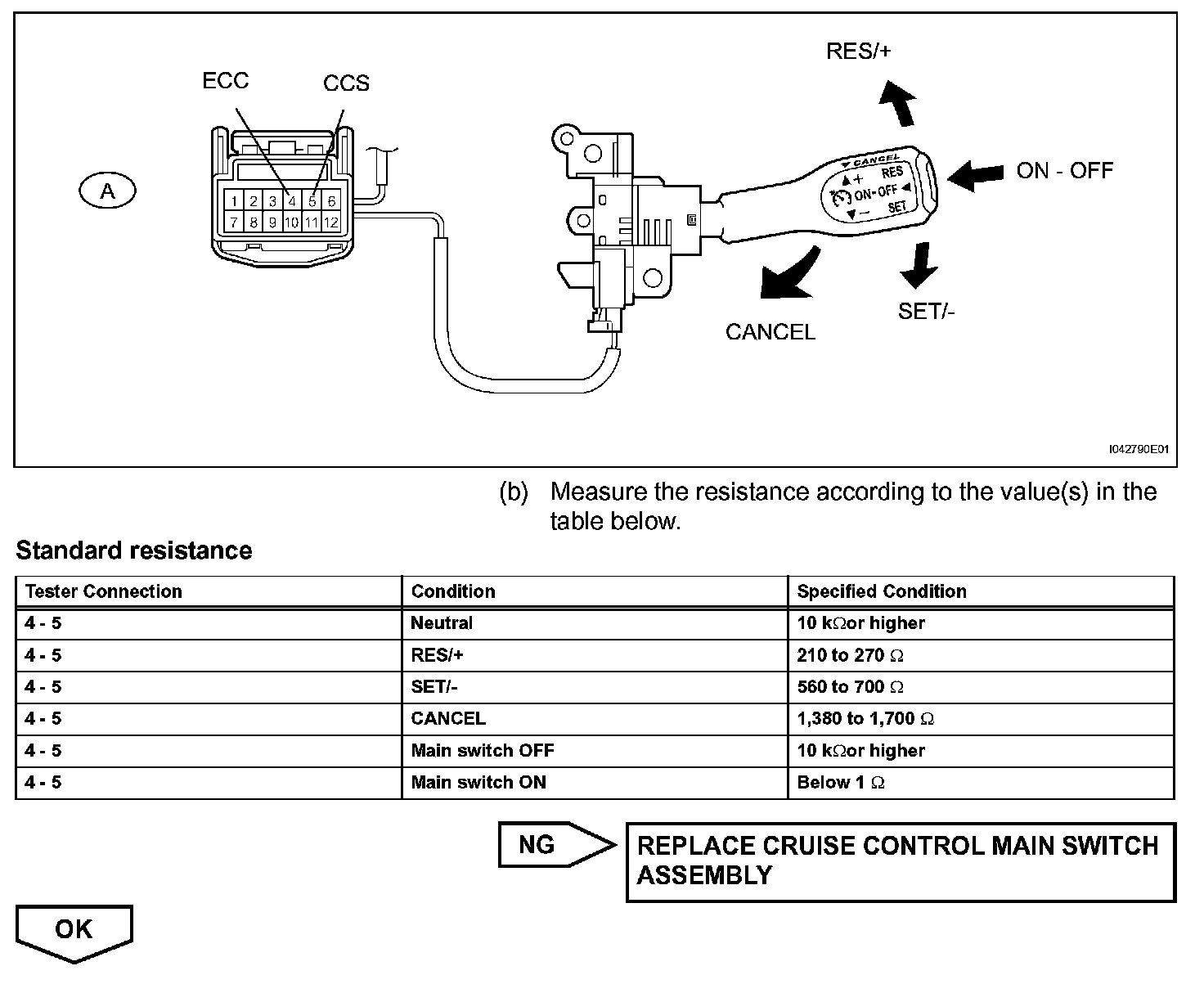

INSPECTION PROCEDURE

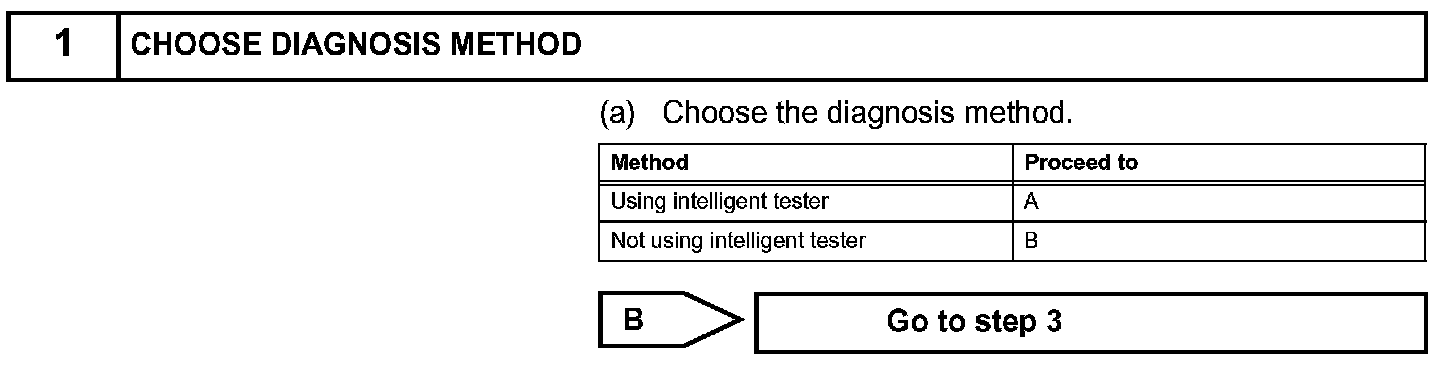

Step 1:

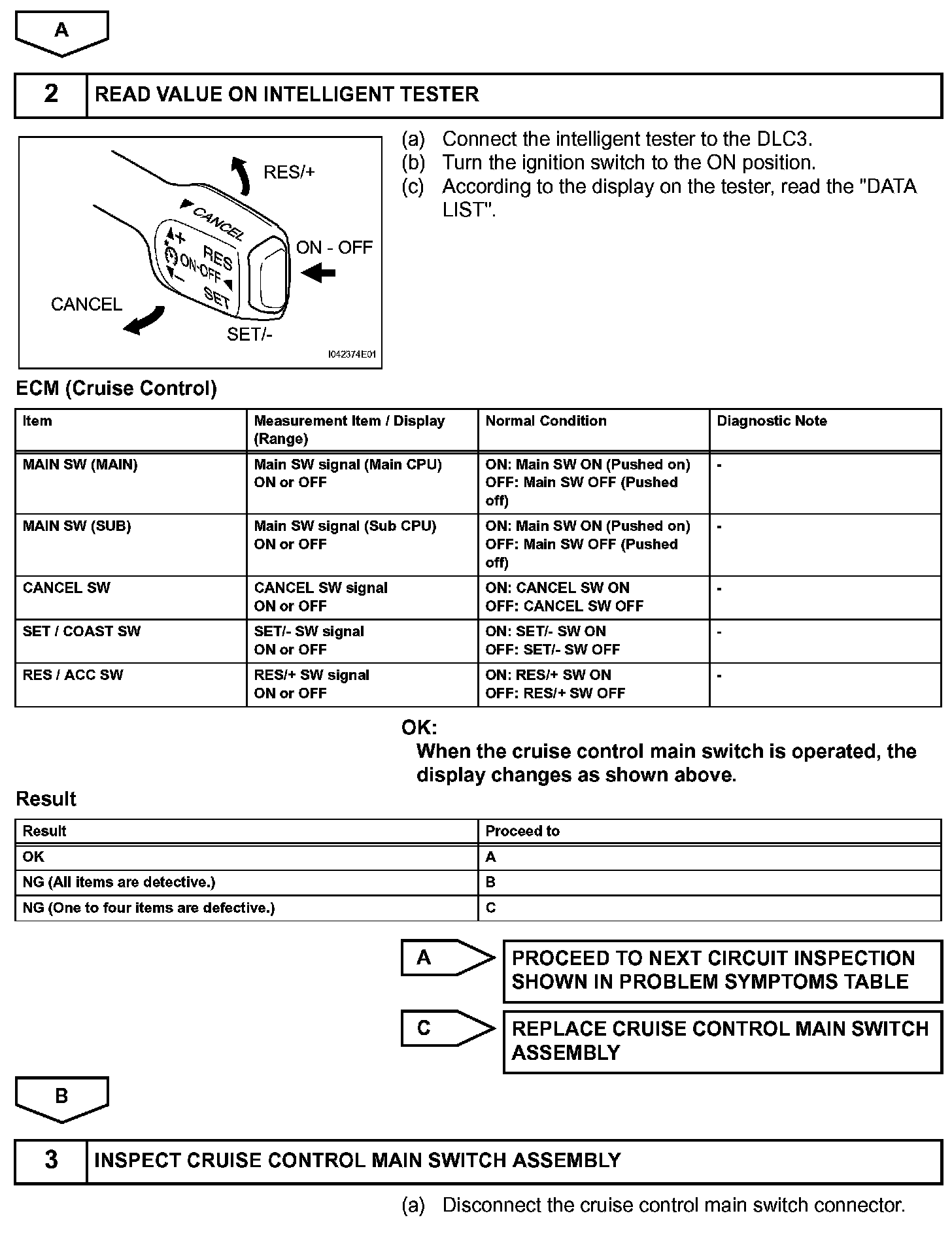

Step 1(Continued)-3:
Step 3(Continued):
Step 4:

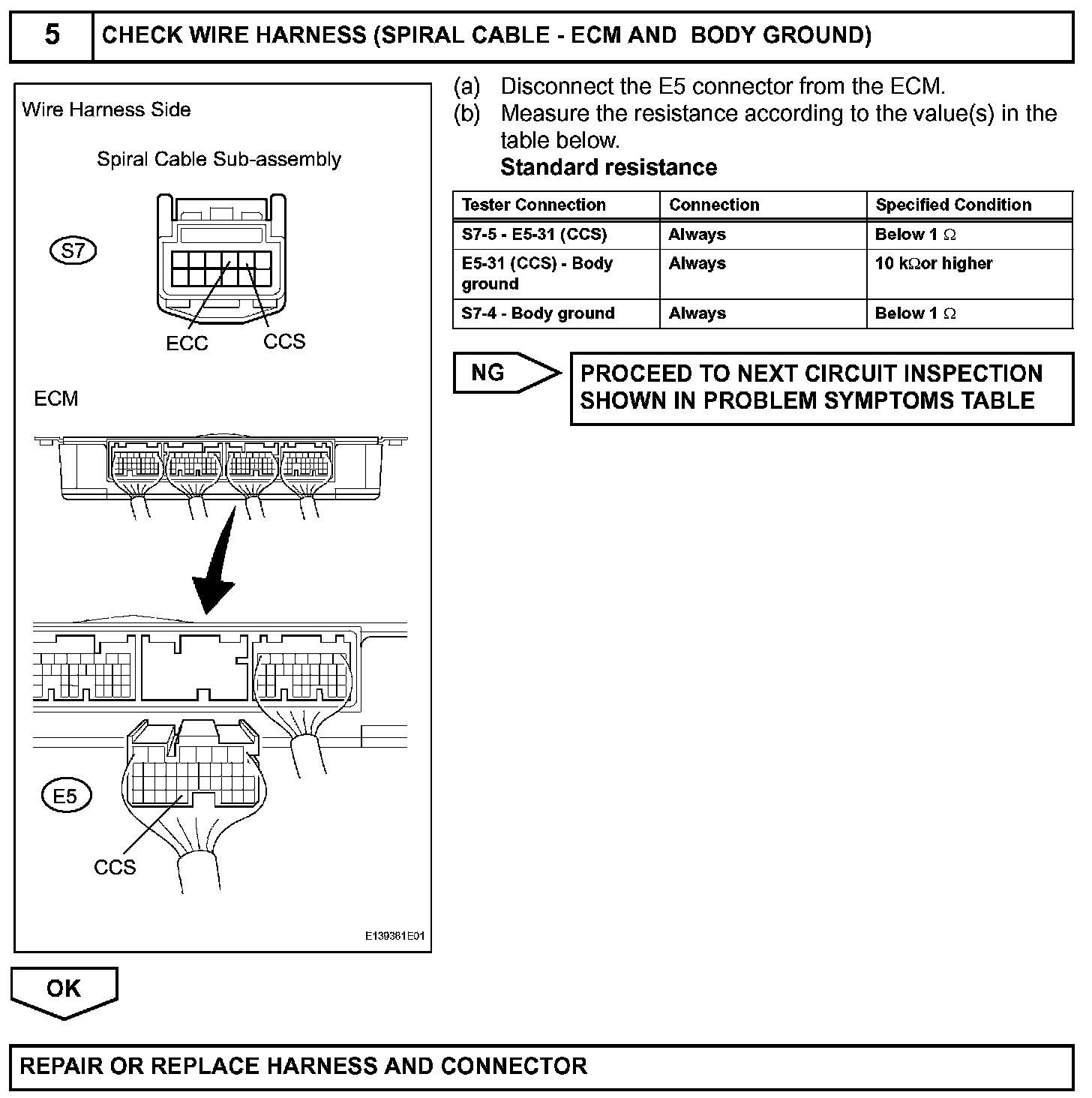

Step 5:
