Parking Brake Lever: Service and Repair

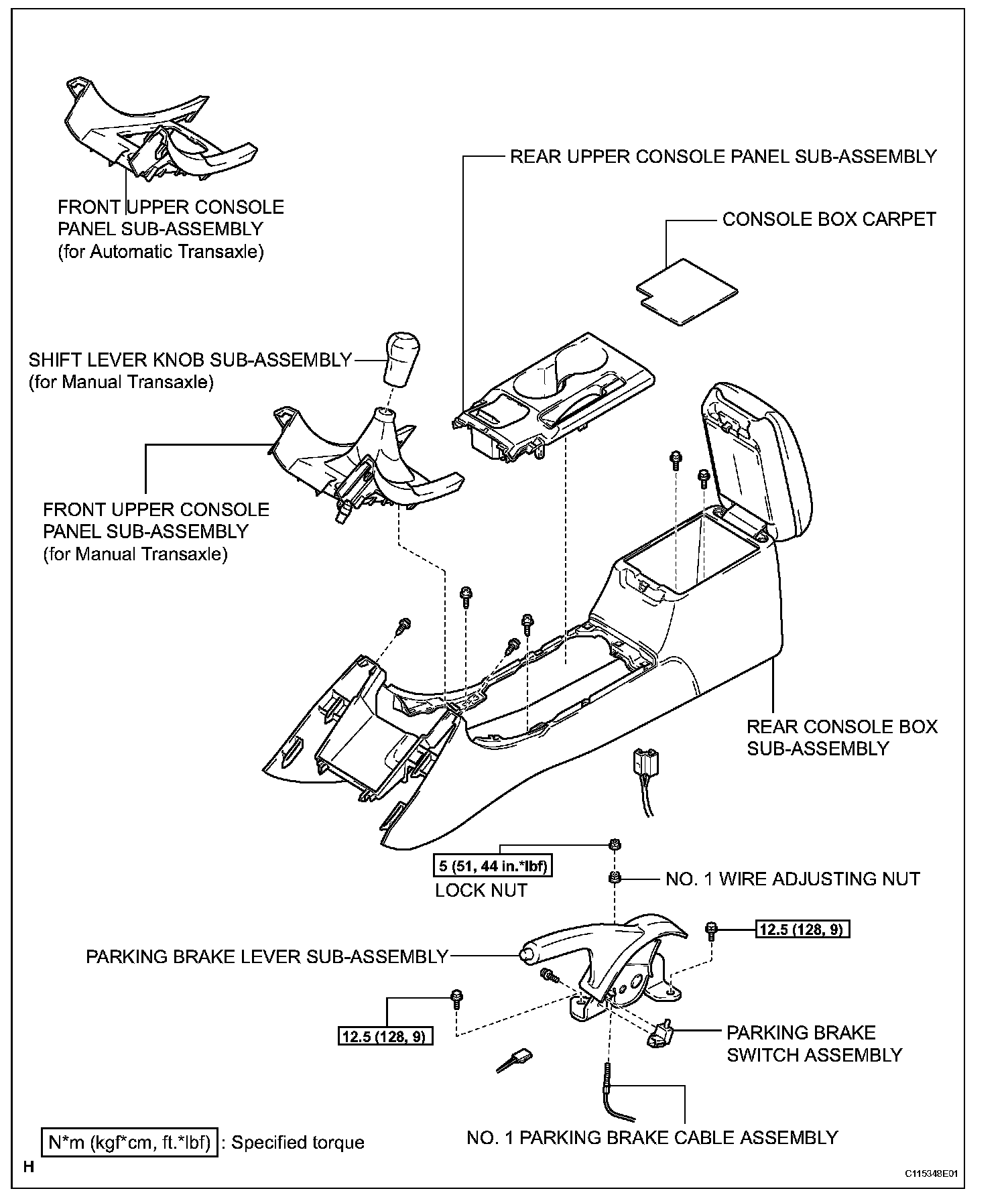

PARKING BRAKE LEVERCOMPONENTS:
REMOVAL
1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
2. REMOVE FRONT UPPER CONSOLE PANEL SUBASSEMBLY
3. REMOVE REAR UPPER CONSOLE PANEL SUBASSEMBLY
4. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
5. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
a) Disconnect the parking brake switch connector from the parking brake switch.
b) Remove the lock nut and No. 1 wire adjusting nut from the No. 1 parking brake cable.

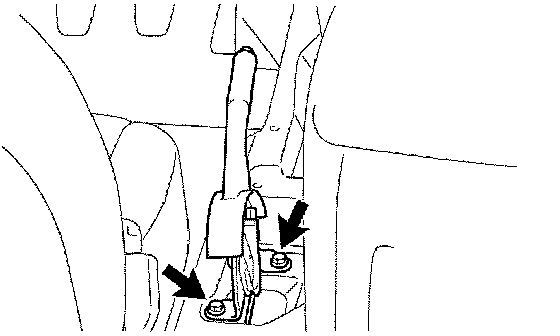

c) Remove the 2 bolts.

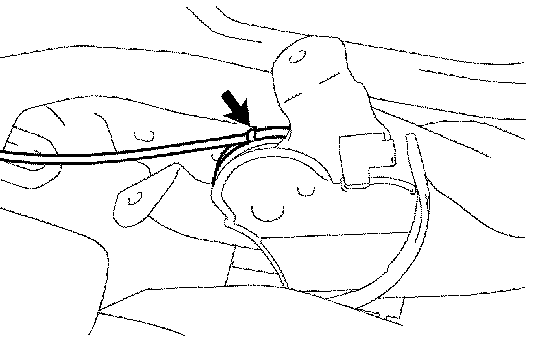

d) Using a screwdriver, raise the claw on the parking brake lever, and remove the No. 1 parking brake cable from the parking brake lever.
e) Remove the parking brake lever from the body.
6. REMOVE PARKING BRAKE SWITCH ASSEMBLY
a) Remove the screw and parking brake switch.
INSTALLATION
1. INSTALL PARKING BRAKE SWITCH ASSEMBLY
a) Install the parking brake switch to the parking brake lever with the screw.
2. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY
a) Install the No. 1 parking brake cable to the parking brake lever, and temporarily tighten the No. 1 wire adjusting nut and lock nut.

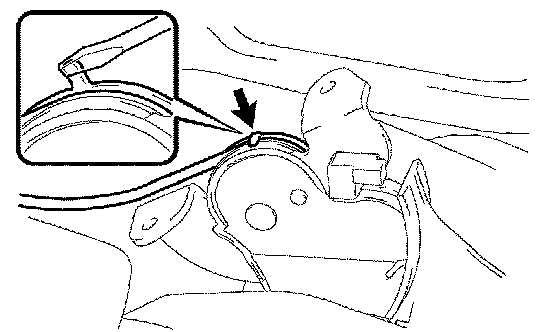

b) Using a screwdriver, fix the No. 1 parking brake cable to the claw.

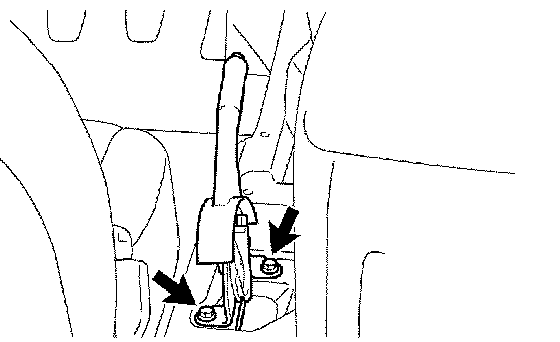

c) Install the parking brake lever with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
d) Connect the parking brake switch connector to the parking brake switch.
3. CHECK PARKING BRAKE LEVER TRAVEL
4. ADJUST PARKING BRAKE LEVER TRAVEL
5. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
6. INSTALL REAR UPPER CONSOLE PANEL SUBASSEMBLY
7. INSTALL FRONT UPPER CONSOLE PANEL SUBASSEMBLY
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
