BRAKE MASTER CYLINDER

COMPONENTS:

COMPONENTS:

REMOVAL
1. DRAIN BRAKE FLUID

NOTICE: Wash off brake fluid immediately if it comes in contact with any painted surface.

2. REMOVE FRONT WIPER ARM HEAD CAP
3. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
4. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
5. REMOVE HOOD TO COWL TOP SEAL
6. REMOVE COWL TOP VENTILATOR LOUVER LH
7. REMOVE WINDSHIELD WIPER MOTOR AND LINK
8. REMOVE OUTER COWL TOP PANEL SUBASSEMBLY
a) Remove the 7 bolts and outer cowl top panel.
9. REMOVE NO. 1 COWL WATER EXTRACT HOSE
a) Remove the clip and No. 1 cowl water extract hose.
10. REMOVE LOWER COWL BODY MOUNTING BRACKET LH
a) Remove a bolt and lower cowl body mounting bracket LH.
11. REMOVE AIR CLEANER CAP SUB-ASSEMBLY





12. REMOVE BRAKE MASTER CYLINDER SUBASSEMBLY

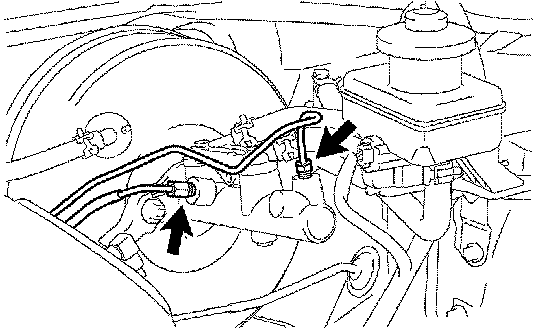

a) Using SST, disconnect the 2 brake tubes from the master cylinder.
SST 09023-00101





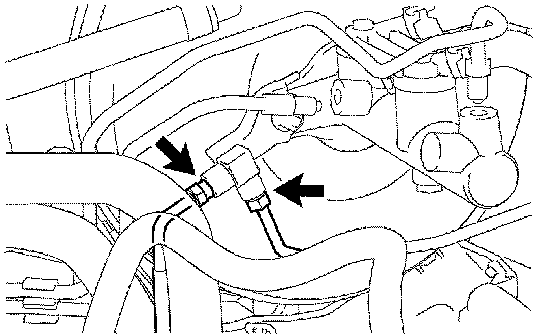

b) Using SST, disconnect the 2 brake tubes from the No. 1 way.
SST 09023-00101

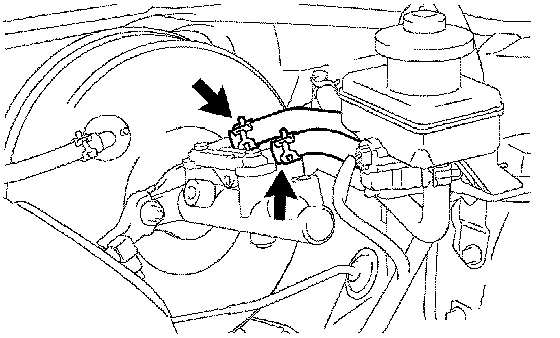

c) Remove the clips and disconnect the 2 reservoir tubes from the master cylinder.

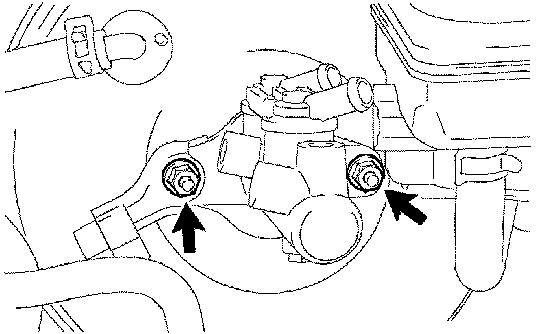

d) Remove the 2 nuts, and pull out the master cylinder and No. 1 way.
