Disassembly

FRONT BRAKE

COMPONENTS:

COMPONENTS:

DISASSEMBLY





HINT:
^ Use the same procedures for the LH side and RH side.
^ The procedures listed are for the LH side.

1. REMOVE CYLINDER BOOT

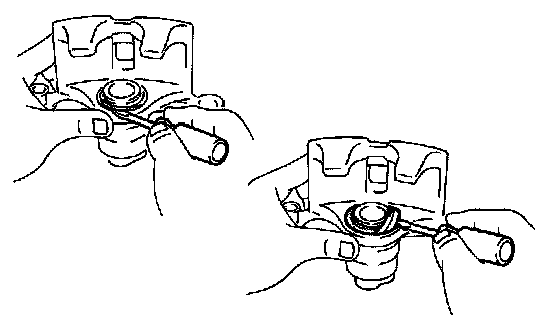

a) Using a screwdriver, pry out the set ring and cylinder boot.

NOTICE: Be careful not to damage the brake piston and cylinder.





2. REMOVE FRONT DISC BRAKE PISTON

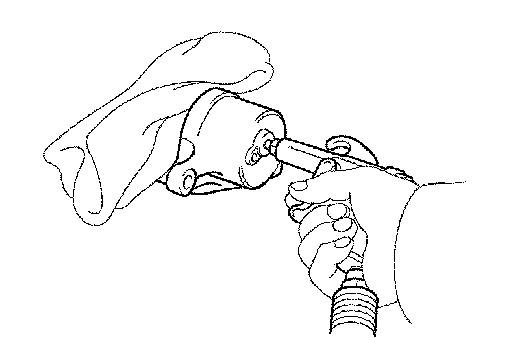

a) Place a piece of cloth or equivalent between the piston and brake cylinder.
b) Use compressed air to remove the piston from the brake cylinder.

CAUTION: Do not place your finger in front of the piston when using compressed air.

NOTICE: Be careful not to spatter the brake fluid.

3. REMOVE PISTON SEAL
a) Using a screwdriver, pry out the seal from the brake cylinder.

NOTICE: Be careful not to damage the inner cylinder and cylinder groove.

4. REMOVE FRONT DISC BRAKE BLEEDER PLUG
