Data List

READ DATA LIST

HINT: According to the DATA LIST displayed on the intelligent tester, you can read the value and status of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first stop of troubleshooting is one of the methods to shorten labor time.

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch to the ON position.

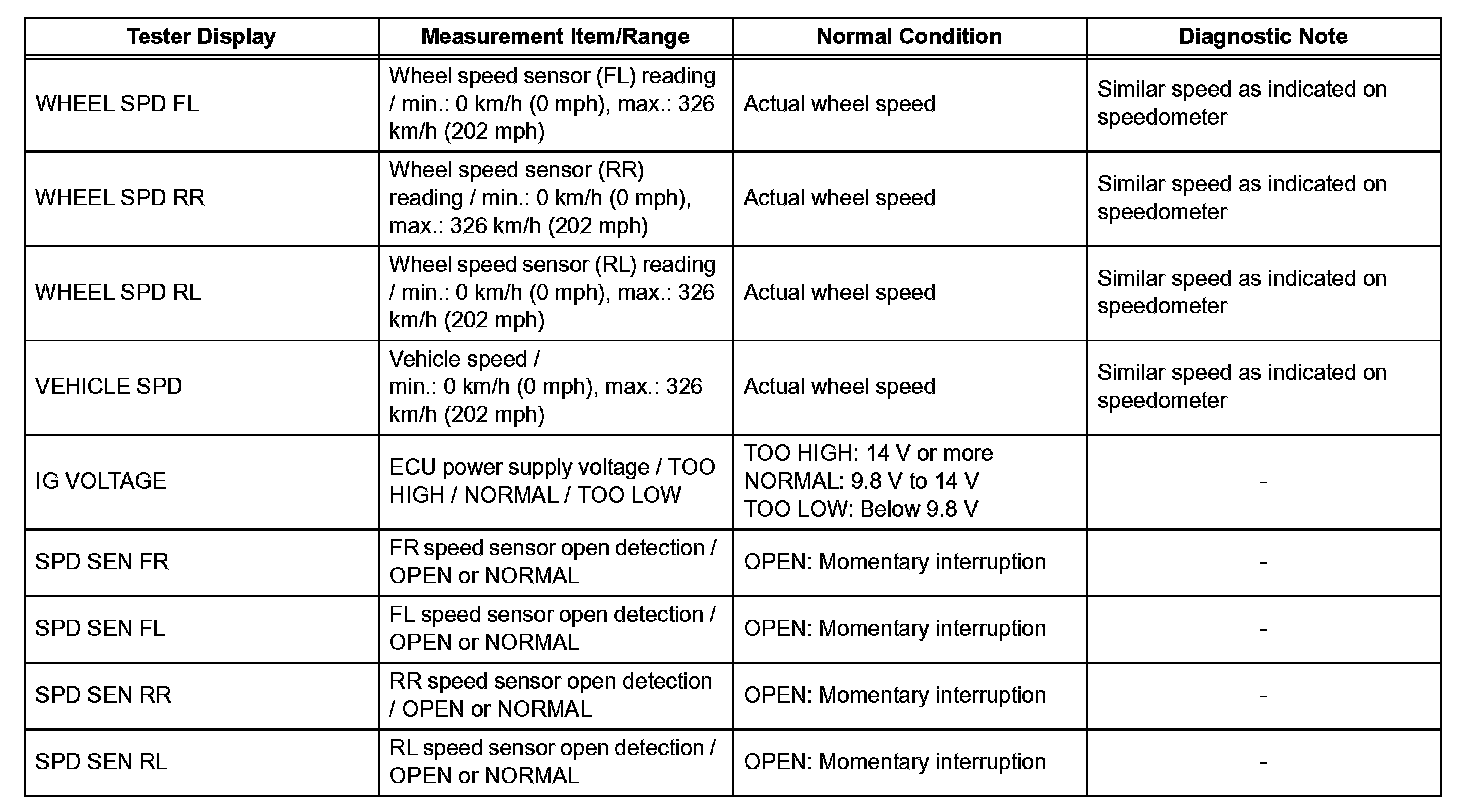

Part 1:

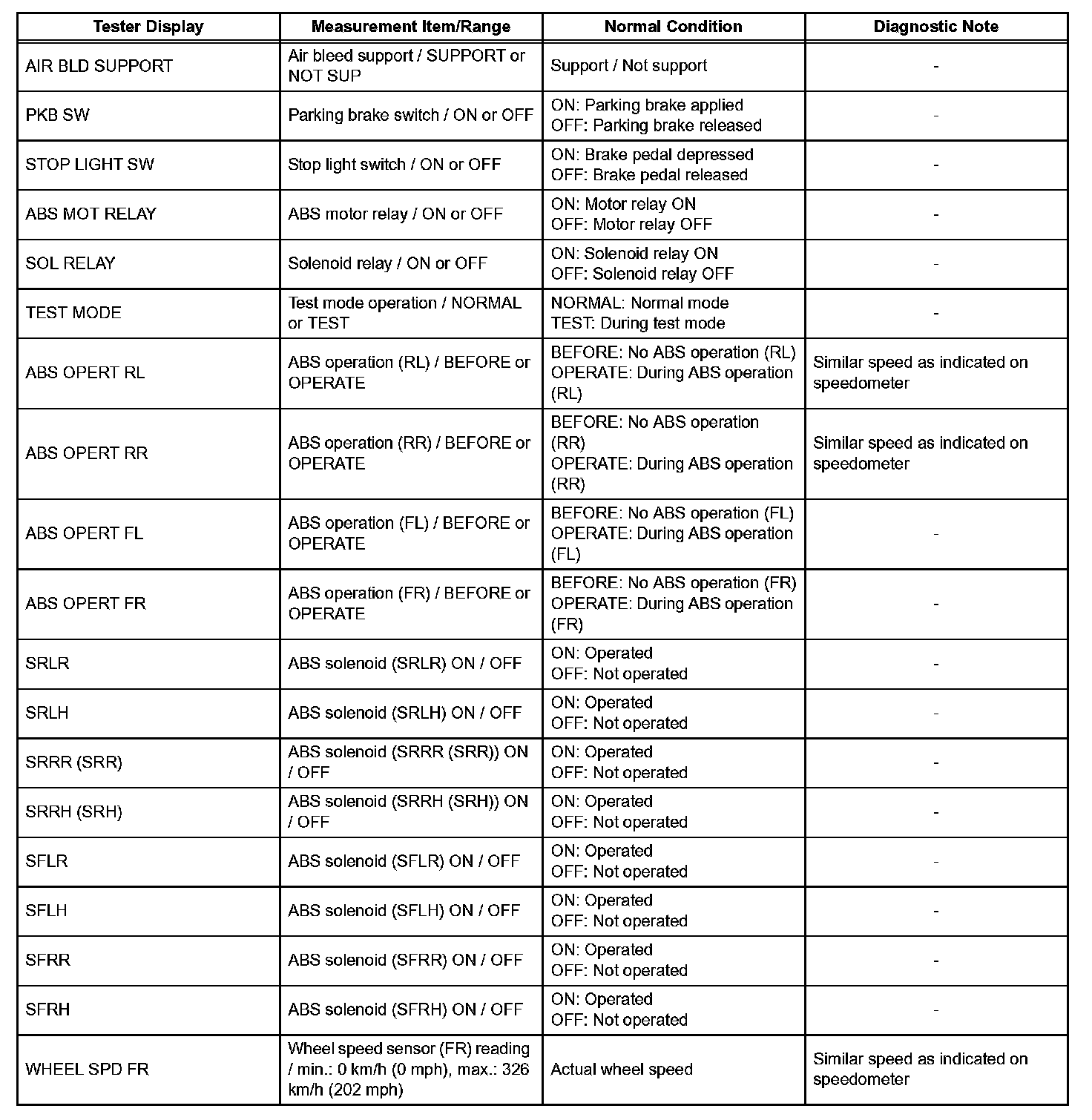

Part 2:




c. From the display on the tester, read the DATA LIST.
