Without Scan Tool

CHECK DTC (USING SST CHECK WIRE)




Check DTCs

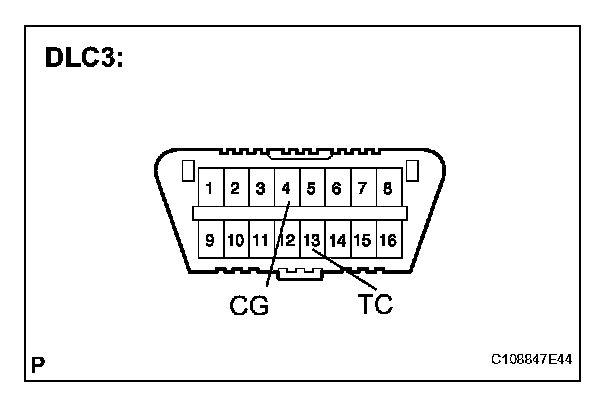

1. Using SST, connect terminals 13 (TC) and the 4 (CG) of the DLC3.

SST 09843-18040

2. Turn the ignition switch to the ON position.

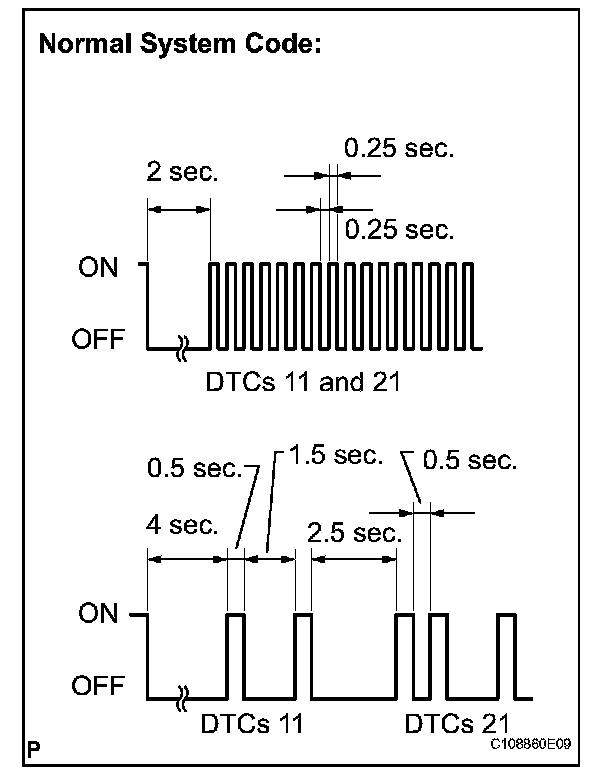

3. Read the DTC from the ABS warning light on the combination meter assembly.

HINT: If no code appears, inspect the TC and CG terminal circuit or ABS warning light circuit.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed first.

END OF DTC CHECK

a. Turn the ignition switch to the ON position.
b. Check that the ABS warning light goes off in about 3 seconds.
