Without Scan Tool

CLEAR DTC (USING SST CHECK WIRE)




Clear the DTCs

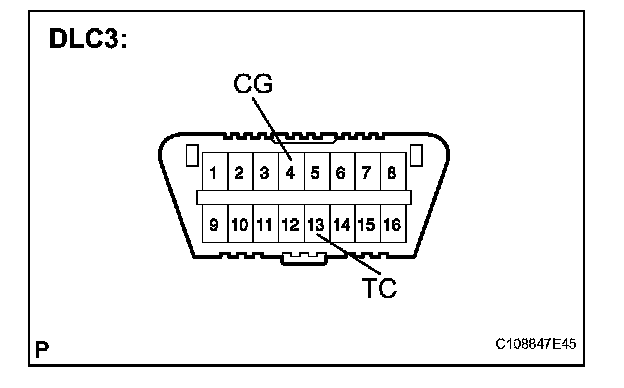

1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

2. Turn the ignition switch to the ON position.

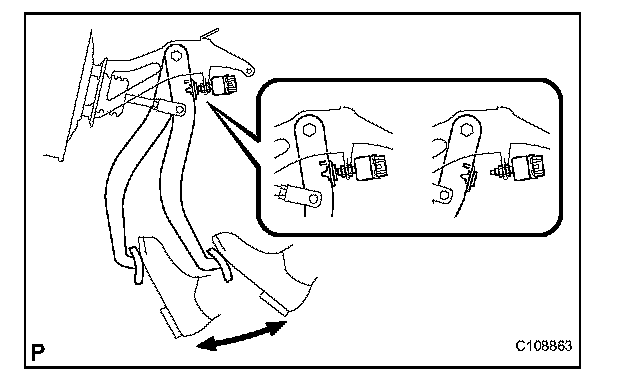

3. Clear the DTCs stored in ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the warning light indicates the normal system code.
5. Remove the SST from the terminals of the DLC3.

HINT: Clearing the DTCs cannot be performed by removing the battery cable or ECU-IG fuse.

END OF DTC CLEAR

a. Turn the ignition switch to the ON position.
b. Check that the ABS warning light goes off in about 3 seconds.
